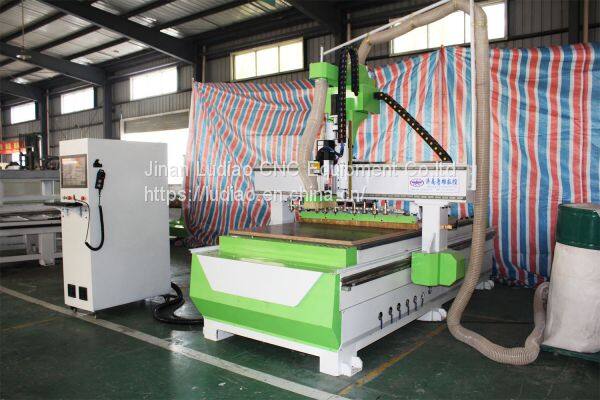

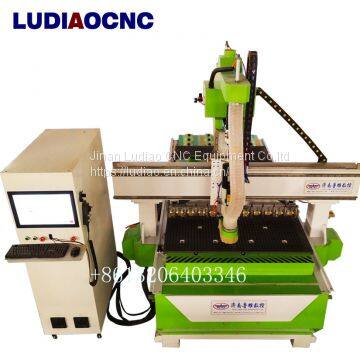

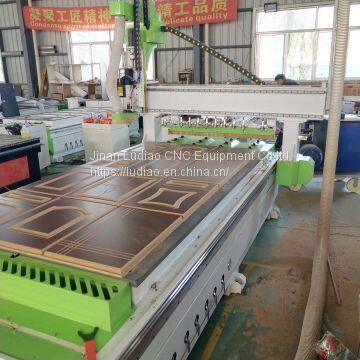

China experienced factory Automatic center CNC wood router machine for wood door cabinet making
1.Application of CNC router

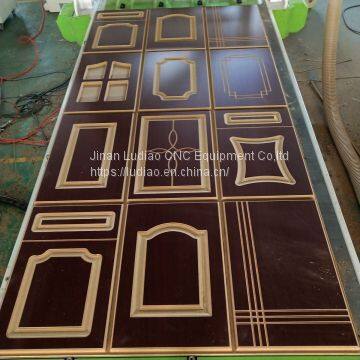

Applies to furniture, home improvement, paint, doors, carpentry, decoration, wooden crafts, cabinet doors, screens, three-dimensional wave board, advertising, shell processing of precision instruments, musical instruments, casket and other industries.
2.Applicable material
Wood, plastic,plywood,lidwood.acrylic.aluminum .copper etc
4.Specification of the wood router
Model | LD-1325 ATC cnc router |
Working area | 1300*2500mm |
Table size | 1540*3140mm |
Z-axis working area | 300mm |
Resolution | +/- 0.01mm |
Max. Cutting Speed | 70m/min |
X- and Y- axis transmission | Germany Herion Rack and Pinion |
Z-axis transmission | Germany TBI Ball Screw |
Guide rail | Taiwan Hiwin 25mm Linear rail |
Spindle | China HQD 9.0KW, air-cooling |
Working Mode | Taiwan Delta 750W Servo motor |
XY Transmission | Imported Rack |
Z transmission | Taiwan TBI Ball screw |
Reudcer | Japan Shimpo |

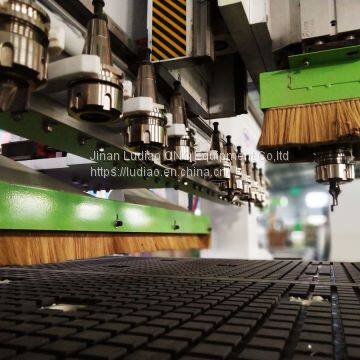

Auto Tool Change | Yes, Linear type |
Dust-collection function | Yes |
Working table | T slot Vacuum table 6 And T clamp combination
|
Air pump | 7.5KW |
Dust collector | 4KW,double bags |
Invert-er | HPMANT 11KW |
Software | Artcam |
Command | G code, HPGL,U00, mmg, plt |
Lathe Structure | Seamless welded steel, trapezoidal stable and strong lathe bed |
Auto Lubrication | Yes |

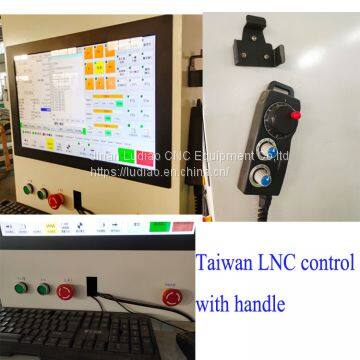

Operating System | Taiwan LNC Control System |
Standard power | 3P 380V,50Hz |
Accessories | 1.Cutting tools and knife clip 2.Air pump 7.5KW 3.Dust collector 4.Software 5.Spanner 6.Manual 7.Tool collimator 8.Tool handle 9.Rotary(Optional)
|
Package | Plywood case |
Warranty for the spindle | Half a year |
Warranty for the machine | One year |
Delivery time | 10 working days |
Package | Wooden case |
Packing size | 3.6*2*2.21m |
About our Company
Our factory Jinan Ludiao CNC Equipment Co.,ltd
With 10 years(company registered and build in 2010) manufacturer experience in Jinan Shandong,China,7 years exporting experience,6000㎡ work factory,30 experienced assembly worker ,5 professional technician engineer,20 sales for both oversea and local market,We are aim for Quality first ,Reputation above all ,Global service !
