High Speed Automatic Linear Tool Change ATC CNC Wood Router Machine 2030 for Wood Furniture Door Cabinet Making

High Speed Automatic Linear Tool Change ATC CNC Wood Router Machine 2030 for Wood Furniture Door Cabinet Making thumbnail-1
High Speed Automatic Linear Tool Change ATC CNC Wood Router Machine 2030 for Wood Furniture Door Cabinet Making thumbnail-2
High Speed Automatic Linear Tool Change ATC CNC Wood Router Machine 2030 for Wood Furniture Door Cabinet Making thumbnail-3
High Speed Automatic Linear Tool Change ATC CNC Wood Router Machine 2030 for Wood Furniture Door Cabinet Making thumbnail-4
High Speed Automatic Linear Tool Change ATC CNC Wood Router Machine 2030 for Wood Furniture Door Cabinet Making thumbnail-5
High Speed Automatic Linear Tool Change ATC CNC Wood Router Machine 2030 for Wood Furniture Door Cabinet Making photo-1
High Speed Automatic Linear Tool Change ATC CNC Wood Router Machine 2030 for Wood Furniture Door Cabinet Making photo-2

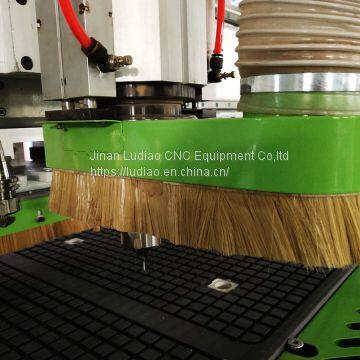

High Speed Automatic Linear Tool Change ATC CNC Wood Router Machine 2030 for Wood Furniture Door Cabinet Making photo-3

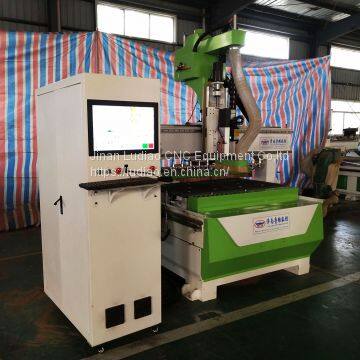

High Speed Automatic Linear Tool Change ATC CNC Wood Router Machine 2030 for Wood Furniture Door Cabinet Making photo-4
High Speed Automatic Linear Tool Change ATC CNC Wood Router Machine 2030 for Wood Furniture Door Cabinet Making photo-5
US$ 10850 - 15000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
ludiao
Place of Origin:
China
Model Number:
LD1325
Contact Supplier Request Quote Chat Now
Jinan Ludiao CNC Equipment Co,ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
10 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ludiao
Place of Origin China
Model Number LD1325
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 year
Weight 1000kg
Dimension(L*W*H) 1300*2500*200mm
Voltage 380V
Condition New
Power(W) 9KW
CNC or Not CNC

High speed automatic  Linear tool change ATC CNC wood router machine for wood furniture door cabinet making

1.Application of CNC router



Applies to furniture, home improvement, paint, doors, carpentry, decoration, wooden crafts, cabinet doors, screens, three-dimensional wave board, advertising, shell processing of precision instruments, musical instruments, casket and other industries.

2.Applicable material

   Wood, plastic,plywood,lidwood.acrylic.aluminum .copper etc

4.Specification of the wood router


Model

LD-1325 ATC cnc router

Working area

1300*2500mm

Table size

1540*3140mm

Z-axis working area

300mm

Resolution

+/- 0.01mm

Max. Cutting Speed

70m/min

X- and Y- axis transmission

Germany Herion Rack and Pinion

Z-axis transmission

Germany TBI Ball Screw

Guide rail

Taiwan Hiwin 25mm Linear rail

Spindle

China HQD 9.0KW, air-cooling

Working Mode

Taiwan Delta 750W Servo motor

XY Transmission

Imported Rack

Z transmission

Taiwan TBI Ball screw

Reudcer

Japan Shimpo

Auto Tool Change

Yes, Linear type

Dust-collection function

Yes

Working table

T slot Vacuum table 6

And T clamp

combination



Air pump

7.5KW

Dust collector

4KW,double bags

Invert-er

HPMANT 11KW

Software

Artcam

Command

G code, HPGL,U00, mmg, plt

Lathe Structure

Seamless welded steel, trapezoidal stable and strong lathe bed

Auto Lubrication

Yes

Operating System

Taiwan LNC Control System

Standard power

3P 380V,50Hz

Accessories

1.Cutting tools and knife clip

2.Air pump 7.5KW

3.Dust collector

4.Software

5.Spanner

6.Manual

7.Tool collimator

8.Tool handle

9.Rotary(Optional)



Package

Plywood case

Warranty for the spindle

Half a year

Warranty for the machine

One year

Delivery time

10 working days

Package

Wooden case

Packing size

3.6*2*2.21m


About our Company

Our factory Jinan Ludiao CNC Equipment Co.,ltd



With 10 years(company registered and build in 2010) manufacturer experience in Jinan Shandong,China,7 years exporting experience,6000㎡ work factory,30 experienced assembly worker ,5 professional technician engineer,20 sales for both oversea and local market,We are aim for Quality first ,Reputation above all ,Global service !
