China H36 H46 Small High Precision CNC Horizontal Lathe Machine Price for Sale
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Port of Shipment:
Shenzhen
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
H36 H46 Gang Type Tool Toolpost CNC Lathe Machine Flat Bed High PrecisionNegotiableMOQ: 1 -
Flat Bed hi Precision H36 H46 Auto Torno Cnc Lathe Machine With Linear GuidewayNegotiableMOQ: 1
-
CAK6180C High Precision Horizontal Auto Cnc Lathe Machine China Flat Bed Price for SaleNegotiableMOQ: 1
-
hi Precision Slant Bed Cnc Lathe Mill Live Tooling Milling Combo Turning Center Machine CK46D-8NegotiableMOQ: 1
-
Slant Bed With C Axis Live Tooling Auto Turning Center and Milling Cnc Lathe Machine CK46D-8NegotiableMOQ: 1

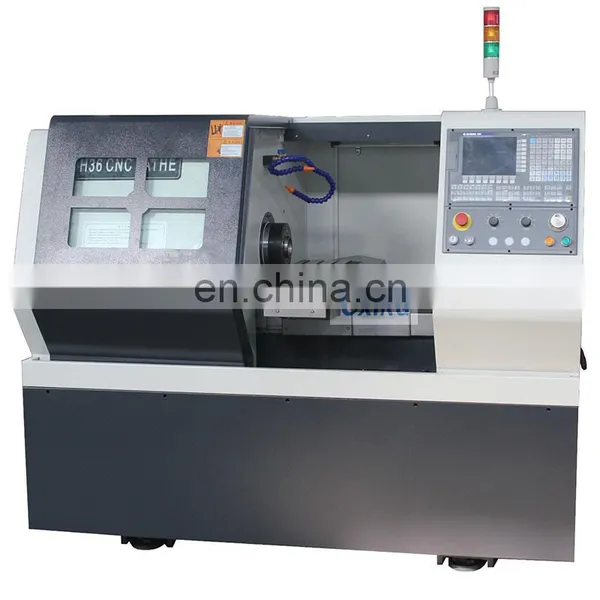

China H36 H46 small high precision CNC horizontal lathe machine price for sale
Machine specifications:
SPECIFICATIONS |
Units |
H36 |
H46 |
Swing over bed |
mm |
360 |
460 |
Swing over cross slide |
mm |
110 |
140 |
Distance between centers |
mm |
250 |
330 |
Spindle bore |
mm |
48 |
56 |
Spindle nose type |
- |
A2-5 |
A2-5 |
Spindle speed steps |
- |
Stepless |
Stepless |
Spindle speed range |
rpm |
2500(Optional:4000) |
3500 |
Turret/tool post |
- |
Gang type |
Gang type |
Tool size |
mm |
20 x 20 |
25 x 25 |
X axis travel |
mm |
340 |
360 |
Z axis travel |
mm |
250 |
330 |
X axis rapid traverse |
mm/min |
15000 |
15000 |
Z axis rapid traverse |
mm/min |
15000 |
15000 |
Main spindle motor |
kw |
4 |
5.5 |
Guide rail type |
- |
Linear rail |
Linear rail |
Machine weight |
kg |
1500 |
2200 |
Overall dimension |
mm |
2000x1400x1580 |
2300x1800x1600 |
Standard configuration:
Independent spindle;
Linear rail Taiwan;
Collet Chuck
Gang type tool post.
Linear rail Taiwan;
Collet Chuck
Gang type tool post.
Optional accessories:
GSK, Siemens, FANUC etc. controller;
Hydraulic chuck;
4/6 station electric toolpost.
4/6 station electric toolpost.

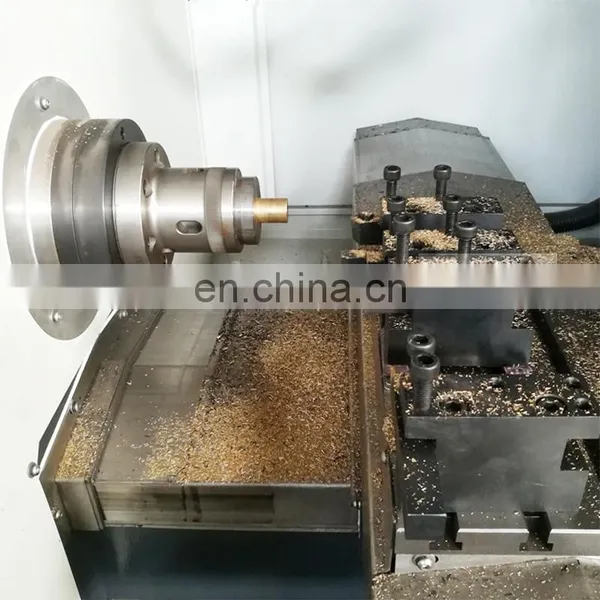

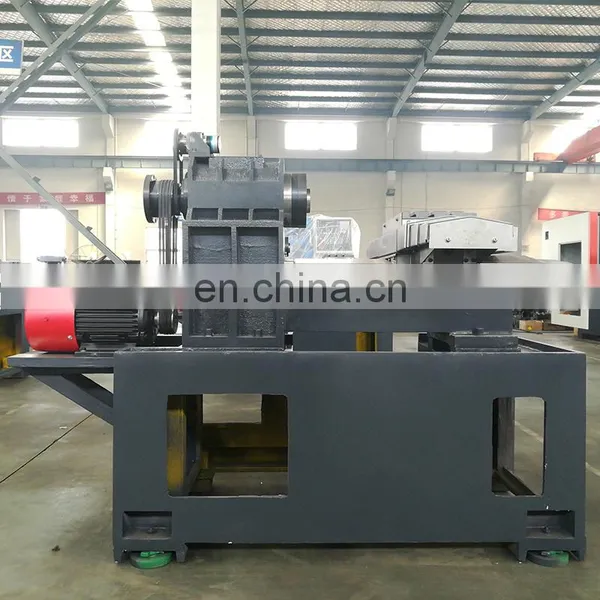

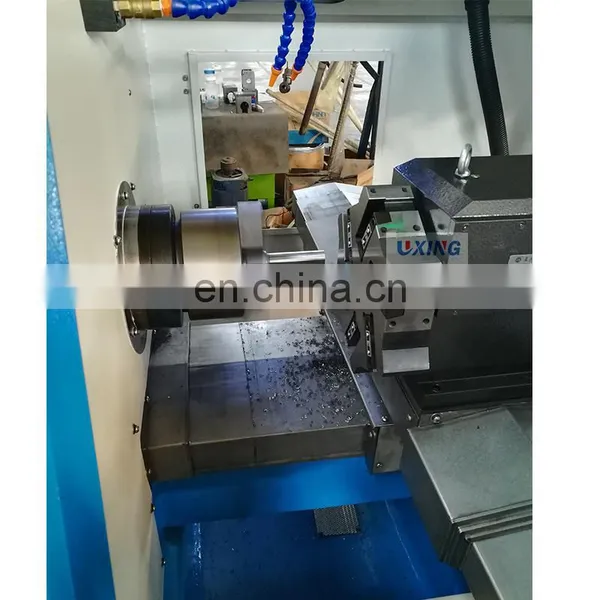

Details:
FAQ:
1:How can I choose the most suitable machines?
A: Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Shaper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client’s specifications requirements,it wouble be a little longer.
4.Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277599 China.
You are warmly welcomed to visit us.
5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
7: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
