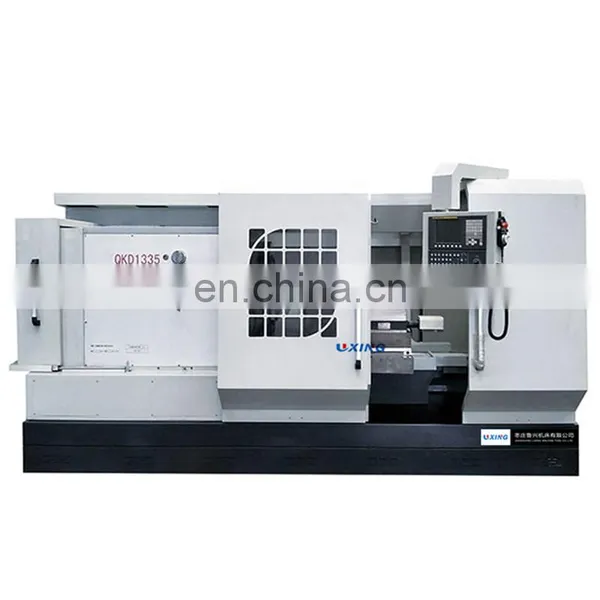

Heavy Duty Flat Bed Automatic Cnc Pipe Thread Threading Lathe Machine QK1313 for Pipes photo-3
Heavy Duty Flat Bed Automatic Cnc Pipe Thread Threading Lathe Machine QK1313 for Pipes photo-4
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Port of Shipment:
Shenzhen
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Contact Supplier Request Quote Chat Now
Shenzhen Ruicheng Technology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
heavy duty flat bed automatic cnc pipe thread threading lathe machine QK1313 for pipes

Introduction:

This series CNC pipe threading lathe is mainly designed for processing internal and external pipe threads including metric, inch, module DP and taper threads, as well as having all the common functions of normal CNC lathe such as processing the inner bore and end face of shafts and disks. This series lathe machine is widely used in industries including petroleum exploiting, minerals mining, chemical piping and geological prospecting, it is high-efficiency equipment in processing and repairing drilling pipe, drilling rod, thread coupling and so on.

Features:

•Big spindle bore and double chuck to ensure process big diameter pipe
•One-piece bed adopts high strength iron to ensure rigidity and precision
•Ultrasonic frequency quenched guide-ways ensure good wear-resistance
•Carriage and guide way contact surface use Turcite B to maintain accuracy
Specifications:
SPECIFICATION
Units
QK1313
QK1319
QK1322
Manual
Manual
Manual
Swing over bed
mm
630/800
630/800
630/800
Swing over cross slide
mm
340/520
340/520
340/520
Distance between centers
mm
1000/1500/3000
1000/1500/3000
1000/1500/3000
Pipe threading range
mm
30-126
50-193
50-220
Guideway width
mm
550
550
550
Max. load capacity
T
3
3
3
Spindle bore
mm
130
200
225
Spindle speed steps
-
VF. 3 steps
VF. 4 steps
VF. 4 steps
Spindle speed range
rpm
30-720
20-550
20-550
Chuck
mm
φ400 3-jaw manual
φ500 3-jaw manual
φ500 3-jaw manual
Turret/tool post
-
CNC turret 4 position
CNC turret 4 position
CNC turret 4 position
Tool shank size
mm
32 x 32
32 x 32
32 x 32
X axis travel
mm
320/420
320/420
320/420
Z axis travel
mm
850/1350/2850
850/1350/2850
850/1350/2850
X axis rapid traverse
mm/min
4000
4000
4000
Z axis rapid traverse
mm/min
6000
6000
6000
Tailstock quill diameter
mm
φ100
φ100
φ100
Tailstock quill taper
-
MT5
MT5
MT5
Tailstock quill travel
mm
250
250
250
Main spindle motor
kW
11
11
11
Coolant pump motor
kW
0.125
0.125
0.125
Weight for 1000
kg
4500
4600
4700
Weight for 1500
kg
5000
5100
5200
Weight for 3000
kg
6000
6100
6200
Dimension for 1000
mm
3300x1800x1850
3300x1880x1850
5000x1880x1850
Dimension for 1500
mm
3800x1800x1850
3800x1880x1850
6500x1880x1850
Dimension for 3000
mm
5300x1800x1850
5300x1880x1850
7500x1880x1850

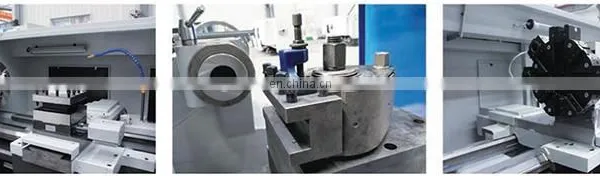

Details:

Standard Accessories:

Siemens controller, 4 station electric turret, automatic lubrication, coolant pump, semi-shield

Optional accessories:

Fanuc,GSK or other brand CNC controller, quick change tool post, hydraulic turret or power turret, pneumatic chuck, hydraulic tailstock, pneumatic position limiter, tool setting arm, full-shield
