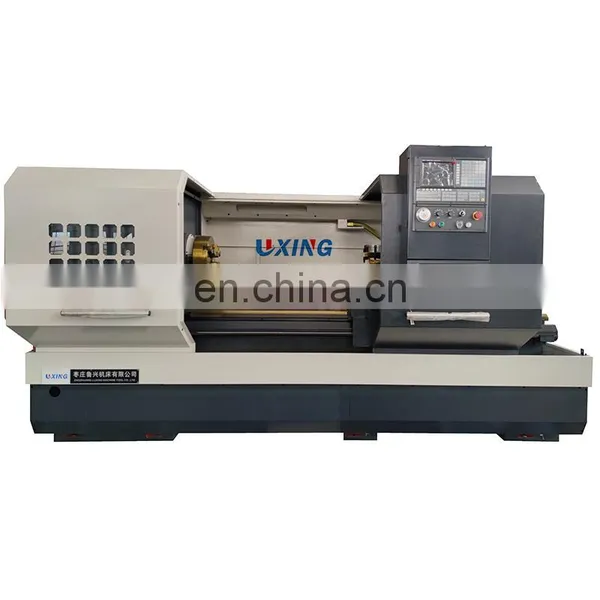

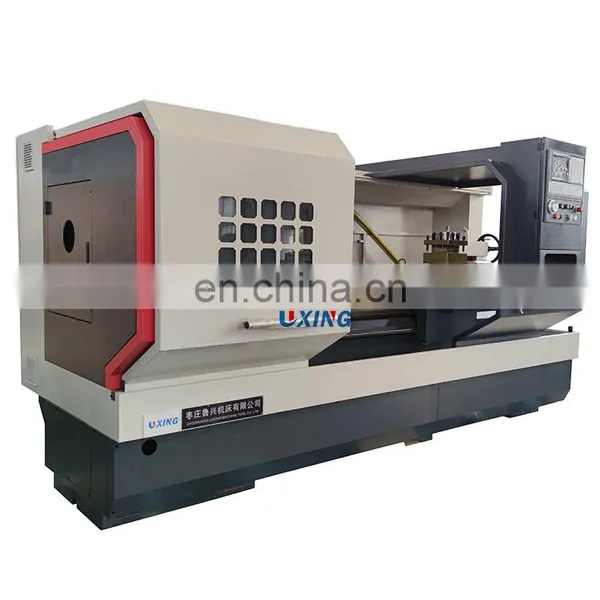

CAK6180C High Precision Horizontal Auto Cnc Lathe Machine China Flat Bed Price for Sale
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
hi Precision Slant Bed Cnc Lathe Mill Live Tooling Milling Combo Turning Center Machine CK46D-8
-
Slant Bed With C Axis Live Tooling Auto Turning Center and Milling Cnc Lathe Machine CK46D-8
-
Oil Country Precision Automatic Cnc Tube Pipe Thread Threading Lathe Machine QK1313
-
Heavy Duty Flat Bed Automatic Cnc Pipe Thread Threading Lathe Machine QK1313 for Pipes
-
China Large Bore Cnc Pipe Thread Threading Lathe Machine QK1313 QK1319 QK1322 for Sale
-
KND Siemens Fanuc GSK Control Flat Bed Cnc Horizontal Metal Turning Center Lathe Machine CAK6140 Price Manufacturer for Sale CE
Product Description
CAK6180C high precision horizontal auto cnc lathe machine china flat bed price for sale
Application :
CAK series CNC lathe machine is an economical ,practical type machine tools iwth good quality .
The machine has a very wide use which is suitable or internal and external turning ,tapering,circular arc ,thread ,boring ,reaming of axle and disk workpiece .It also can achieve non-circular curve machining ,You can choose the CNC system and optional accessories according to your requirement .
The machine has a very wide use which is suitable or internal and external turning ,tapering,circular arc ,thread ,boring ,reaming of axle and disk workpiece .It also can achieve non-circular curve machining ,You can choose the CNC system and optional accessories according to your requirement .
Product main technical specifications:
SPECIFICATIONS | Units | CAK6140 CAK6140B CAK6140C | CAK6150 CAK6150B CAK6150C | CAK6161 CAK6161B CAK6161C | CAK6166 CAK6166B CAK6166C | CAK6180 CAK6180B CAK6180C | ||||
Swing over bed | mm | 400 | 500 | 610 | 660 | 800 | ||||
Swing over cross slide | mm | 180 | 280 | 350 | 380 | 520 | ||||
Distance between centers | mm | 750/1000/1500/2000/3000 | ||||||||
Spindle bore | mm | 52,(80 for B),[105 for C] | ||||||||
Spindle bore taper | - | MT6,(φ90 1:20 for B),[φ113 1:20 for C] | ||||||||
Spindle nose type | - | C6,(D8 for B),[D8 for C] | ||||||||
Spindle speed steps | - | Manual 3 steps (Optional: stepless) | ||||||||
Spindle speed range | rpm | 21-150,66-500,162-1500 (Optional: 100-1600 ) | ||||||||
Turret/tool post | - | Electric 4 position | Electric 4 position | Electric 4 position | Electric 4 position | Electric 4 position | ||||
Tool size | mm | 25 x 25 | 25 x 25 | 25 x 25 | 25 x 25 | 25 x 25 | ||||
X axis travel | mm | 200 | 250 | 310 | 330 | 400 | ||||
Z axis travel | mm | 750/1000/1500/2000/3000 | ||||||||
X axis rapid traverse | mm/min | 6000 | 6000 | 6000 | 6000 | 6000 | ||||
Z axis rapid traverse | mm/min | 10000 | 10000 | 10000 | 10000 | 10000 | ||||
Tailstock quill diameter | mm | 75 | 75 | 75 | 75 | 75 | ||||
Tailstock quill taper | - | MT5 | MT5 | MT5 | MT5 | MT5 | ||||
Tailstock quill travel | mm | 150 | 150 | 150 | 150 | 150 | ||||
Main spindle motor | kw | 7.5 | 7.5 | 7.5 | 11 | 11 | ||||
Coolant pump motor | kw | 0.125 | 0.125 | 0.125 | 0.125 | 0.125 | ||||
Weight for 750 | kg | 2450 | 2500 | 2550 | 2650 | 2750 | ||||
Weight for 1000 | kg | 2550 | 2600 | 2650 | 2750 | 2850 | ||||
Weight for 1500 | kg | 2650 | 2700 | 2750 | 2850 | 2950 | ||||
Weight for 2000 | kg | 3050 | 3150 | 3250 | 3350 | 3450 | ||||
Weight for 3000 | kg | 3850 | 3950 | 4050 | 4150 | 4250 | ||||
Dimension for 750 | mm | 2550x1650x1700 | 2550x1650x1750 | 2550x1700x1800 | 2550x1750x1850 | 2550x1750x1900 | ||||
Dimension for 1000 | mm | 2750x1650x1700 | 2750x1650x1750 | 2750x1700x1800 | 2750x1750x1850 | 2750x1750x1900 | ||||
Dimension for 1500 | mm | 3250x1650x1700 | 3250x1650x1750 | 3250x1700x1800 | 3250x1750x1850 | 3250x1750x1900 | ||||
Dimension for 2000 | mm | 3700x1650x1700 | 3700x1650x1750 | 3700x1700x1800 | 3700x1750x1850 | 3700x1750x1900 | ||||
Dimension for 3000 | mm | 4710x1650x1700 | 4710x1650x1750 | 4710x1700x1800 | 4710x1750x1850 | 4710x1750x1900 | ||||
Details:
Standard accessories:
GSK980TC3 or GSK980TDC system;
Manual chuck,manual tailstock;
4 station electric tool post;
Manual three steps spindle speed.
Manual chuck,manual tailstock;
4 station electric tool post;
Manual three steps spindle speed.
Optional accessories:
Siemens or Fanuc system;
Hydraulic chuck ,hydraulic tailstock;
6 or 8 station turret;
Independent spindle;
Automatic chip conveyor.
Hydraulic chuck ,hydraulic tailstock;
6 or 8 station turret;
Independent spindle;
Automatic chip conveyor.
