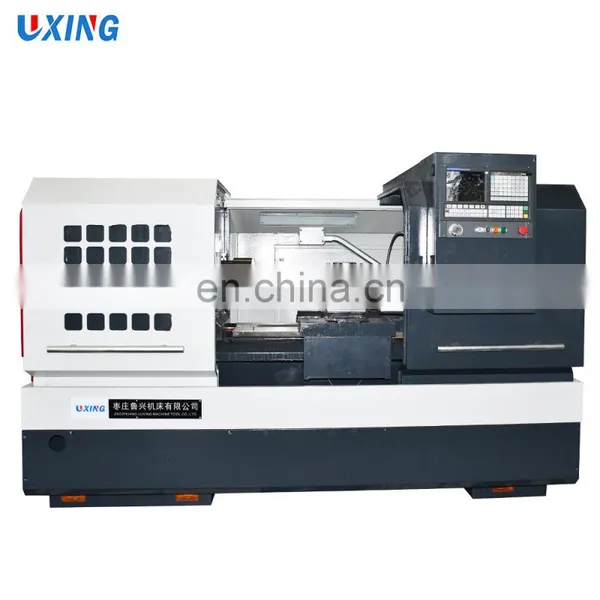

Flat bed CNC control Lathe Metal Turning center Machine CAK6150 With Hydraulic Chuck price for sale china
Application :
CAK series CNC lathe machine is an economical ,practical type machine tools iwth good quality .
The machine has a very wide use which is suitable or internal and external turning ,tapering,circular arc ,thread ,boring ,reaming of axle and disk workpiece .It also can achieve non-circular curve machining ,You can choose the CNC system and optional accessories according to your requirement .
Product main technical specifications:
|
Specifications |
Units |
CAK6140 CAK6140B CAK6140C |
CAK6150 CAK6150B CAK6150C |
CAK6161 CAK6161B CAK6161C |
CAK6166 CAK6166B CAK6166C |
CAK6180 CAK6180B CAK6180C |
||
|
Max.swing over bed |
mm |
400 |
500 |
610 |
660 |
800 |
||
|
cessing length |
mm |
750/1000/1500/2000/3000 |
||||||
|
Spindle taper |
|
MT6(Ø90 1:20 for B)[Ø113 1:20 for C] |
||||||
|
Chuck size |
mm |
C6(D8)[D8] |
||||||
|
Spindle bore |
mm |
52(80 for B)[105 for C] |
||||||
|
Spindle speed 3 steps (auto change gear) |
rpm |
Independent spindle:100-1600 21-1500(162-1500,66-500,21-150) |
||||||
|
Tailstock sleeve travel |
mm |
150 |
||||||
|
Tailstock sleeve taper |
|
MT5 |
||||||
|
Position accuracy |
mm |
±0.015 |
||||||
|
Repositioning accuracy |
mm |
±0.006 |
||||||
|
X/Z axis rapid traverse |
m/min |
4/6 |
||||||
|
Spindle motor |
kw |
7.5 |
11 |
|||||
|
Machine dimension for 750 |
mm |
2550x1550x1700 |
2550x1550x1900 |
|||||
|
Machine dimension for 1000 |
mm |
2750x1550x1700 |
2750x1550x1900 |
|||||
|
Machine dimension for 1500 |
mm |
3250x1550x1700 |
3250x1550x1900 |
|||||
|
Machine dimension for 2000 |
mm |
3700x1550x1700 |
3700x1550x1900 |
|||||
|
Machine dimension for 3000 |
mm |
4710x1550x1700 |
4710x1550x1900 |
|||||
|
Machine weight for 750 |
kg |
2100/2800 |
2120/2900 |
2250/2850 |
2300/2900 |
2400/3000 |
||
|
Machine weight for 1000 |
kg |
2200/2900 |
2240/3000 |
2400/3000 |
2450/3050 |
2550/3150 |
||
|
Machine weight for 1500 |
kg |
2300/3150 |
2350/3200 |
2600/3200 |
2650/3250 |
2750/3350 |
||
|
Machine weight for 2000 |
kg |
2700/3350 |
2740/3400 |
2830/3400 |
2880/3450 |
2980/3550 |
||
|
Machine weight for 3000 |
kg |
3500/4100 |
3600/4200 |
3650/4250 |
3700/4300 |
3800/4400 |
||
