High Precision Manual 2d Measurement Metrology Equipment For Dimension
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
One-Touch Measuring Image Dimension Measurement System For Small Pieces
-
One-touch Fast Image Measurement Instrument VMM
-
Automatic One-touch Fast Visual Inspection Machine
-
Fully Auto 2D Image Measurement Machine 2d 3d Optical Measuring Equipment
-
OEM 2.5d Image Measuring Instrument 3d Automatic Optical Measuring Instruments
-
OEM High Quality 2d 3d Measurement System Dimensions Image Measuring Instrument
Product Description
Product Description

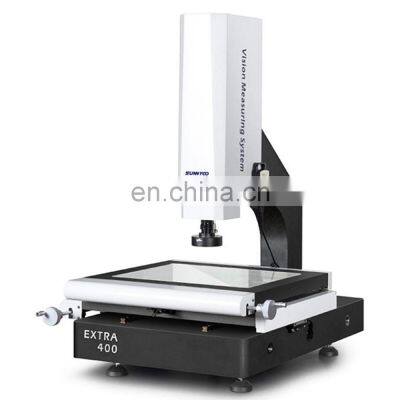

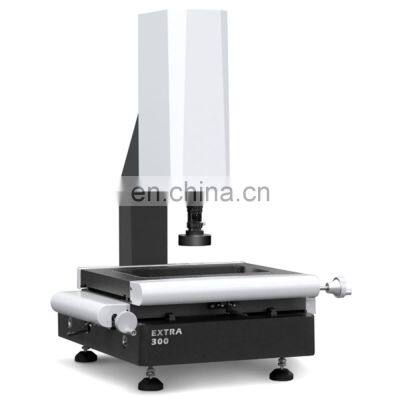

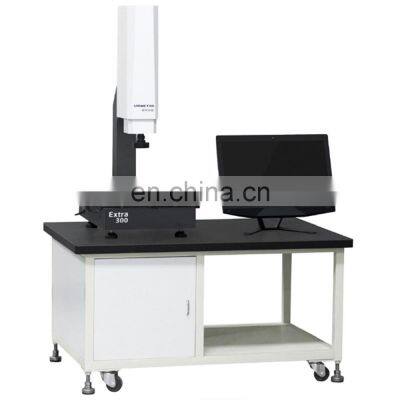

High Precision Manual 2d Measurement Metrology Equipment For Dimension
The EXTRA series manual vision measurement machine provides extra measuring function and user experience to customers over normal vision measuring products. We use light weight design on the machine frame, makes the structure more slim, but keep the high rigidity and stability, allows the users to get the max measuring range in smallest space.
The EXTRA series is using high accuracy linear slide way, which is totally different from the cross slide way used for other
manual VMM, ensures much more stable and accurate transmitting of the work stage, also voiding the potential risk of the shorten traveling range which cost by the cross slide way. Working with the UNIMETRO professional 3D measuring software, the EXTRA series VMM will provide strong 3D measuring function, which becomes a powerful 2D/3D composite measuring device with extremely reasonable price.
manual VMM, ensures much more stable and accurate transmitting of the work stage, also voiding the potential risk of the shorten traveling range which cost by the cross slide way. Working with the UNIMETRO professional 3D measuring software, the EXTRA series VMM will provide strong 3D measuring function, which becomes a powerful 2D/3D composite measuring device with extremely reasonable price.
Details Images
Wider Application
Thanks to the light weight structure design, the EXTRA series metrology equipment is offering much wider application range. The EXTRA series is able to be used in labs, QC rooms, even R&D center which has really limit space as a desk top precise measuring device. In the mean time, the outstanding measuring accuracy of the EXTRA series makes it more adaptable to strict measuring requirement. It is a powerful measuring device for metals, electronics, 3C products, PCB or plastic industries etc.
Specification
Items | EXTRA200 | EXTRA300 | EXTRA400 | EXTRA500 | |||||
Dimension(mm)( L * W * H ) | 500*540*930 | 600*740*980 | 700*840*980 | 800*940*980 | |||||
Measuring range (mm)( X * Y * Z ) | 200*100*150 | 300*200*200 | 400*300*200 | 500*400*200 | |||||
Measuring Accuracy ( µ m ) | 2.5+L/100 | 2.5+L/100 | 2.5+L/100 | 3+L/100 | |||||
Repeatability ( µ m ) | 2.5 | 2.5 | 2.5 | 3 | |||||
Weight ( kg ) | 140kg | 190kg | 240kg | 290kg | |||||
Image and Measuring | CCD | Industrial grade color CCD camera | |||||||
Lens | Manual dented zoom lens 0.7-4.5X/Auto zoom lens 1-10X | ||||||||
Magnification | 18-195X ( For reference only. With different camera and lens the magnification will be different. ) | ||||||||
Field of View | 8.1~1.3mm | ||||||||
Working distance | 108mm | ||||||||
Linear scale resolution | 0.5 µ m ( 0.1µ m for option ) | ||||||||
Driving system | X , Y axis manual conrol , Z axis close-loop CNC control and AUTU FOCUS funtion available | ||||||||
Illumination | Programmable 4 sections LED ring surface light , parallel LED contour light , 8 sections LED ring light , co-axial , for optio | ||||||||
