High Precision Manual 2d Measurement 2.5d VMM
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
High Precision Manual 2d Measurement 2.5d Image Measuring Instrument For Dimension
-
Optical Measuring Vcm Vmm Measuring Instruments
-
Optical Measuring Vcm Vmm Inspection Instrument For Metals PCB 3Cproduct
-
Manual Optical Vision Measuring Machine VMM
-
Manual Optics Instruments Optical Inspection Machine Optical Vision Measuring Machine
-
High Accuracy Machine Optic 2d Vision Measuring Machine for Measuring 2D Elements
Product Description

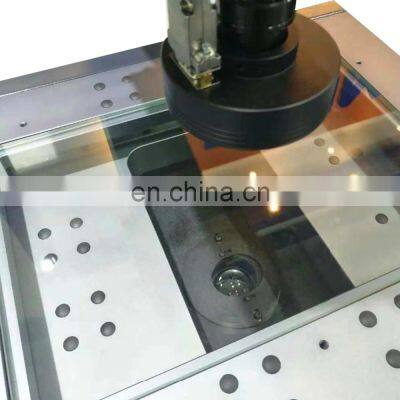

High Precision Manual 2d Measurement 2.5d Image Measuring Instrument For Dimension
The EXTRA series manual vision measurement machine provides extra measuring function and user experience to customers over normal vision measuring products. We use light weight design on the machine frame, makes the structure more slim, but keep the high rigidity and stability, allows the users to get the max measuring range in smallest space.


The EXTRA series is using high accuracy linear slide way, which is totally different from the cross slide way used for other
manual VMM, ensures much more stable and accurate transmitting of the work stage, also voiding the potential risk of the shorten traveling range which cost by the cross slide way. Working with the UNIMETRO professional 3D measuring software, the EXTRA series VMM will provide strong 3D measuring function, which becomes a powerful 2D/3D composite measuring device with extremely reasonable price.
manual VMM, ensures much more stable and accurate transmitting of the work stage, also voiding the potential risk of the shorten traveling range which cost by the cross slide way. Working with the UNIMETRO professional 3D measuring software, the EXTRA series VMM will provide strong 3D measuring function, which becomes a powerful 2D/3D composite measuring device with extremely reasonable price.







Items | EXTRA200 | EXTRA300 | EXTRA400 | EXTRA500 | |||||
Dimension(mm)( L * W * H ) | 500*540*930 | 600*740*980 | 700*840*980 | 800*940*980 | |||||
Measuring range (mm)( X * Y * Z ) | 200*100*150 | 300*200*200 | 400*300*200 | 500*400*200 | |||||
Measuring Accuracy ( µ m ) | 2.5+L/100 | 2.5+L/100 | 2.5+L/100 | 3+L/100 | |||||
Repeatability ( µ m ) | 2.5 | 2.5 | 2.5 | 3 | |||||
Weight ( kg ) | 140kg | 190kg | 240kg | 290kg | |||||
Image and Measuring | CCD | Industrial grade color CCD camera | |||||||
Lens | Manual dented zoom lens 0.7-4.5X/Auto zoom lens 1-10X | ||||||||
Magnification | 18-195X ( For reference only. With different camera and lens the magnification will be different. ) | ||||||||
Field of View | 8.1~1.3mm | ||||||||
Working distance | 108mm | ||||||||
Linear scale resolution | 0.5 µ m ( 0.1µ m for option ) | ||||||||
Driving system | X , Y axis manual conrol , Z axis close-loop CNC control and AUTU FOCUS funtion available | ||||||||
Illumination | Programmable 4 sections LED ring surface light , parallel LED contour light , 8 sections LED ring light , co-axial , for optio | ||||||||

Thanks to the light weight structure design, the EXTRA series vision measurement machine is offering much wider application range. The EXTRA series is able to be used in labs, QC rooms, even R&D center which has really limit space as a desk top precise measuring device. In the mean time, the outstanding measuring accuracy of the EXTRA series makes it more adaptable to strict measuring requirement. It is a powerful measuring device for metals, electronics, 3C products, PCB or plastic industries etc.


About Us
UNIMETRO helps you to build your own business! UNIMETRO is the professional manufacturer of metrology with over 10 years
experience. We offer high performance products with reasonable price. And professional cooperators from global market are always welcome to join us and UNIMETRO will always offer the best marketing and technical support.


10 Years Experience
UNIMETRO is the professional manufacturer of metrology with over 10 years experience. We focus on midium high level of metrology
products, offers complete high accuracy measuring solutions for customers.
Our Production Line
Except the instruments for accurate measuring as vision measurement machine, coordinates measurement machine and profile
projectors, Our production line are also including core components for optical metrology, such as VMM one basket controllers, lens, camera system, linear scales, VMM and CMM fixtures, illumination system etc...

Customer Service
We have specialists team in the metrology industry and capability of offering flexible measuring solutions to our customers and
dealers.Most of the Unimetro products are independent development, and our concept of design is stable and modularization, whichminimize the after sales service. This will help our partners to manage the products details and sales with minimize labor cost
and staff training cost.



Engineering Design
1.Latest Systems : Solidwords with FE analysis.
2.Auto CAD/CAM; Pore
3.Industry 3D print machines.
4.Fast Prototype from your Ideas.
5.Talented Engineering team Support within 24 hours feedback.
2.Auto CAD/CAM; Pore
3.Industry 3D print machines.
4.Fast Prototype from your Ideas.
5.Talented Engineering team Support within 24 hours feedback.
