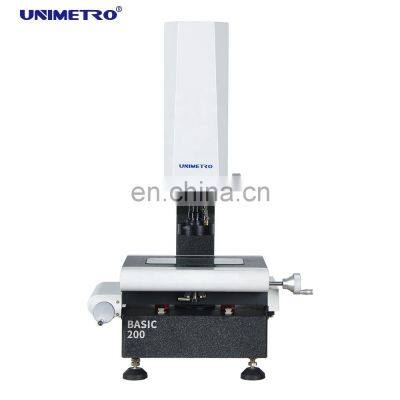

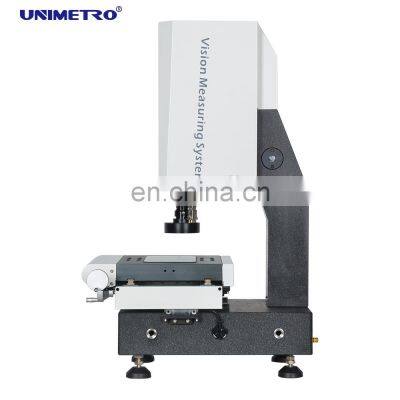

Manual 2d Measuring Machine VMM Contour Measuring Machine Vision System Inspection
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Manual Machine Optic Coordinate Measuring Machine Vision Measuring Machine Price VMM
-
3D Manual Video Measuring System Instruments Measuring VMM
-
Manual Image Measuring Instrument Optical Test Equipment For Dimension Measurement
-
Manual 2d Measurement 2.5d Image Measuring Instrument For Dimension
-
Manual 2d/2.5d Measurement Image Measuring Instrument Metrology Machine
-
Manual 2d Measurement 2.5d Optical Measuring Instruments
Product Description
◉ Vision measurement machine is an instrument used for accurate physical dimension measuring, accuracy up to micron level,Which is an optical measuring instrument using the camera to capture the image of the work piece, analyse the image pixel and calculate the 2D dimension with the measuring software.
◉ BASIC Series vision measurement machine is designed and developed by UNIMETRO, which is a popular model fit for most of the accurate 2D dimension measuring application and end users from different industries, as Mold, Electronics, Semi conductor, Plastic Injection, 3C products, Medical care, Aviation...etc.It is an important instrument used in your products quality control process,ensuring your products dimension accuracy, makes your products more competitive.
◉ BASIC series VMM is the most common model for most of the factories manufacturing accurate parts. It is fit for small quantity samples measuring application. 3 axis manual control, with user friendly software, allows the operator to manage using the machine in very short time.
◉ Using high accuracy and stability granite as machine base and column,with 3-axis 0.0005mm high-resolution linear sensor
◉ Using HIWIN linear guide way and high-precision linear guide rail, with aluminum work stage and hard anodizing surface processing.
---- Ensures the high dynamic performance and long life cycle usage of the machine.
◉ Using an integrated core control box which is developed by UNIMETRO, for linear scales, light control, and touch probe signal transfering.
---- Ensure easy wiring and maintainence. Highly increase the stability of the machine.
◉ Programmable contour LED light with parallel light path, avoids the deformation of the image.
◉ BASIC Series vision measurement machine is designed and developed by UNIMETRO, which is a popular model fit for most of the accurate 2D dimension measuring application and end users from different industries, as Mold, Electronics, Semi conductor, Plastic Injection, 3C products, Medical care, Aviation...etc.It is an important instrument used in your products quality control process,ensuring your products dimension accuracy, makes your products more competitive.
◉ BASIC series VMM is the most common model for most of the factories manufacturing accurate parts. It is fit for small quantity samples measuring application. 3 axis manual control, with user friendly software, allows the operator to manage using the machine in very short time.
◉ Using high accuracy and stability granite as machine base and column,with 3-axis 0.0005mm high-resolution linear sensor
----Ensure each machine’s high performance and accuracy.
◉ Using HIWIN linear guide way and high-precision linear guide rail, with aluminum work stage and hard anodizing surface processing.
---- Ensures the high dynamic performance and long life cycle usage of the machine.
◉ Using an integrated core control box which is developed by UNIMETRO, for linear scales, light control, and touch probe signal transfering.
---- Ensure easy wiring and maintainence. Highly increase the stability of the machine.
◉ Programmable contour LED light with parallel light path, avoids the deformation of the image.
---- Ensures the measuringaccuracy.
◉ With 8 section software control LED ring light, offer multiple illuminating angle and brightness.
◉ With 8 section software control LED ring light, offer multiple illuminating angle and brightness.
---- Fit for parts withdifferent shape and materials.
◉ The lighting parameters can be record in the part measuring program, users do not need to adjust during the measuring process.
----Friendly and conveniently use.
◉ The lighting parameters can be record in the part measuring program, users do not need to adjust during the measuring process.
----Friendly and conveniently use.
APPLICATION AREA
Mould industry
Automobile manufacturing
Medical industry
Mechanical manufacturing
3C digital industry
PCB production
HARDEARE CONFIGURATION
HIWIN linear guide way
Aluminum work stage and hard anodizing
Integrated core control box
Multi function LED parallel light group
.
3 axis 0.5um resolution linear scales
Industrial grade high resolution CCD camera
0.7-4.5X manual dented zoom lens with high repeatability
Supporting multiple external accessories
PARAMETER
BASIC200 | BASIC300 | BASIC400 | BASIC500 | ||||||
Dimension(mm)(L×W×H) | Dimension(mm)(L×W×H) | 550*540*930 | 600*740*980 | 700*840*980 | 800*940*980 | ||||
Measuring range(mm)(X×Y×Z) | Measuring range(mm)(X×Y×Z) | 200*100*150 | 300*200*200 | 400*300*200 | 500*400*200 | ||||
Measuring Accuracy(μm) | Measuring Accuracy(μm) | 2.5 + L / 100 | 3.0 + L / 100 | ||||||
Repeatability (μm) | Repeatability (μm) | 2.5 | 3.0 | ||||||
Weight (kg) | 140 | 190 | 240 | 290 | |||||
Image and Measuring | Camera | Industrial grade high resolution CCD camera | |||||||
Lens | 0.7~4.5X manual dented zoom lens with high repeatability | ||||||||
Magnification | 18~195 X | ||||||||
Field of View | 8.1mm ~ 1.3 mm | ||||||||
Working distance | 80 mm | ||||||||
Linear scale resolution | 0.5μm ( 0.1μm Optional ） | ||||||||
Driving system | Driving system | X / Y / Z manual control | |||||||
Illumination | Illumination | Programmable LED 8 sections /single section ring surface light, parallel LED contour light | |||||||
SOFTWARE FUNCTION
The UNIMETRO INSPECT3D software is with user friendly UI, easy to learn,
powerful function, allows the users to achieve fast and precise measuring.
The software is offering full English language UI, also allows new language development.
◉ Input CAD file and measure
◉ Parts array and macro measuring
◉ Auto focus and height measuring
◉ Navigating function helps fast locating
◉ Powerful geometric measuring function
◉ Multiple data reports and graphical data output function
◉ Flexible user program
◉ Creating reference elements
◉ Powerful edge detecting function
◉ Supporting multiple external accessories
◉ Auto calculation of the elements geometrical tolerance
◉ Measuring complicated production fast and conveniently
AFTRE-SALES SERVICE
24 month warranty
30 minute quick response7 x 24-hour online customer service
Online video service
Telephone hotline
Technician one-to-one service
Online video service
Telephone hotline
Technician one-to-one service
L/C letter of credit
D/A documents against acceptance
D/P Documents against Payment
T/T Telegraphic Transfer
Western union
Money gram
ABOUT US
Dongguan UNIMETRO Precision Machinery Co., Ltd
Dongguan UNIMETRO Precision Machinery Co., Ltd is a professional supplier of metrology products with 9 years experience. We devote ourselves to developing, assembling, and sales of vision measurement machines, tools inspection machines, metrology accessories and special metrology fixtures. Also we are integrating the best metrology resources in the world and have built a mature supply chain for other metrology equipment and products. The UNIMETRO products have been sold to more than 20 countries and regions, and contribute our service and support to different customers in different industries such as mold, plastic injection, electronics, semi conductor, aviation and automotive. UNIMETRO has the leading advantage of outstanding R&D capability and detailed oriented production process. We have got more than 15 patents for our products and we will always keep the leading position of innovation in the metrology industry. Professional, sincere, responsibility, and honest are the key characters of the UNIMETRO people. And we are always expecting long term cooperation with you! UNIMETRO will always offer our best support and resources to our partners!
CLIENT & AGENT
FAQ
Q: Are you a factory or trading company ?
A: We are a factory and giving you the quickest reply in 24 hours.
Q: What's your company mainly in?
A: We are mainly produce Vision measuring machine,Coordinate measuring machine ,CMM&VMM fixturesetc.
Q: How to Choose the Appropriate Specification?
A: As long as you tell us variety and size of product to be measured, our professional team would advise you of measuring
instrument of suitable specifications.
instrument of suitable specifications.
Q: Do you accept customized service?
A: Be sure! We can provide not only typical machines, but also the machines customized to customer's needs.
Q: What is your warranty period?
A: Our product warranty period is 2 year. Our product quality is very stable, and we have improved a lot on some breakable parts. You can rest assured of our product quality.
