High Accuracy Machine Optic 2d Vision Measuring Machine for Measuring 2D Elements
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
OEM Image Measuring Instrument VMM
-
Automatic Compact Type CNC VMM
-
Granite Structure/Manual Video Measuring Machine VMM Series
-
Automatic Optical Measuring Vcm Vmm Measuring Instruments
-
Manual Image Measuring Instrument Optical Test Equipment For Dimension Measurement
-
Manual 2d Measuring Machine VMM Contour Measuring Machine Vision System Inspection
Product Description
High accuracy machine optic 2d vision measuring machine for measuring 2D elements
Features
● The most compact design CNC Vision Measurement Machine
● The economical Universal Vision Measuring Solution
● High adaptability to multiple measuring sensors
● Flexible application scenario
● Outstanding Imaging system
● Powerful Measuring Software
Simple & Stable
We carry the philosophy of simple and stable in the designing process of the PEAK series through to the end. We eliminate the unnecessary mechanical parts, integrate all the electronics inside the mechanical structure, optimize the wiring, to ensure the machine stability and easy maintainence.
High adaptability to multiple measuring sensors

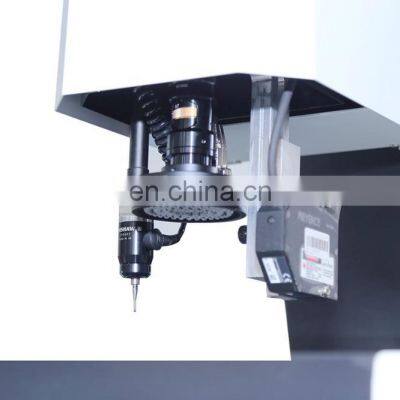

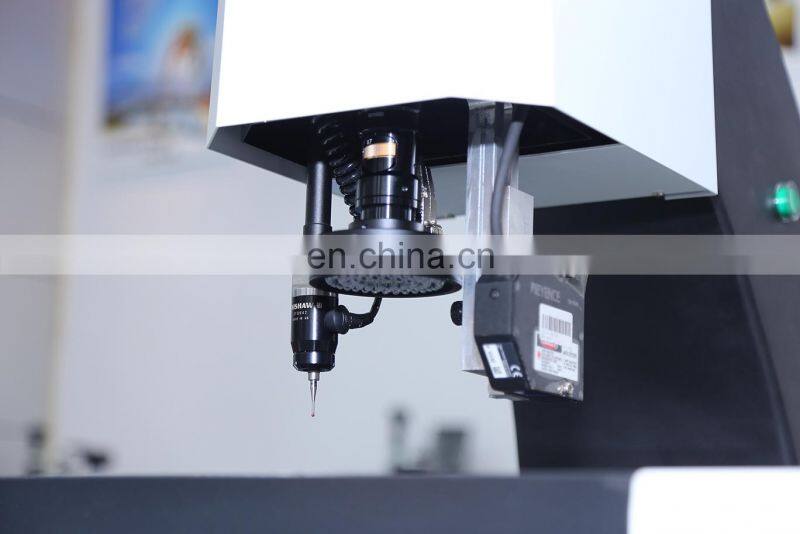

The PEAK series support multiple measuring sensors solution. Touch probe, laser sensor and white light sensor are all compatible. Which allows much wider application range for different measuring requirement.
Flexible application scenario
Thanks to the optimize design, powerful software function and great second development potential, the PEAK series can be applied for different industries and in different scenario.
Economical vision measuring solution
The simple and integrated design allow us to build the machine with lower cost, in the mean time keep the high measuring accuracy and best performance. Users are able to enjoy the advantage of high efficiency and labor cost saving from a full CNC vision measurement machine with very low price.
Excellent imaging system
The PEAK series offers a superior imaging system compared to similar products on the market, allowing users to obtain clearer andsharper edges.On the basis of a lot of basic theoretical research, we selected a high pixel industrial digital camera, to ensurehigh imaging quality, high frame rate, measurement stability.
Powerful Software
The PEAK series is equipped with powerful UNIMETRO Inspect measurement software.
◆ Simple and easy to use interface;
◆ Complete measurement function;
◆ Weak edge detection
◆ Autofocus and focus measurement function;
◆ Support for multi-sensor programming

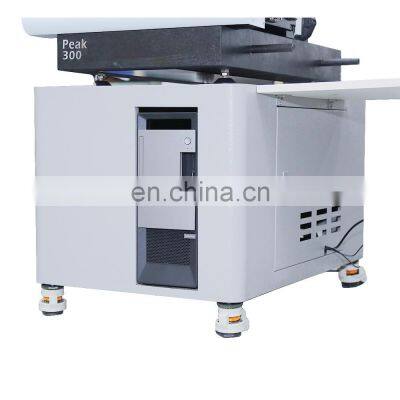

Item | PEAK 300 | PEAK 400 | PEAK500 | ||||
Dimension(mm)(L*W*H) | 750*980*1050 | 870*1000*1080 | 950*1150*1100 | ||||
Measuring Range(mm)(X*Y*Z) | 300*200*200 | 400*300*200 | 500*400*200 | ||||
Accuracy(um) | 3+L/200 | 3+L/200 | 3+L/200 | ||||
Repeatability(um) | 3 | 3 | 3 | ||||
Weight(kg) | 190 | 200 | 220 | ||||
Image and Measuring | CCD | Industrial grade analog CCD camera and SV2000E video card | |||||
Lens | Manual dented zoom lens 0.7-4.5X / 0.7-4.5X manual zoom lens with signal feedback (Optional) / Auto zoom lens (Optional) | ||||||
Magnification | 18-188X (Different combination of camera and lens leads to different magnification range) | ||||||
FOV | 8.1-1.3mm (Different combination of camera and lens leads to different FOV range) | ||||||
Working Distance | 108mm | ||||||
Linear scales resolution | 0.0005mm | ||||||
Illumination | Programmable 3 rings, 8 sections surface ring light, programmable parallel contour light | ||||||
About Us
UNIMETRO helps you to build your own business! UNIMETRO is the professional manufacturer of metrology with over 10 years
experience. We offer high performance products with reasonable price. And professional cooperators from global market are always welcome to join us and UNIMETRO will always offer the best marketing and technical support.10 Years Experience
UNIMETRO is the professional manufacturer of metrology with over 10 years experience. We focus on midium high level of metrology
products, offers complete high accuracy measuring solutions for customers.
Our Production Line
Except the instruments for accurate measuring as vision measurement machine, coordinates measurement machine and profile
projectors, Our production line are also including core components for optical metrology, such as VMM one basket controllers, lens, camera system, linear scales, VMM and CMM fixtures, illumination system etc...Customer Service
We have specialists team in the metrology industry and capability of offering flexible measuring solutions to our customers and
dealers.Most of the Unimetro products are independent development, and our concept of design is stable and modularization, whichminimize the after sales service. This will help our partners to manage the products details and sales with minimize labor cost
and staff training cost.
Engineering Design
1.Latest Systems : Solidwords with FE analysis.
2.Auto CAD/CAM; Pore
3.Industry 3D print machines.
4.Fast Prototype from your Ideas.
5.Talented Engineering team Support within 24 hours feedback.
2.Auto CAD/CAM; Pore
3.Industry 3D print machines.
4.Fast Prototype from your Ideas.
5.Talented Engineering team Support within 24 hours feedback.
