Manual Image Measuring Instrument Optical Test Equipment For Dimension Measurement
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Port of Shipment:
Shenzhen
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Manual 2d Measuring Machine VMM Contour Measuring Machine Vision System InspectionNegotiableMOQ: 1 -
Manual Machine Optic Coordinate Measuring Machine Vision Measuring Machine Price VMMNegotiableMOQ: 1
-
3D Manual Video Measuring System Instruments Measuring VMMNegotiableMOQ: 1
-
Manual Image Measuring Instrument Optical Test Equipment For Dimension MeasurementNegotiableMOQ: 1
-
Manual 2d Measurement 2.5d Image Measuring Instrument For DimensionNegotiableMOQ: 1

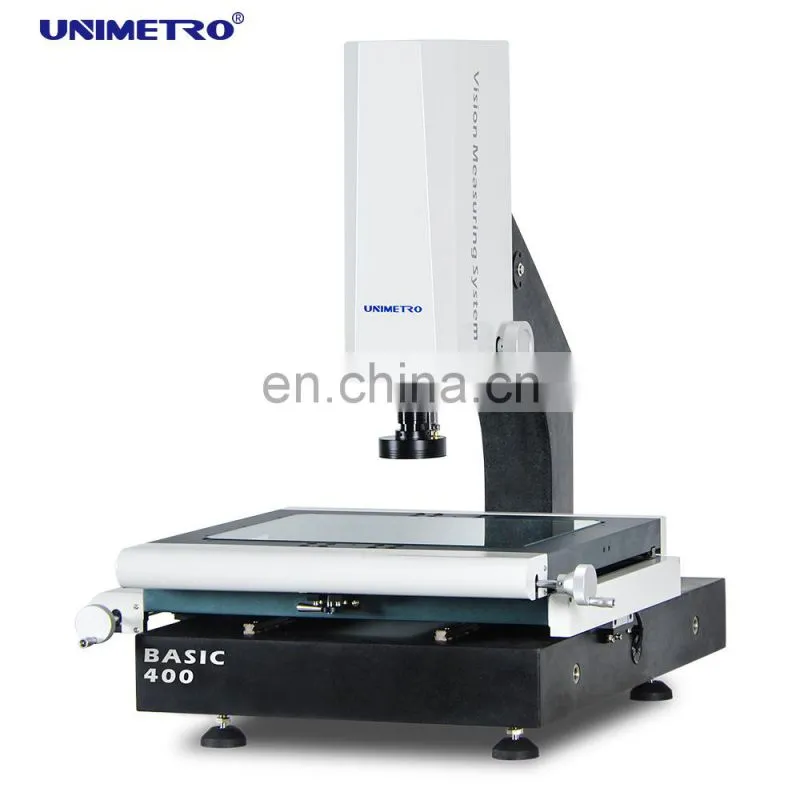

BASIC SERIES--Full Manual
BASIC Series vision measurement machine is designed and developed by UNIMETRO, Which is the most common model for most of the factories manufacturing accurate parts. It is fit for small quantity samples measuring application. 3 axis manual control, with user friendly software, allows the operator to manage using the machine in very short time.
▶ Granite base and column, excellent stability;
▶ Aluminum work stage,make the motion control fast reacting and flexible;
▶ Using HIWIN linear guide way and high-precision linear guide rail, with aluminum work stage and hard anodizing surface processing, ensures the high dynamic performance and long life cycle usage of the machine.
▶ Integrated control system,embedded with motion control,and all signal control as illumination and linear scale reading, ensures the performance of the machine is extremely stable.
◉ 3 axis 0.5um resolution linear scales
◉ High performance Auto focus function
◉ Compatible with Renishaw touch probe
◉ Aluminum work stage and hard anodizing
◉ 3 rings 8 section LED ring light software control and programmable
◉ Parallel light path LED contour light software control and programmable
◉ 1.2M pixel HD digital camera
◉ Integrated core control box
◉ Z axis motorized control
◉ HIWIN linear guide way
◉ With Laser indicators for auxiliary positioning and focusing
◉ 0.7-4.5X manual dented zoom lens with magnification signal feedback sensor
◉ Easy calibration
◉ Multiple angle touching
◉ Fast coordinates system setting
◉ Compatible to full line of Renishaw stylis
◉ CAD module supported(Optional)
◉ 3D drawing output
◉ Star probe compatible
◉ 3D dimension measuring
◉ Image and touch probe combine measuring
◉ Probe rack supported(Optional)
PARAMETER
BASIC200 |
BASIC300 |
BASIC400 |
BASIC500 |
||||||
Dimension(mm)(L×W×H) |
Dimension(mm)(L×W×H) |
550*540*930 |
600*740*980 |
700*840*980 |
800*940*980 |
||||
Measuring range(mm)(X×Y×Z) |
Measuring range(mm)(X×Y×Z) |
200*100*150 |
300*200*200 |
400*300*200 |
500*400*200 |
||||
Measuring Accuracy(μm) |
Measuring Accuracy(μm) |
2.5 + L / 100 |
3.0 + L / 100 |
||||||
Repeatability (μm) |
Repeatability (μm) |
2.5 |
3.0 |
||||||
Weight (kg) |
140 |
190 |
240 |
290 |
|||||
Image and Measuring |
Camera |
1.2M pixel HD digital camera |
|||||||
Lens |
0.7-4.5X manual dented zoom lens with magnification signal feedback sensor |
||||||||
Magnification |
18 - 195X ( For reference only. With different camera and lens the magnification will be different. ) |
||||||||
Field of View |
8.1mm ~ 1.3 mm |
||||||||
Working distance |
80 mm |
||||||||
Linear scale resolution |
0.5μm ( 0.1μm Optional ） |
||||||||
Driving system |
Driving system |
X, Y, Z axis manual control, |
|||||||
Illumination |
Illumination |
Programmable 4 sections LED ring surface light, parallel LED contour light 8 sections LED ring light, co-axial light , for option. |
|||||||
L is measuring length(mm), the mechanical accuracy of Z-axis and focus accuracy is related to the surface of the workpiece.
**Magnification is approximate value, it is related to the dimension of monitor and resolution.
Field of view(mm) = (diagonal*Horizontal*Vertical)
0.5X or 2X objective is optional available, and realize image magnification: 13X~86X or 52X~344X.
SOFTWARE FUNCTION
INSPECT 3D VISION MEASURING SOFTWARE
The UNIMETRO INSPECT3D software is with user friendly UI, easy to learn,
powerful function, allows the users to achieve fast and precise measuring.
The software is offering full English language UI, also allows new language development.
◉ Input CAD file and measure
◉ Parts array and macro measuring
◉ Auto focus and height measuring
◉ Navigating function helps fast locating
◉ Powerful geometric measuring function
◉ Multiple data reports and graphical data output function
◉ Flexible user program
◉ Creating reference elements
◉ Powerful edge detecting function
◉ Supporting multiple external accessories
◉ Auto calculation of the elements geometrical tolerance
◉ Measuring complicated production fast and conveniently
AFTER-SALES SERVICE
ABOUT US
Dongguan UNIMETRO Precision Machinery Co., Ltd
Dongguan UNIMETRO Precision Machinery Co., Ltd is a professional supplier of metrology products with 9 years experience. We devote ourselves to developing, assembling, and sales of vision measurement machines, tools inspection machines, metrology accessories and special metrology fixtures. Also we are integrating the best metrology resources in the world and have built a mature supply chain for other metrology equipment and products. The UNIMETRO products have been sold to more than 20 countries and regions, and contribute our service and support to different customers in different industries such as mold, plastic injection, electronics, semi conductor, aviation and automotive. UNIMETRO has the leading advantage of outstanding R&D capability and detailed oriented production process. We have got more than 15 patents for our products and we will always keep the leading position of innovation in the metrology industry. Professional, sincere, responsibility, and honest are the key characters of the UNIMETRO people. And we are always expecting long term cooperation with you! UNIMETRO will always offer our best support and resources to our partners!
FAQ
Q: Are you a factory or trading company ?
A: We are a factory and giving you the quickest reply in 24 hours.
Q: What's your company mainly in?
A: We are mainly produce Vision measuring machine,Coordinate measuring machine ,CMM&VMM fixturesetc.
Q: How to Choose the Appropriate Specification?
A: As long as you tell us variety and size of product to be measured, our professional team would advise you of measuring
instrument of suitable specifications.
instrument of suitable specifications.
Q: Do you accept customized service?
A: Be sure! We can provide not only typical machines, but also the machines customized to customer's needs.
Q: What is your warranty period?
A: Our product warranty period is one year. Our product quality is very stable, and we have improved a lot on some breakable parts. You can rest assured of our product quality.
