Help CenterThree Axis Dispensing Machine and Double Head Adjustable Glue Robot
Related Products
-
High Quality Glue Dispensing Machine Adhesive Digital Dispenser Bottletop 1-10mlNegotiableMOQ: 1 -
Automatic Hot Melt Glue Dispensing Machine Hot Melt Glue DispenserNegotiableMOQ: 1
-
3 Axes Dispenser Robot for Multiple Glue With CENegotiableMOQ: 1
-
Automatic Three 3 and Four 4 Axis Liquid Solder Dispensing RobotNegotiableMOQ: 1
-
Best Selling 5-axis Liquid Solder Dispensing Robot in ChinaNegotiableMOQ: 1

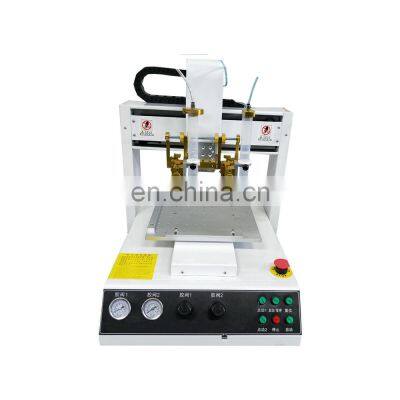

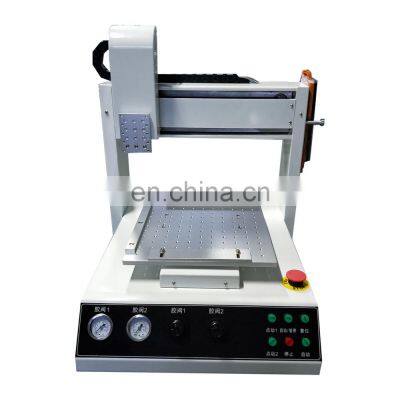

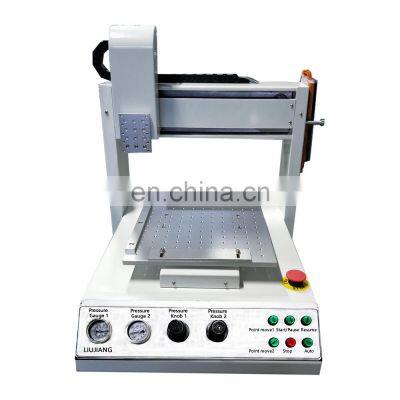

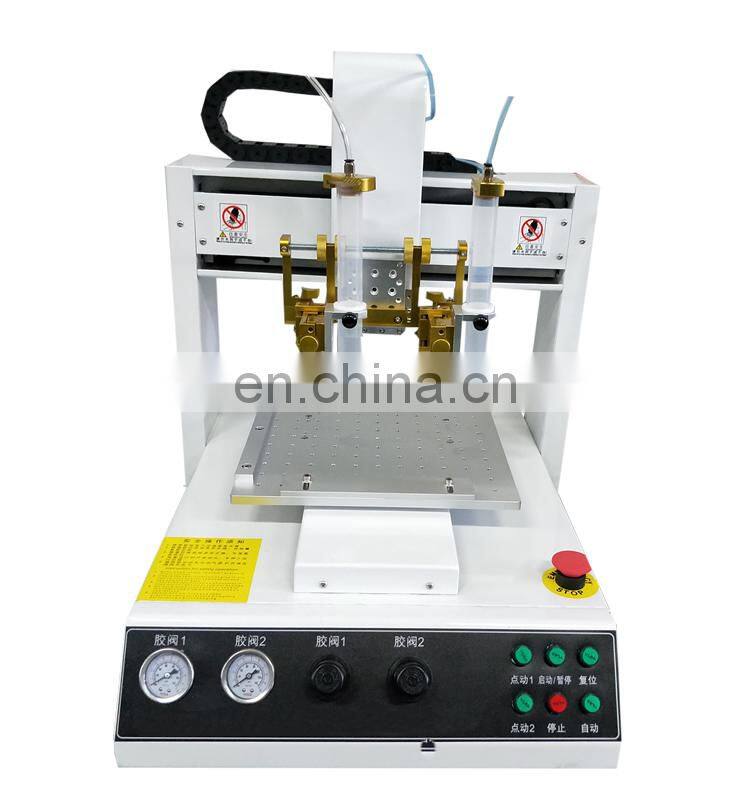

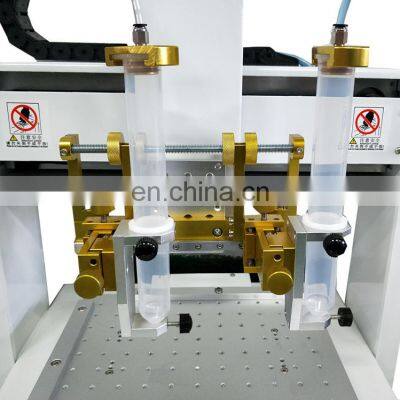

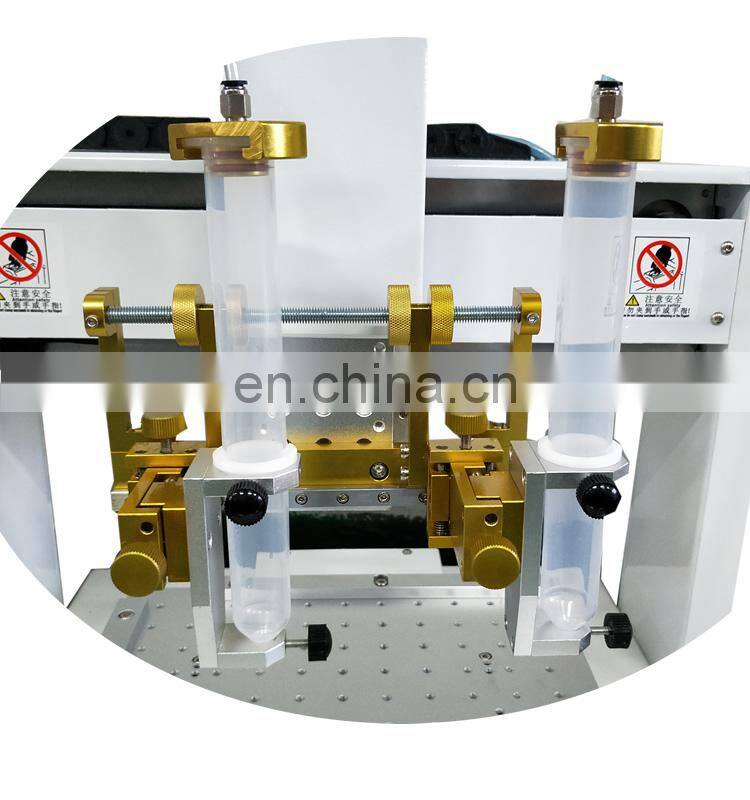

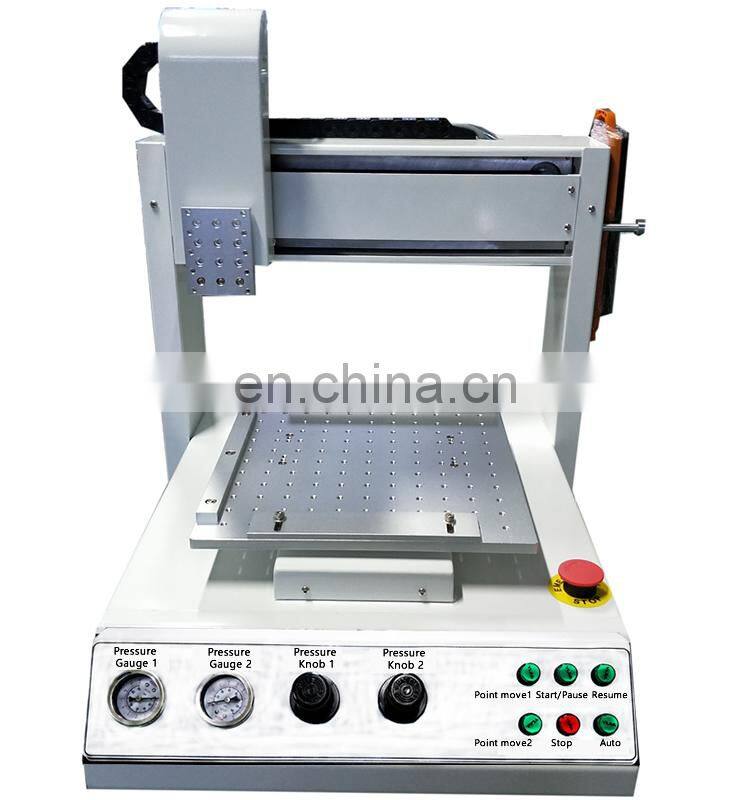

three axis dispensing machine and double head adjustable glue robot,Support 1-4 head.
| Item/Model | LJ-D3311 | LJ-D3312 | LJ-D3313 | LJ-D3314 |
| Number of axes | 3 | 3 | 3 | 3 |
| Maximum working area (X / Y / Z) | 300 / 300 / 100 mm | 300 / 300 / 100 mm | 300 / 300 / 100 mm | 300 / 300 / 100 mm |
| Head Number | 1 | 2 | 3 | 4 |
| Rotation Axis | - | - | - | - |
| Workpiece payload | 10 kg (22.0 lb) | 10 kg (22.0 lb) | 10 kg (22.0 lb) | 10 kg (22.0 lb) |
| Tool payload | 5 kg (11.0 lb) | 5 kg (11.0 lb) | 5 kg (11.0 lb) | 5 kg (11.0 lb) |
| Maximum speed(XY / Z) | 500 / 320 mm/sec | 500 / 320 mm/sec | 500 / 320 mm/sec | 500 / 320 mm/sec |
| Unit weight | 45 kg | 45 kg | 46kg | 46 kg |
| Dimensions | 450W x 650H x600D mm | 450W x 650H x600D mm | 450W x 650H x600D mm | 450W x 650H x600D mm |
| Drive system | 3-phase micro-stepping motor | 3-phase micro-stepping motor | 3-phase micro-stepping motor | 3-phase micro-stepping motor |
| Memory capacity | 1–99 programs | 1–99 programs | 1–99 programs | 1–99 programs |
| 1–9,999 points per program | 1–9,999 points per program | 1–9,999 points per program | 1–9,999 points per program | |
| Data storage | USB | USB | USB | USB |
| General purpose I/O | 8 inputs / 8 outputs | 8 inputs / 8 outputs | 8 inputs / 8 outputs | 8 inputs / 8 outputs |
| Drive method | PTP and CP | PTP and CP | PTP and CP | PTP and CP |
| Dispensing controller | External | External | External | External |
| Power supply | Auto-switching | Auto-switching | Auto-switching | Auto-switching |
| AC100–240V, 750 W | AC100–240V, 750 W | AC100–240V, 750 W | AC100–240V, 750 W | |
| Interpolation | 3 axes (3D space) | 3 axes (3D space) | 3 axes (3D space) | 3 axes (3D space) |
| Repeatability | ±0.02 mm | ±0.02 mm | ±0.02 mm | ±0.02 mm |
| Working temperature | 10–40° C (50–104° F) | 10–40° C (50–104° F) | 10–40° C (50–104° F) | 10–40° C (50–104° F) |
| Teach pendant(ENG) | Included | Included | Included | Included |
| Moving Method | Point to Point, Linear, Circle | Point to Point, Linear, Circle | Point to Point, Linear, Circle | Point to Point, Linear, Circle |
| Available Graph | Line, Circle, Arc, Continuous Line, 3D Irregularity Line | Line, Circle, Arc, Continuous Line, 3D Irregularity Line | Line, Circle, Arc, Continuous Line, 3D Irregularity Line | Line, Circle, Arc, Continuous Line, 3D Irregularity Line |
| Heating function | Optional | Optional | Optional | Optional |
| Preheat function | Optional | Optional | Optional | Optional |
| Pressure | 4-7kg f/cm2 | 4-7kg f/cm2 | 4-7kg f/cm2 | 4-7kg f/cm2 |
| Approvals | CE | CE | CE | CE |
Professional packaging: 1pc with poly bag.
wooden case and canton box are available.
make sure the machine safe.
Shipping :7 working days after order confirmed
Liujiang 10 years focused on research and development in the field of dispensing and Solder,Lock screw manufacture.
Dongguan Liujiang Automation Co., Ltd. It was founded in 2008, is a specialized in CNC glue dispenser. automatic dispensing machine, electronic product dispensing machines, multi-axis dispensing machine, PCB dispensing machines .Liujiang have granted the certification of CE. It’s a research,development,manufacturing and sales of international high and new technology enterprise. R& D Headoffice is located in Dongguan city, Guangdong province, China. The total area is 1500 square meters, We have advanced R&D center of the engineers and technicians 18 people, 2 modern production workshops , more than 130 staffs.
