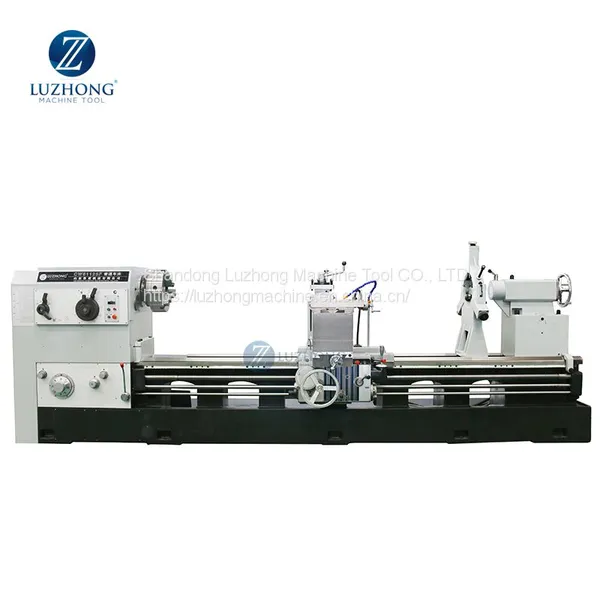

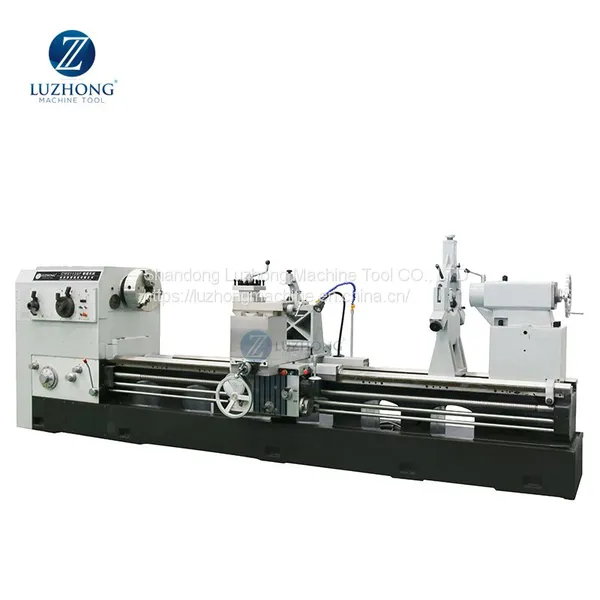

CW6163E/CW6263E/CW6180E/CW6280E Big Size Metal Lathe Turning Lathe Horizontal Heavy Duty Lathe
Product Description
FEATURES
1. One-piece bed adopts high strength iron to ensure rigidity and precision
2. Ultrasonic frequency quenched guide-ways ensure good wear-resistance
3. Headstock gears hardened and ground to achieve precision and low noise
Product Parameters
Specification |
Unit |
CW6163E/CW6263E |
CW6180E/CW6280E |
||
Swing over bed |
mm |
630 |
800 |
||
Swing over gap |
mm |
- |
800 |
- |
1000 |
Swing over cross slide |
mm |
350 |
520 |
||
Distance between centers |
mm |
1500/2000/3000/ 4000/5000/6000 |
1500/2000/3000/ 4000/5000/6000 |
||
Guideway width |
mm |
550 |
550 |
||
Max. load capacity |
T |
3 |
3 |
||
Spindle bore |
mm |
104 |
104 |
||
Spindle bore taper |
- |
Metric φ120/MT5 |
Metric φ120/MT5 |
||
Spindle nose type |
- |
C11 |
C11 |
||
Spindle speed steps |
- |
FWD. 18 steps |
FWD. 18 steps |
||
Spindle speed range |
rpm |
7.5-1000 |
6-800 |
||
Chuck |
mm |
φ315 3-jaw manual |
φ315 3-jaw manual |
||
Turret/tool post |
- |
Manual turret 4 position |
Manual turret 4 position |
||
Tool shank size |
mm |
32 x 32 |
32 x 32 |
||
X axis travel |
mm |
320 |
420 |
||
Z axis travel |
mm |
1350/1850/2850/ 3850/4850/5850 |
1350/1850/2850/ 3850/4850/5850 |
||
X axis feed grade/range |
mm/r |
64/0.05-12.15 |
64/0.05-12.15 |
||
Z axis feed grade/range |
mm/r |
64/0.1-24.3 |
64/0.1-24.3 |
||
X axis rapid traverse |
mm/min |
2300 |
2300 |
||
Z axis rapid traverse |
mm/min |
4000 |
4000 |
||
Metric thread grade/range |
mm |
50/1-240 |
50/1-240 |
||
Inch thread grade/range |
T.P.I |
26/14-1 |
26/14-1 |
||
Module thread grade/range |
mm |
53/0.5-120 |
53/0.5-120 |
||
DP thread grade/range |
D.P. |
24/28-1 |
24/28-1 |
||
Tailstock quill diameter |
mm |
φ100 |
φ100 |
||
Tailstock quill taper |
- |
MT5 |
MT5 |
||
Tailstock quill travel |
mm |
250 |
250 |
||
Main spindle motor |
kW |
11 |
11 |
||
Rapid traverse motor |
kW |
1.1 |
1.1 |
||
Coolant pump motor |
kW |
0.125 |
0.125 |
||

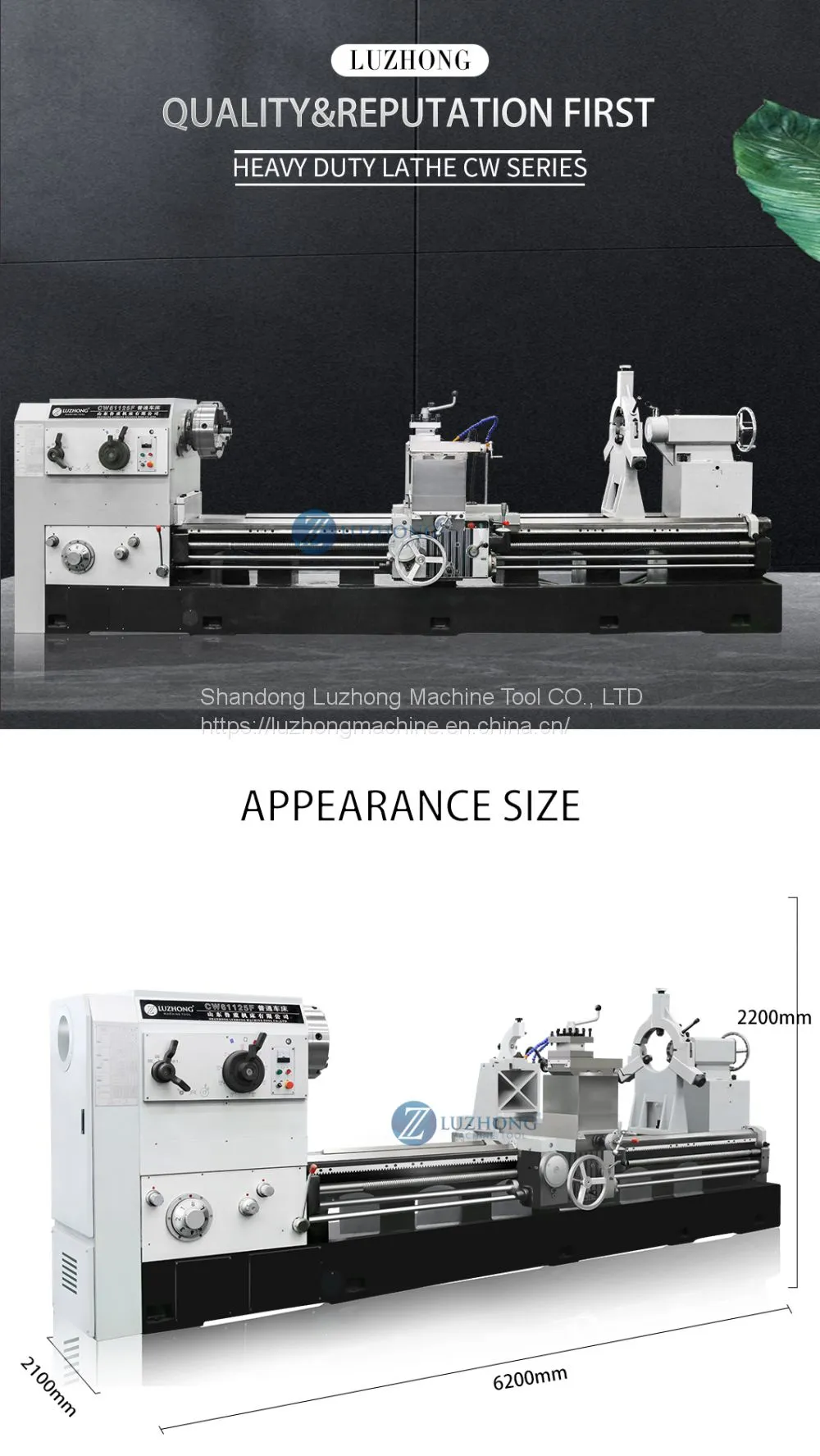

Width x Height |
mm |
1400 x 1450 |
1500 x 1450 |
||

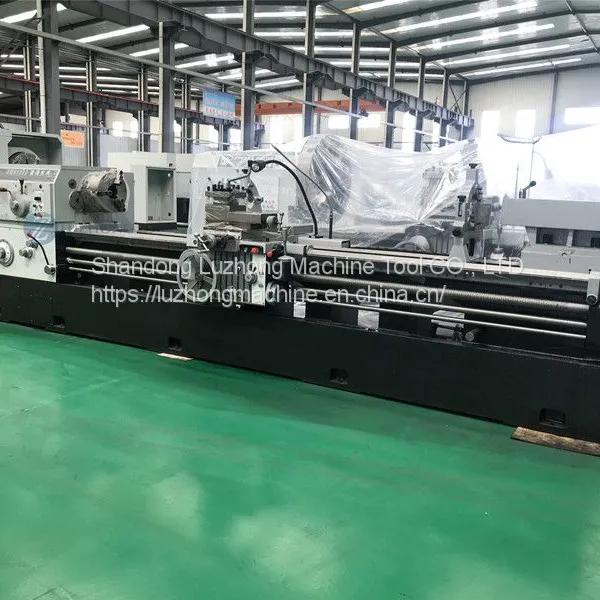

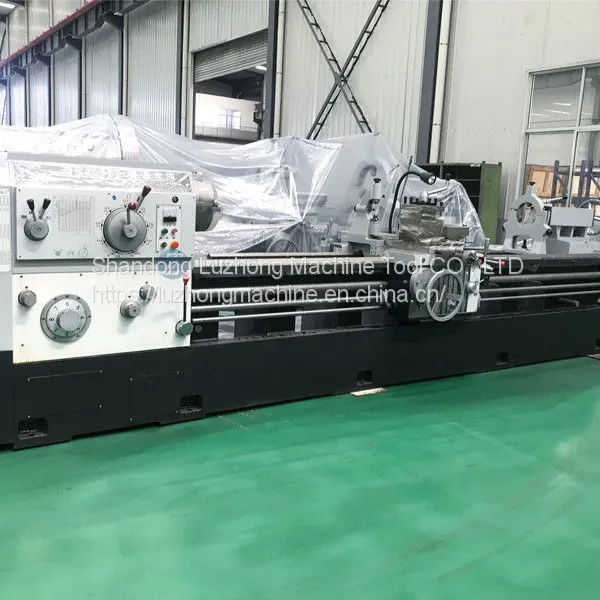

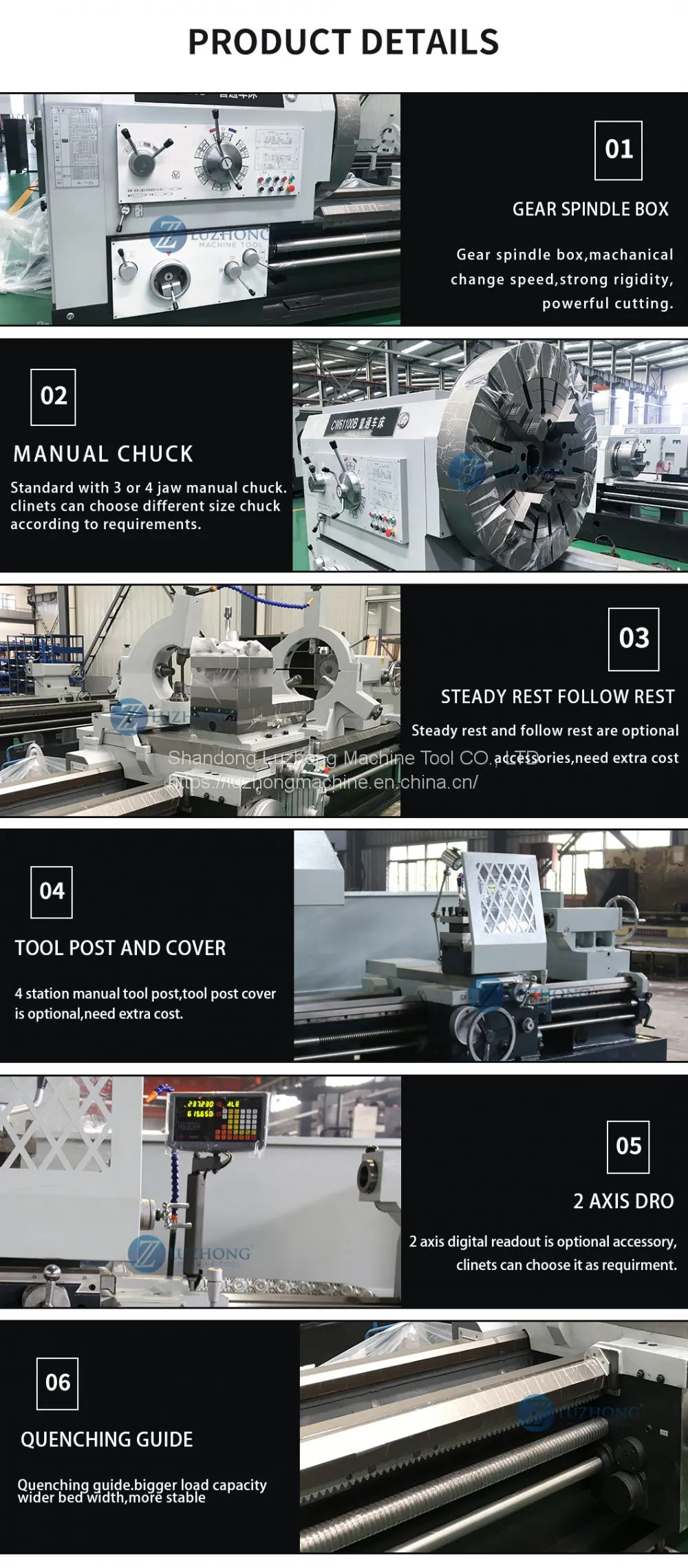

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
