C6150/C6250 Horizontal Metal Linear Lathe High Precision Lathe Machine
Product Description
Features ：
Rail width is 360mm
Thread processing need to change gears
Tool size is 20x20mm
Gears is steel of precision grinding and hardened
Standard Accessories
Hook wrench
Inner hexagon spanner
Single-ended wrench
Socket wrench
3-jaw chuck
Dead center
Center sleeve
Triangular belt
Adjustment pad iron
Foundation bolts
Change gears
Optional Accessories
Steady Rest,Follow rest
DRO
Chuck cover ,Tool post cover ,Lead screw cover
Foot brake
Fast moving
Live center
4 jaw chuck
Drill chuck and holder
Face plate
Quick change tool post
Taper turning attachment
Product Parameters
SPECIFICATIONS | Units | C6150 |
Swing over bed | mm | 500 |
Swing over cross slide | mm | 330 |
Swing over gap | mm | - |
Distance between centers | mm | 750/1000/1500/2000/3000 |
Spindle bore | mm | 52(Optional:80) |
Spindle bore taper | - | MT6(Optional:Metric 1:20) |
Spindle speed steps | - | 9 |
Spindle speed range | rpm | 40-1400 |
Cross slide travel | mm | 250 |
Top tool post travel | mm | 95 |
Tool size | mm | 20 x 20 |
Longitudinal feeds range | mm/r | 0.0832-4.6569 |
Cross feeds range | mm/r | 0.048-2.688 |
Kinds of metric threads | kinds | 19 |
Range of metric threads | mm | 0.25-14 |
Kinds of inch threads | kinds | 28 |
Range of inch threads | T.P.I. | 2-40 |
Kinds of threads module | kinds | 17 |
Range of threads module | MP | 0.25-3.5 |
Tailstock quill diameter | mm | 65 |
Tailstock quill taper | - | MT5 |
Tailstock quill travel | mm | 130 |
Main motor power | kw | 5.5 |
Coolant pump motor | kw | 0.09 |
Weight for 750 | kg | 1250 |
Weight for 1000 | kg | 1350 |
Weight for 1500 | kg | 1550 |
Weight for 2000 | kg | 1750 |
Weight for 3000 | kg | 1950 |

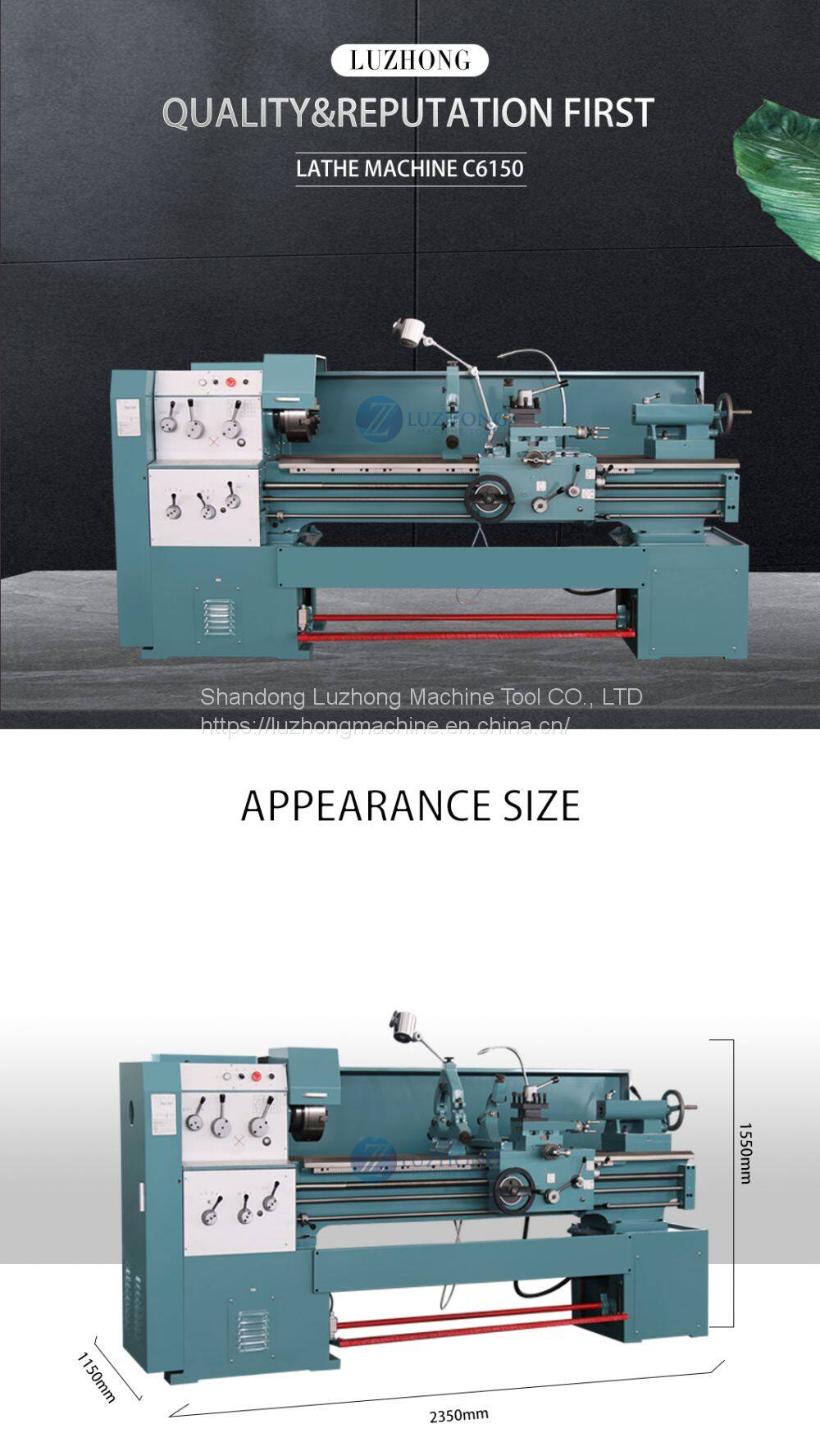

Dimension for 750 | mm | 2200x1140x1800 |
Dimension for 1000 | mm | 2400x1140x1800 |
Dimension for 1500 | mm | 2900x1140x1800 |
Dimension for 2000 | mm | 3400x1140x1800 |
Dimension for 3000 | mm | 4400x1140x1800 |

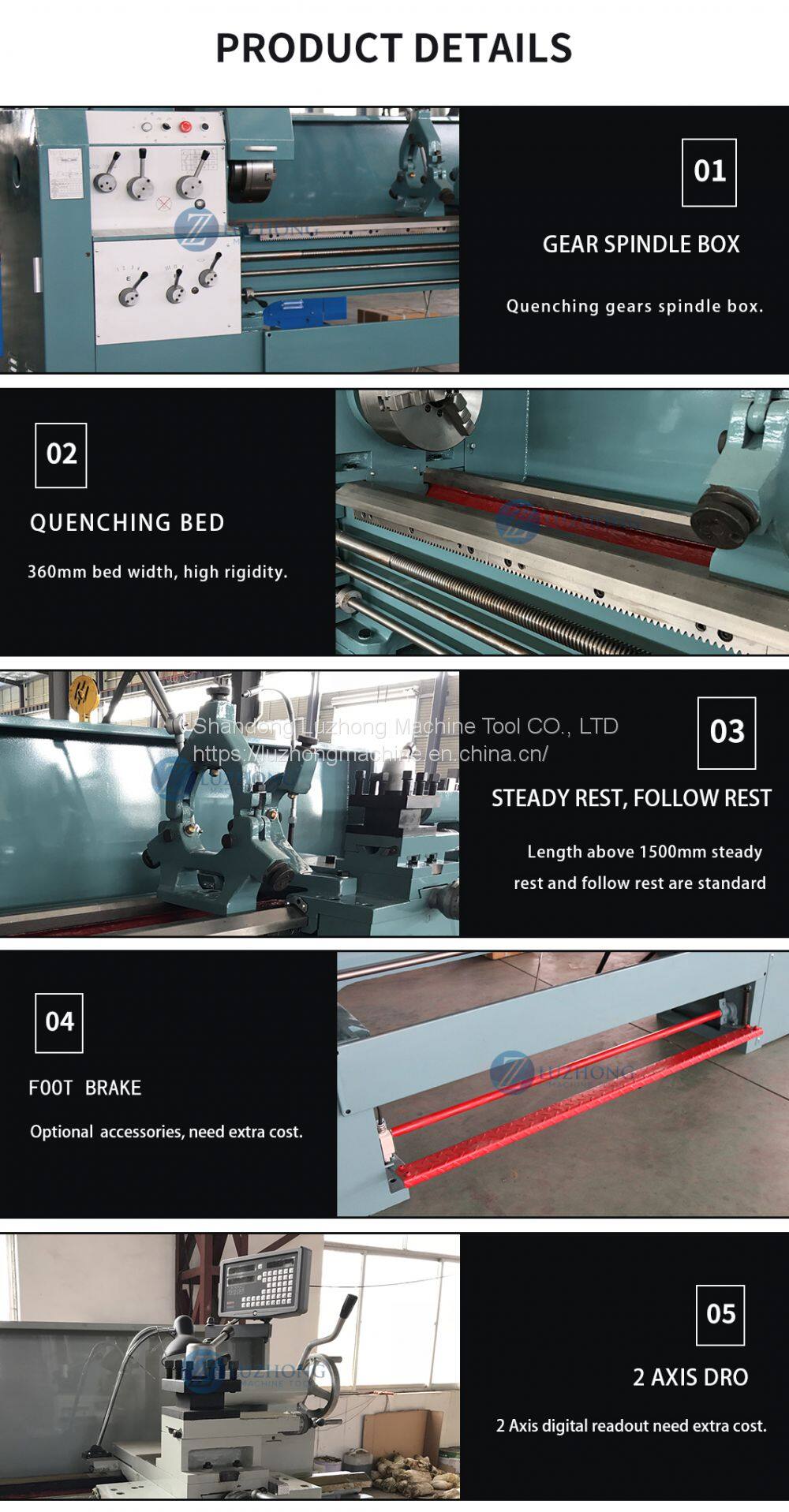

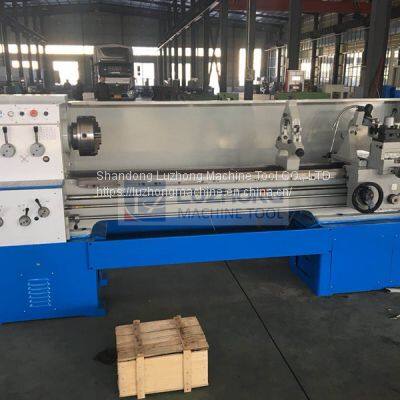

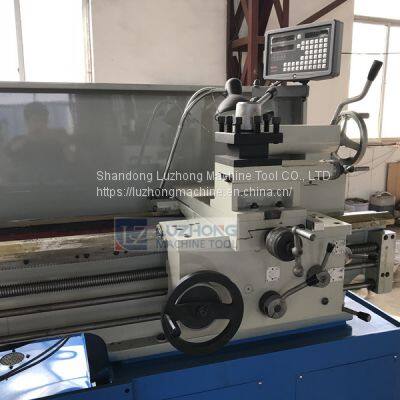

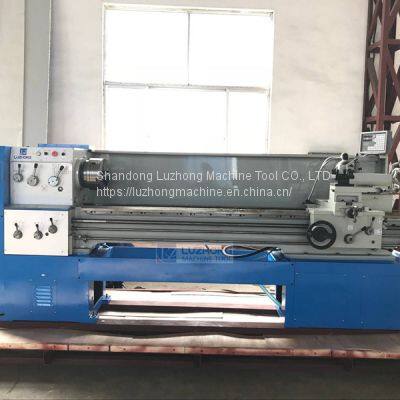

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
