Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > CJM320B Metal Lathe Electric Profile Bending Machine Lathe

CJM320B Metal Lathe Electric Profile Bending Machine Lathe

Name: CJM320B Metal Lathe Electric Profile Bending Machine Lathe
Brand: Luzhong
SKU: 167339063
Availability: InStock

Shandong Luzhong Machine Tool CO., LTD

US$ 2100 - 4000 MOQ: 1 Set

Key Specifications

Get Latest Price

Brand Name:

Luzhong

Place of Origin:

China

Model Number:

CJM320B

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port

Delivery Detail:

20 days

Product Details
Company Profile
Contact Us

Brand Name Luzhong

Place of Origin China

Model Number CJM320B

Type Horizontal

Certification GS, CE, RoHS, ISO 9001

Weight 390KG

Dimension(L*W*H) 1370×685×1360mm

Voltage Customized

Condition New

Power(W) 0.75KW

Automatic Grade Semi-Automatic

CNC or Not Normal

Max. Swing Diameter 320mm

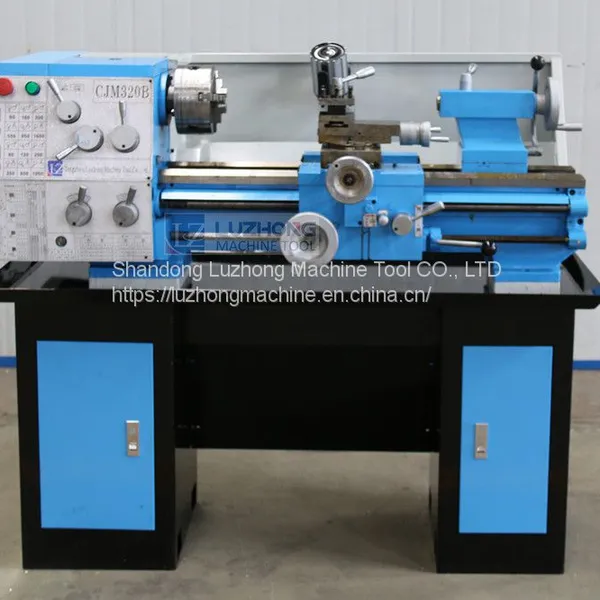

CJM320B Metal Lathe Electric Profile Bending Machine Lathe

Product Description

Product description:

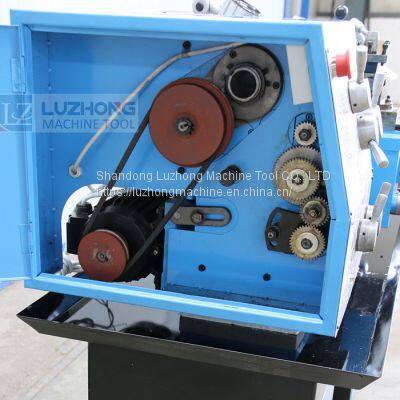

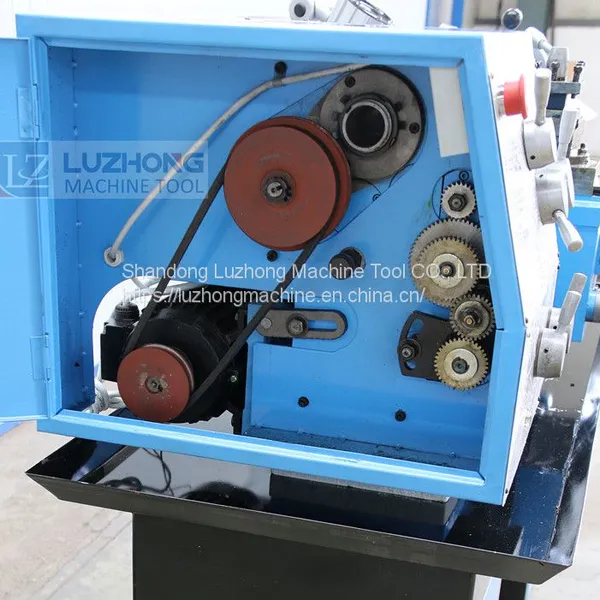

1.The machine adopts full gear drive, double rod operation, no need to replace the hanging wheel can meet the needs of a variety of different kinds of knife and a variety of pitch.
2.Vertical and horizontal feed adopts interlocking mechanism, safety is good.
3.The machine tool uses two mountains and two moment rail, high frequency quenching, high accuracy, high rigidity, good abrasion resistance.

Product Parameters

Specifications	Units	CJM320B
Max.swing over bed	mm	320
Distance between centers	mm	600/750
Max.swing over cross slide	mm	200
Spindle hole diameter	mm	38
Taper of spindle	mm	No.5
Spindle	mm	80—1600r.p.m 12
The maximum horizontal stroke of cutter	mm	160
The knife frame maximum longitudinal travel	mm	100
Processing metric thread number		22
Processing range of metric threads	mm	0.2－7
The processing module thread number		21
The processing module thread range	mm	0.2－3.5
Processing diameter pitch threads number		31
Processing pitch thread range	mm	8－120 1/n″
Longitudinal feed spindle turret at every turn	Mm/r	0.1－1.4
The transverse feed amount per turn spindle turret	Mm/r	0.045－0.6
Tailstock sleeve travel	mm	80
Taper of tailstock sleeve		No.3
Electric machinery	w	750W/380V/50HZ
Gross / net weight	kg	450/390

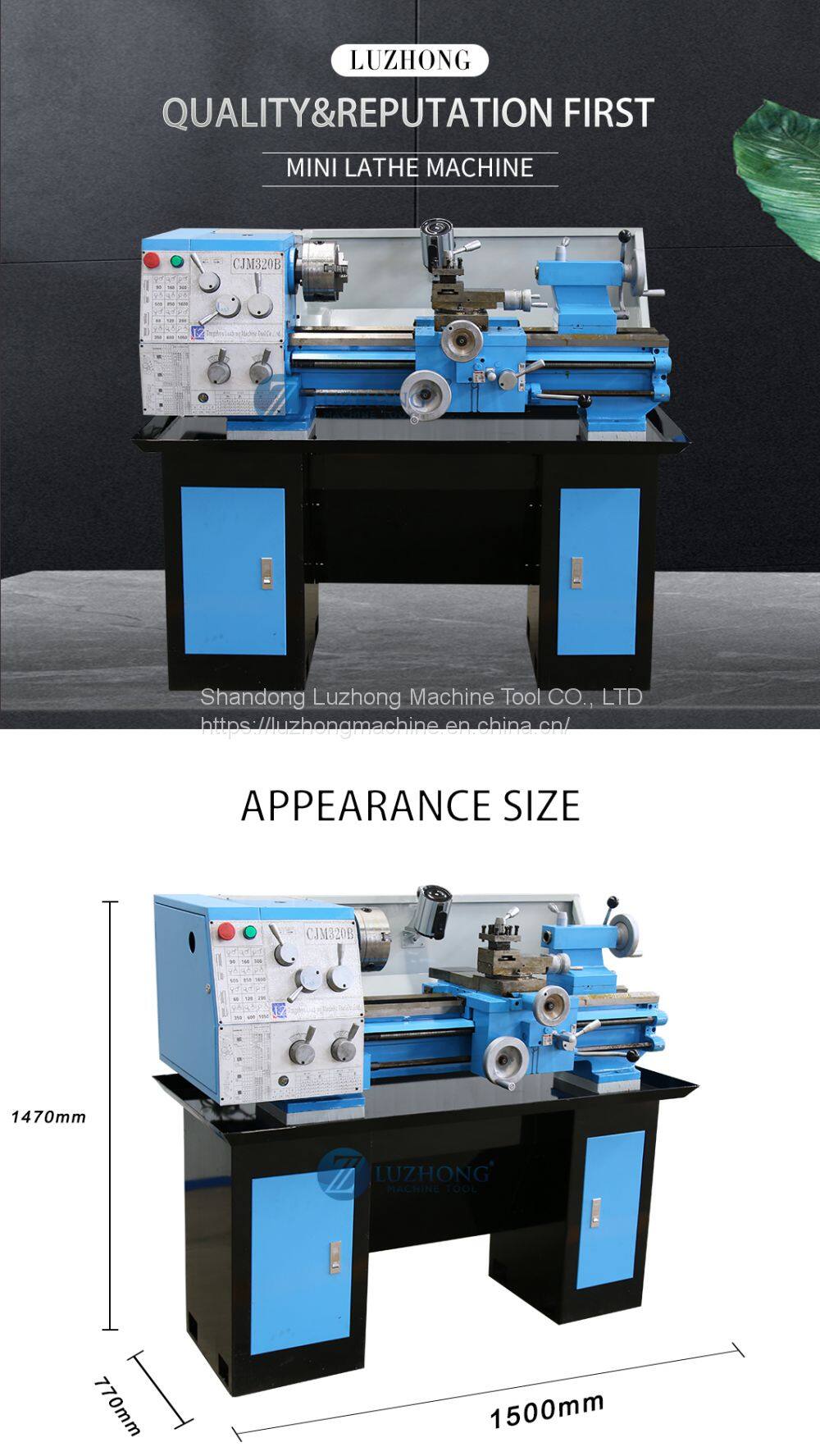

Dimensions (length * width * height)	mm	1370×685×1360
Packing size (length * width * height)	mm	1470×770×1470

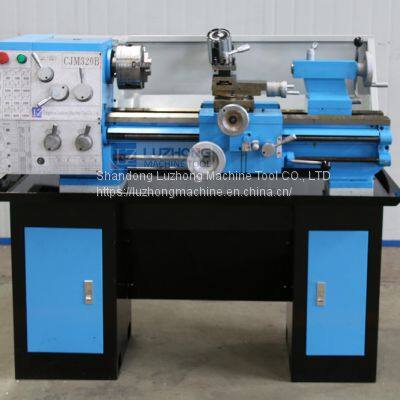

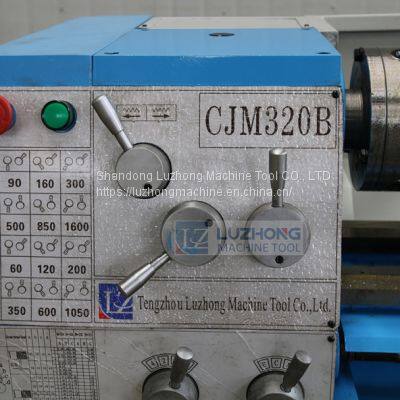

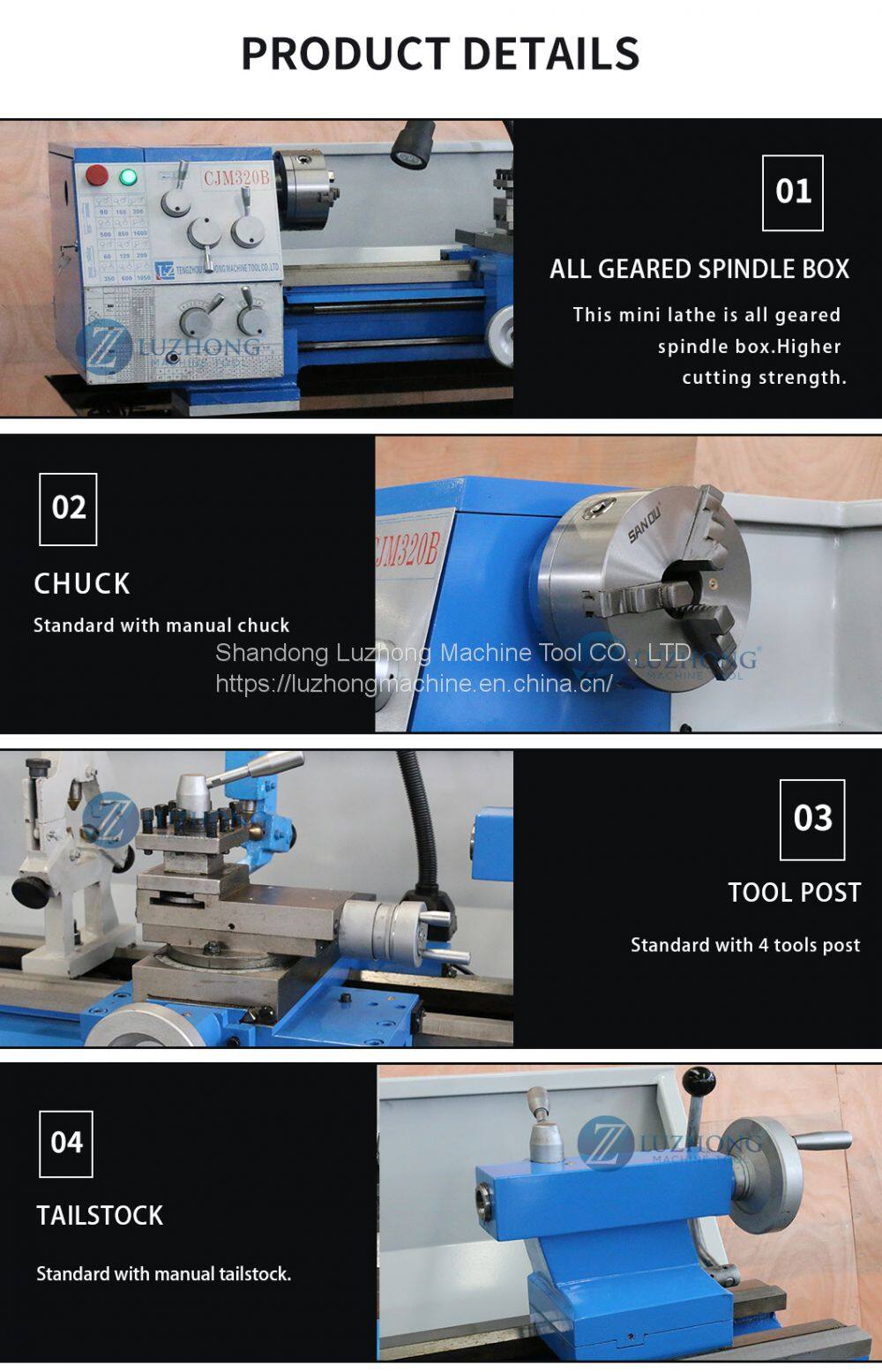

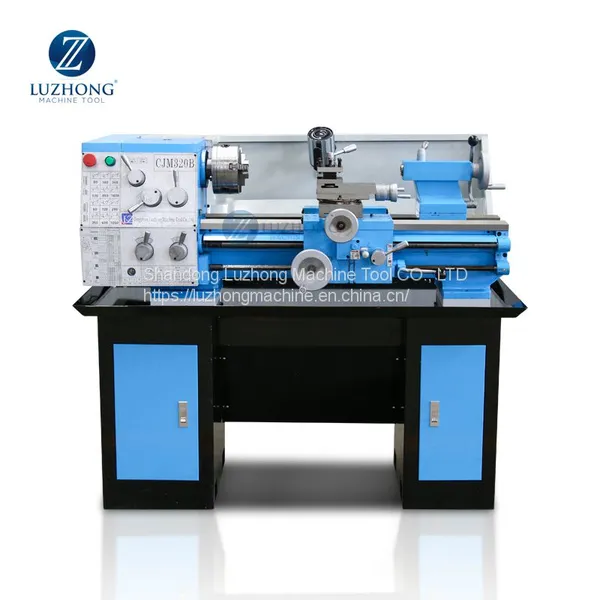

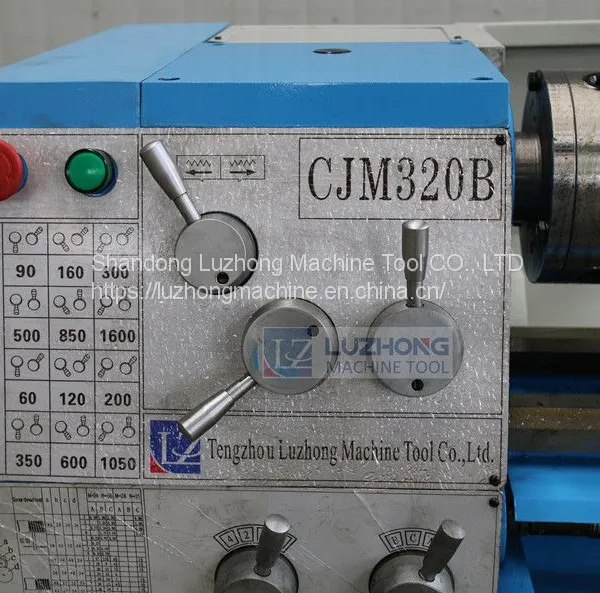

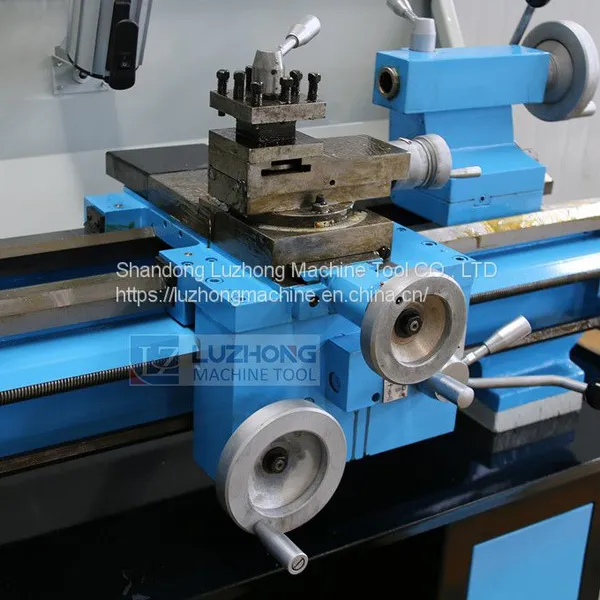

Detailed Photos

Company Profile

FAQ

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
