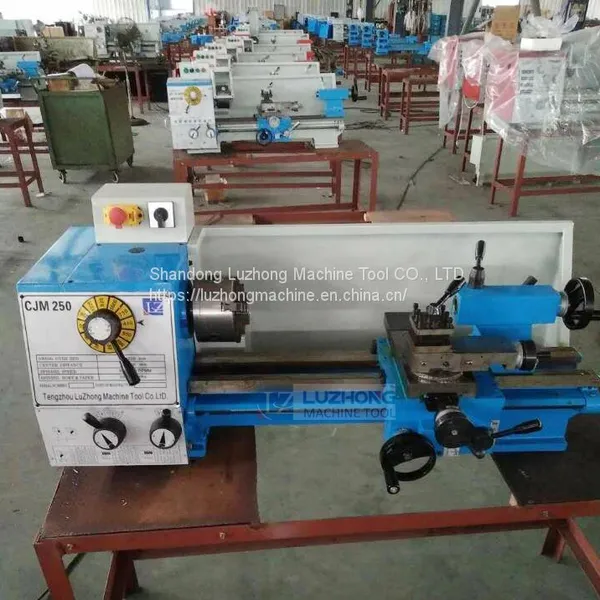

CJM250 Metal Lathe Micro Lathe Smalle Bore Mini Lathe Machine
Product Description
Product description:
1.Most economical，widely useful hobby lathe.
2.Power longitudinal feed allows threading.
3.V-way a depot double triangle and rectangle side way.
4.Easy access to safety switches.
5.Spindle is supported by precision tapered roller bearing.
6.Head stock be gear drive power.
7.Large MT4 spindle bore.

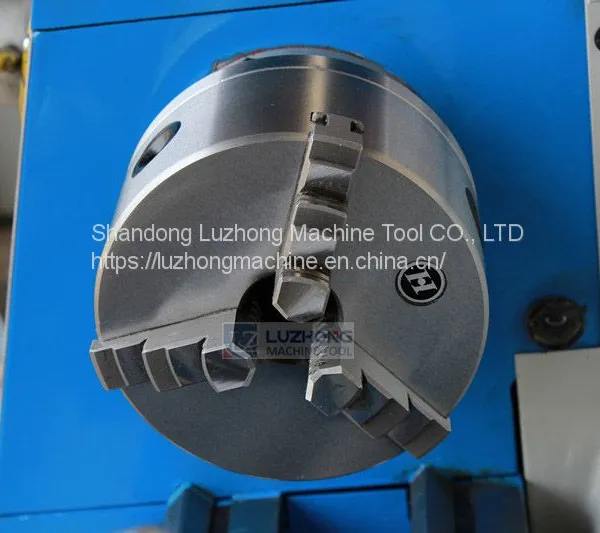

8.High precision chuck.
9.Induction cuts with cross & longitudinal power feed
Product Parameters
Specifications |
Units |
CJM250 |
Max.swing over bed |
mm |
250 |
cessing length |
mm |
500 |
Max.swing over cross slide |
mm |
150 |
Spindle hole diameter |
mm |
26 |
Taper of spindle |
mm |
No.4 |
Spindle |
mm |
80—1600r.p.m 12 |
The maximum horizontal stroke of cutter |
mm |
130 |
The knife frame maximum longitudinal travel |
mm |
75 |
Processing metric thread number |
15 |
|
Processing range of metric threads |
mm |
0.25-2.5 |
Processing inch thread number |
9 |
|
Processing range of inch threads |
TPI |
12-96 |
Longitudinal feed spindle turret at every turn |
mm |
0.03－0.275 |
The transverse feed amount per turn spindle turret |
mm |
0.015－0.137 |
Tailstock sleeve travel |
mm |
60 |
Taper of tailstock sleeve |
mm |
No.3 |
Electric machinery |
w |
750W/380V/50HZ |
Gross / net weight |
kg |
180/163 |
Dimensions (length * width * height) |
mm |
1130×550×405 |
Packing size (length * width * height) |
mm |
1200×620×600 |

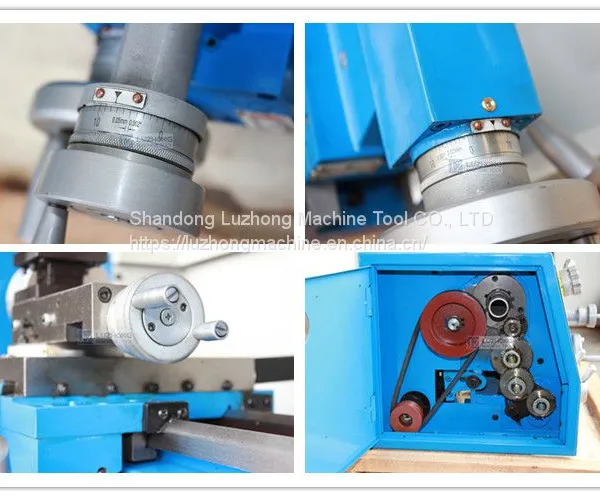

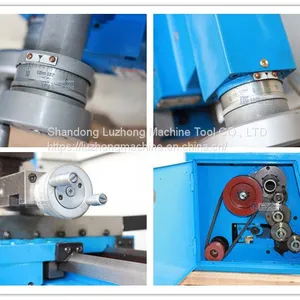

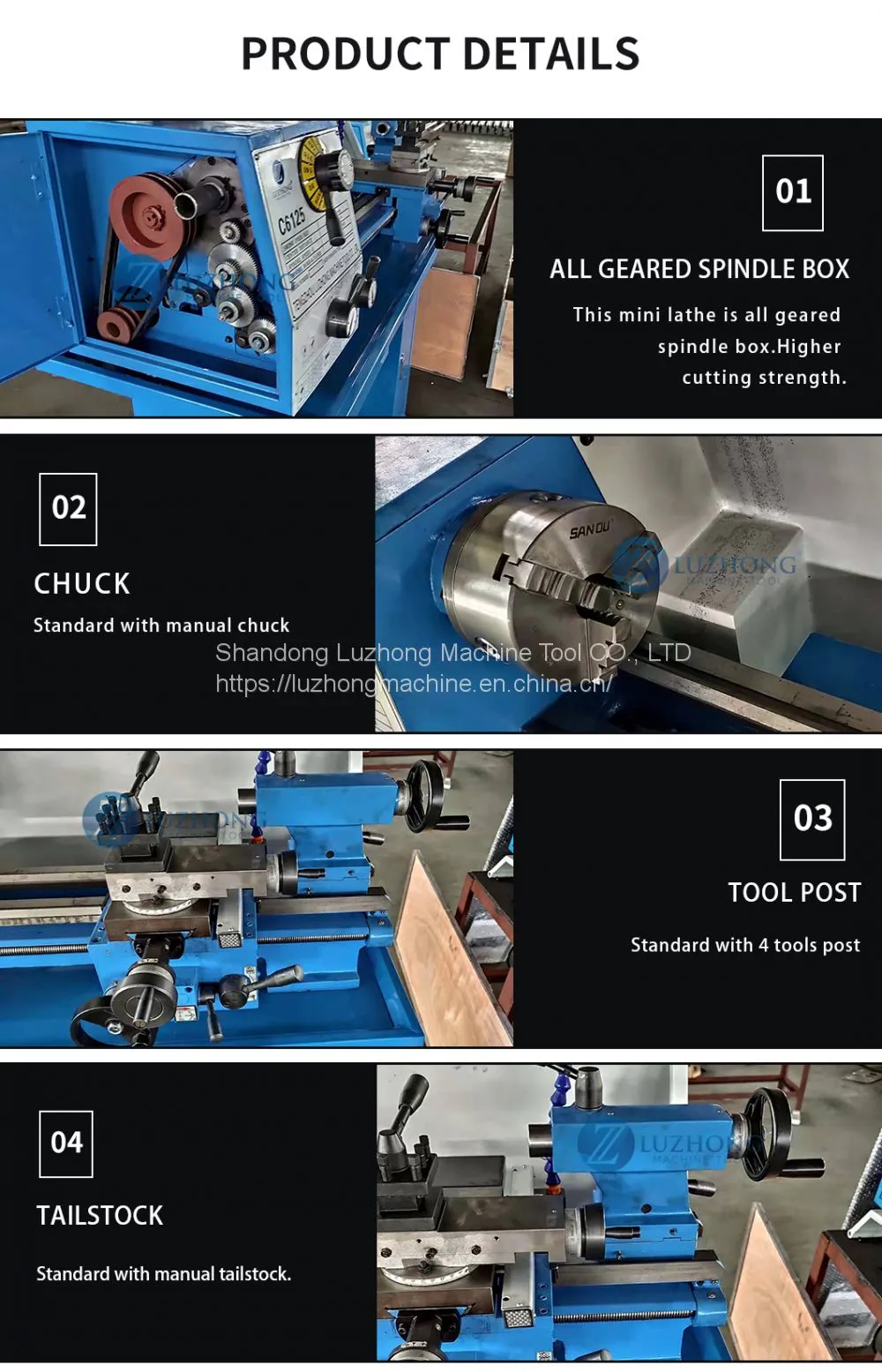

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
