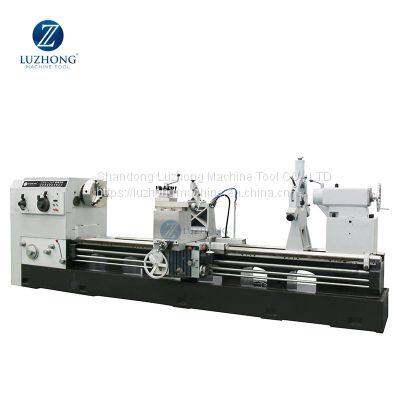

CW6180F/CW6280F/CW61100F/CW62100F Luzhong multi functional heavy duty precision lathe machine
- 1000 Set / Sets per Month
- Qingdao Port
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 20 days
You May Like
-
CW6100L/CW6125L/CW6140L/CW6160L High quality Heavy duty lathe
-
CW6160G Heavy duty lathe with high quality and precision
-
XH7125/XK7125 CNC Milling Machine China High Precision Vertical Milling Machine
-
XH7126/XK7126 CNC Milling Machine China High Precision Vertical Milling Machine
-
XH7136/XK7136 Cheaper high precision cnc vertical milling center with umbrella tool post
-
ZX50C Machine Tool Small Bench Swivel Head Drilling and Milling Machines
Product Details
Brand Name | Luzhong | Place of Origin | China | |
Model Number | CW6180F/CW6280F/CW61100F/CW62100F | Type | Horizontal | |
Certification | GS, CE, RoHS, ISO 9001 | Weight | 1500KG | |
Dimension(L*W*H) | 1550 x 1650mm | Voltage | Customized | |
Condition | New | Power(W) | 11KW | |
Automatic Grade | Automatic | CNC or Not | Normal | |
Max. Swing Diameter | 800mm |
Product Description
CW6180F/CW6280F/CW61100F/CW62100F Luzhong multi functional heavy duty precision lathe machine
Product Description
FEATURES
1. One-piece bed adopts high strength iron to ensure rigidity and precision
2. Ultrasonic frequency quenched guide-ways ensure good wear-resistance
3. Headstock gears hardened and ground to achieve precision and low noise
Product Parameters
Specification | Unit | CW6180F/CW6280F | CW61100F/CW62100F | ||
Swing over bed | mm | 800 | 1000 | ||
Swing over gap | mm | - | 1000 | - | 1200 |
Swing over cross slide | mm | 480 | 680 | ||
Distance between centers | mm | 1500/2000/3000/4000/5000/6000 | 1500/2000/3000/4000/5000/6000 | ||
Guideway width | mm | 600 | 600 | ||
Max. load capacity | T | 4 | 4 | ||
Spindle bore | mm | 104 | 104 | ||
Spindle bore taper | - | Metric φ120/MT5 | Metric φ120/MT5 | ||
Spindle nose type | - | C11 | C11 | ||
Spindle speed steps | - | FWD. 18 steps | FWD. 18 steps | ||
Spindle speed range | rpm | 5.4-720 | 5.4-720 | ||

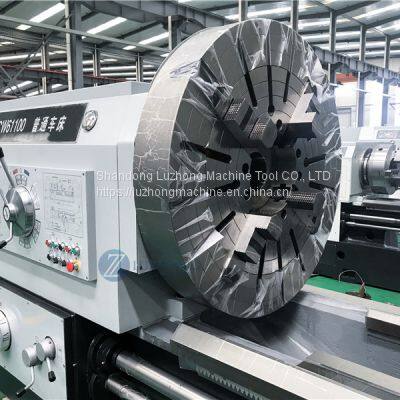

Chuck | mm | φ400 3-jaw manual | φ400 3-jaw manual | ||
Turret/tool post | - | Manual turret 4 position | Manual turret 4 position | ||
Tool shank size | mm | 32x 32 | 32x 32 | ||
X axis travel | mm | 420 | 420 | ||
Z axis travel | mm | 1350/1850/2850/3850/4850/5850 | 1350/1850/2850/3850/4850/5850 | ||
X axis feed grade/range | mm/r | 64/0.05-12.15 | 64/0.05-12.15 | ||
Z axis feed grade/range | mm/r | 64/0.1-24.3 | 64/0.1-24.3 | ||
X axis rapid traverse | mm/min | 2300 | 2300 | ||
Z axis rapid traverse | mm/min | 4000 | 4000 | ||
Metric thread grade/range | mm | 50/1-240 | 50/1-240 | ||
Inch thread grade/range | T.P.I | 26/14-1 | 26/14-1 | ||
Module thread grade/range | mm | - | - | ||
DP thread grade/range | D.P. | - | - | ||
Tailstock quill diameter | mm | φ120 | φ120 | ||
Tailstock quill taper | - | MT6 | MT6 | ||
Tailstock quill travel | mm | 250 | 250 | ||
Main spindle motor | kW | 11 | 11 | ||
Rapid traverse motor | kW | 1.1 | 1.1 | ||
Coolant pump motor | kW | 0.125 | 0.125 | ||

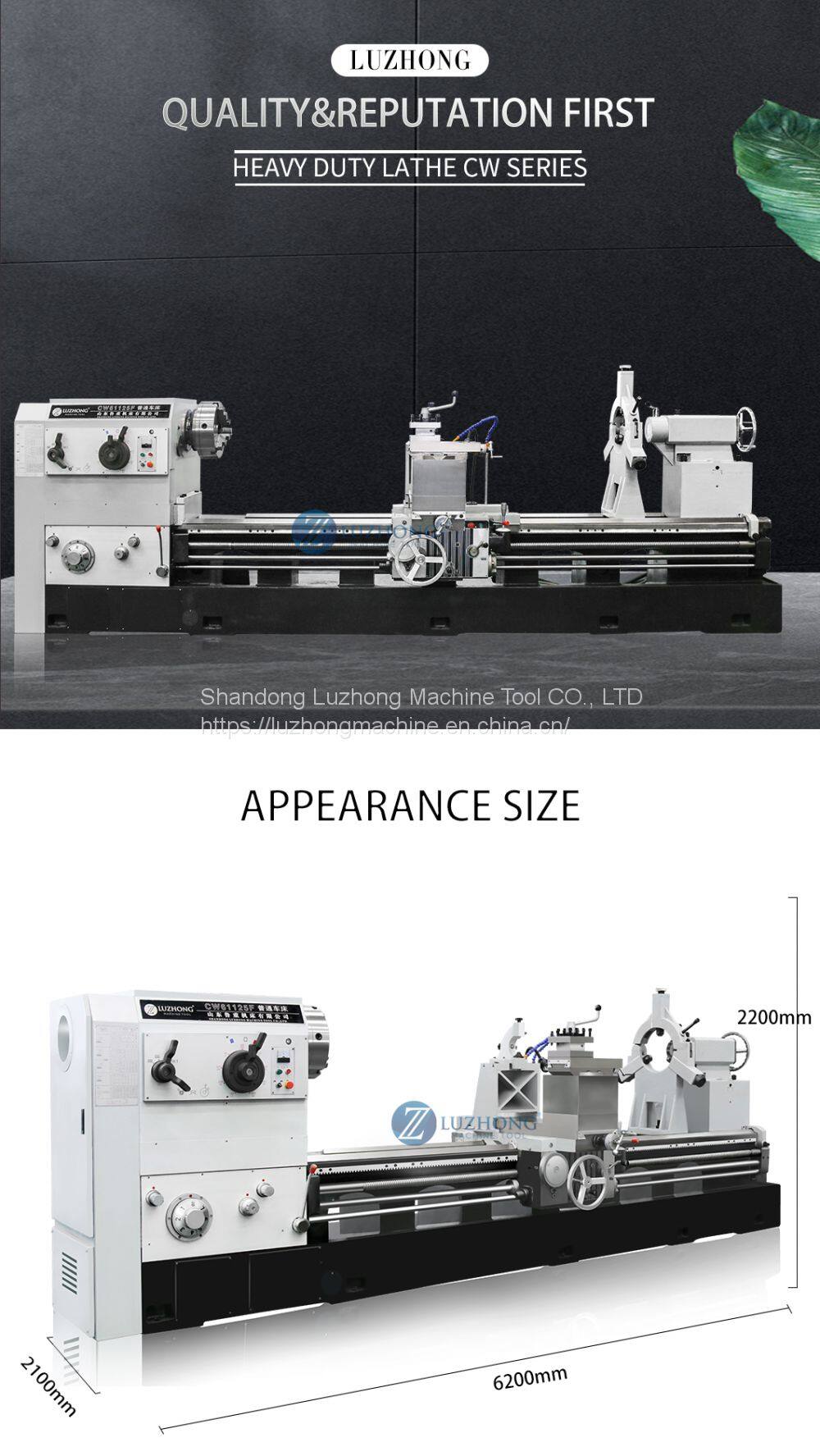

Width x Height | mm | 1550 x 1650 | 1750 x 1750 |

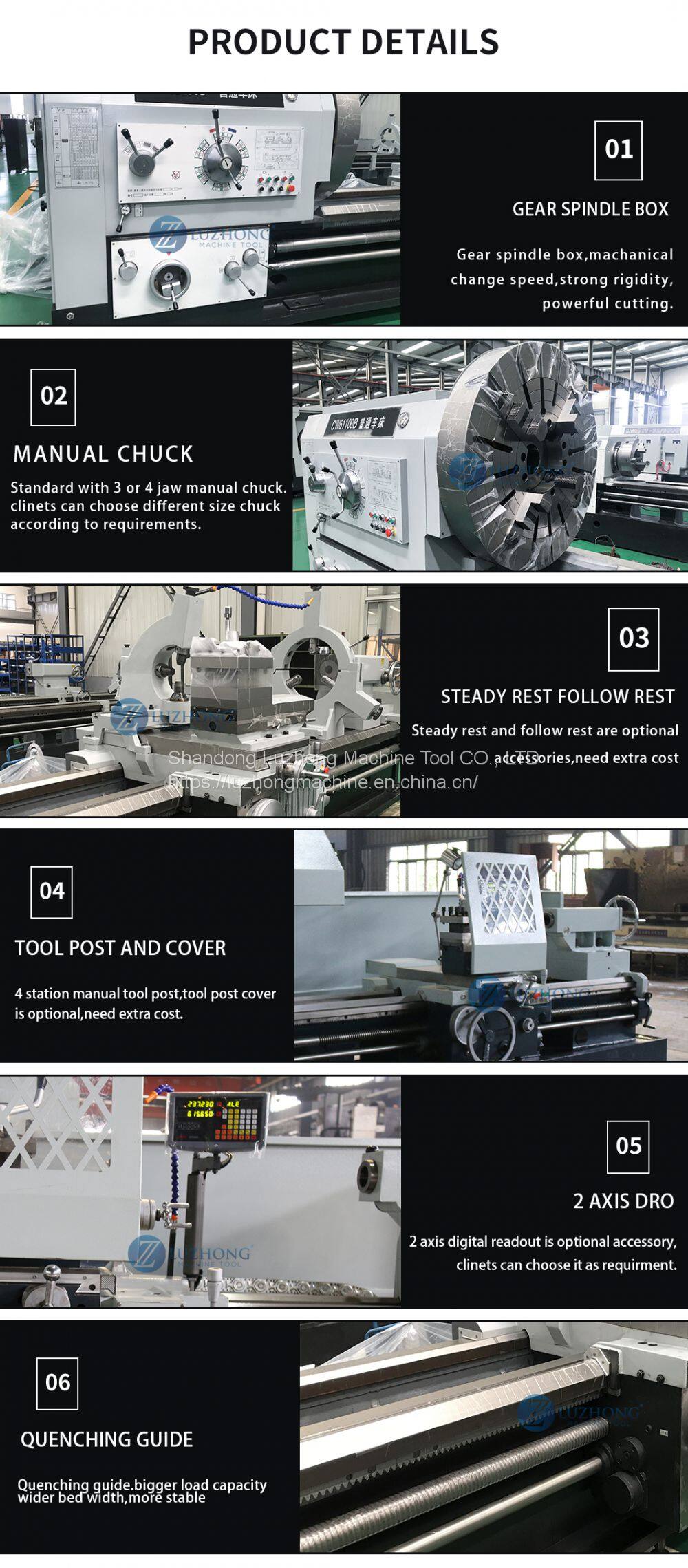

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
