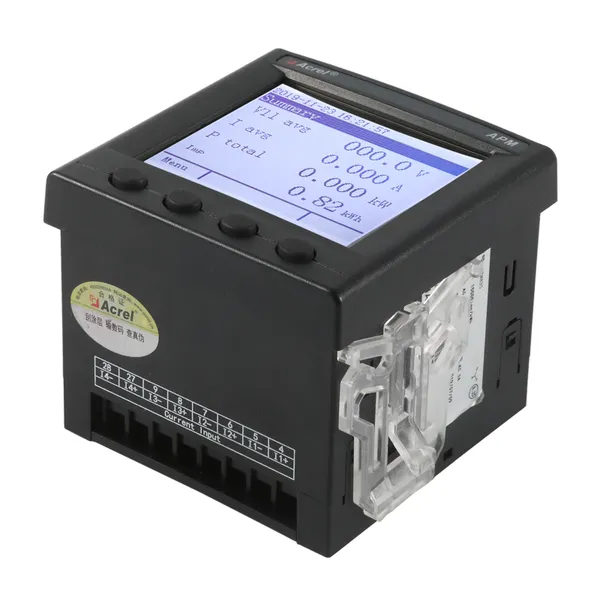

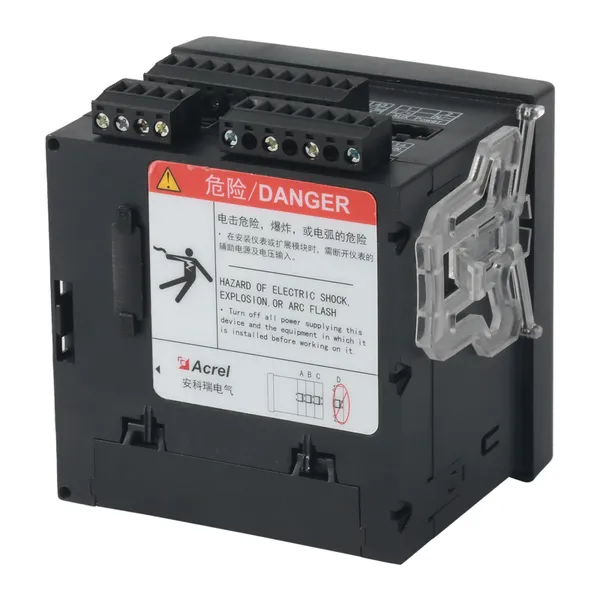

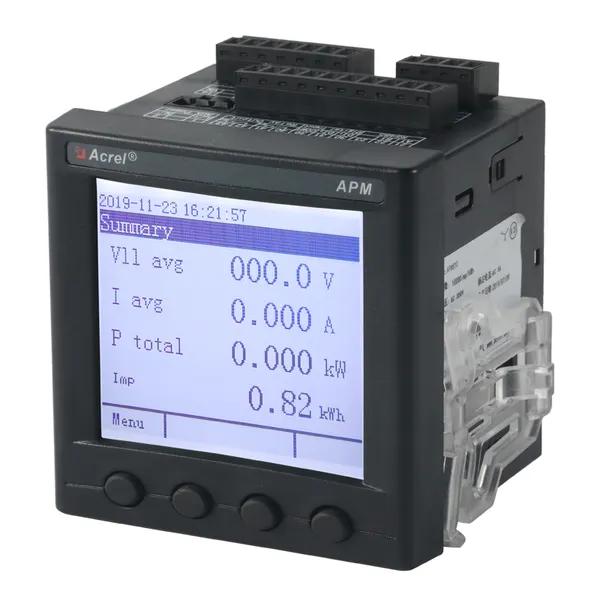

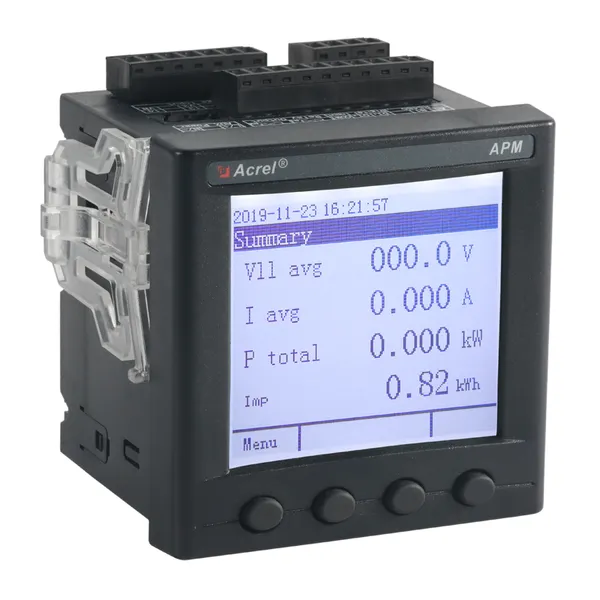

APM830 Three Phase Multi Function Digital Smart Energy Meter

APM series power meters are designed according to IEC standards.

APM series meters have full power measurement, energy statistics, analysis of power quality and network communications and other functions, are mainly used for comprehensive monitoring of the quality of power supply network.

This series of meters use a modular design, with a rich function of the external DI / DO module, AI / AO module,event recording (SOE) module with T-Flash (TF) card, network communication module, can achieve full power measurement of electrical circuit and monitoring of switch status, Dual RS485 with Ethernet interface can realize data copying of RS485 master station, eliminating the need for data switching exchange. PROFIBUS-DP interface can realize high-speed data transmission and networking function.

Charactristics

Main Functions

• Accuracy: Voltage,current and power:class 0.5s  Active power:class 0.5s

• Rated voltage:AC 3*57.7/100V，AC 3*63.5/110V，AC 3*230/400V or AC 3*400/690V

• Rated current:AC 5A or 1A by CTs,support 2.5mm2 line access

• THD & 63st Harmonic analysis with bar chart display

• 66 alarm types and external (SOE) each has 16 SOE,support SD card extend  record

• 2 DI +2 DO (standard)

• RS485 Modbus-RTU

• Optional functions:

• Multi-tariff energy(F)

• 8DI+2DO(MD82)

  TF card(MLOG)

  8AI+4AO(MA84)

  Ethernet(MCE)

• Profibus-DP(MCP)
