1. Product Introduction

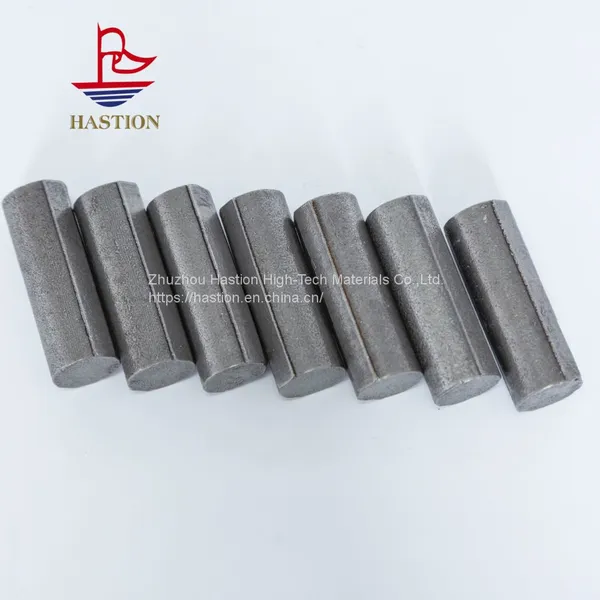

The titanium carbide cermet rod(TiC rod) belongs to the steel-bonded cemented carbide, which is a kind of compound material based on the steel as the binder
phase and used the refractory metal carbide(mainly the titanium carbide and the tungsten carbide) as the hard phase. The TiC rod is the high-hardness and
high-strength titanium-based alloy composite material.
2. Product Physical and Mechanical Characteristics
| Grade | Density (g/cm3) |
Hardness(HRC) | TRS (Mpa) |
Porosity | Abrasion test | Machining | Elastic modulus (×102kg/cm2) |
Specific resistivity (Ωmm2/m) |
Coercive force(HC) | Impact toughness (J/cm2) | Thermal expansion Coefficient(×10-6/ºC) | ||||
| Annealing | Hardening | Annealing | Hardening | Annealing | Hardening | Temperature | a | ||||||||
| GT35 | 6.42~6.55 | ≤48 | ≥68 | ≥1400 | A04 B04 | - | √ | 306 | 298 | 0.812 | ≥3.5 | 68 | ≥3.5 | 20~200 20~700 |
8.43 11.83 |
| TM52 | 6.12~6.25 | sintered state: HRC≥60 |
≥1500 | A04 B04 | 7.2 | × | - | - | - | - | - | - | 20~200 20~700 |
9.16 11.13 |
|
3. Product Application
The TiC rod is mainly casted into the wear parts of crusher hammer, plate hammer, jaw plate, concave, mantle and crushing roller and so on so that the matrix
of high manganese steel steel can be reduced effectively to increase the service life for hammer crushing equipment and saving the maintenance costs accordingly.
HOT SELLING Size: Φ8*60(L) Φ12*50(L);
Φ14*50(L) Φ14*60(L) Φ14*80(L)
Φ16*60(L) Φ16*90(L) ;
Economic Cost Advantage (Common hammer with high manganese steel VS TiC hammer with TiC rod)
1. HASTION Introduction
Zhuzhou Hastion High-tech Materials Co., Ltd.(short for HASTION) is located in Yanling Small and Medium Enterprise Pioneer Park in Zhuzhou
City, Hunan Province, which is covering an area of 60,000 square meters and a planned factory area of 50,000 square meters. Now HASTION have 2 different
productions lines, one is the raw material metal compound and elemental powder(TiC/Cr3C2/VC/NbC/ZrC/HfC/(W,Ti)C/(Ta,Nb)C and so on), the other one is
the titanium carbide cermet rod/insert/plate/customized shape/guide roller and so on(belong to the steel-bonded cemented carbide), until now our products
have been sold to many countries, like the Turkey, Belgium, Australia, Japan, Korea, Vietnam, India, Pakistan, Thailand and etc.
2. HASTION Workshop
HASTION has passed the ISO9001:2008 international quality system authentication. we are well equipped with the high-level machines for production and
inspection.until now HASTION has total over 600tons annual production capacity(TiC rod: 120-180tons; metal powder: 400-450tons), also our prodution
scale is still increasing.
