Product Description

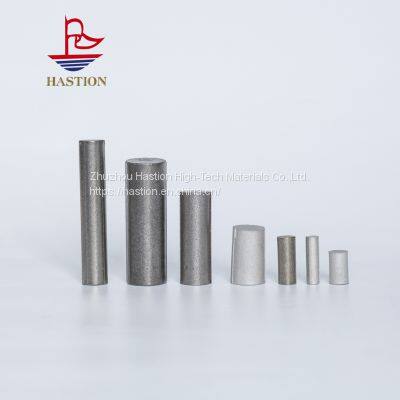

The titanium carbide cermet rod(TiC rod) belongs to the steel-bonded cemented carbide, which is a kind of compound material based on the steel as the binder phase and used the refractory metal carbide(mainly the titanium carbide and the tungsten carbide) as the hard phase. The TiC rod is the high-hardness and high-strength titanium-based alloy composite material.
Product Physical and Mechanical Characteristics
| Grade | Density (g/cm3) |
Hardness(HRC) | TRS (Mpa) |
Porosity | Abrasion test | Machining | Elastic modulus (×102kg/cm2) |
Specific resistivity (Ωmm2/m) |
Coercive force(HC) | Impact toughness (J/cm2) | Thermal expansion Coefficient(×10-6/ºC) | ||||
| Annealing | Hardening | Annealing | Hardening | Annealing | Hardening | Temperature | a | ||||||||
| GT35 | 6.42~6.55 | ≤48 | ≥68 | ≥1400 | A04 B04 | - | √ | 306 | 298 | 0.812 | ≥3.5 | 68 | ≥3.5 | 20~200 20~700 |
8.43 11.83 |
| TM52 | 6.12~6.25 | sintered state: HRC≥60 |
≥1500 | A04 B04 | 7.2 | × | - | - | - | - | - | - | 20~200 20~700 |
9.16 11.13 |
|
Product Application

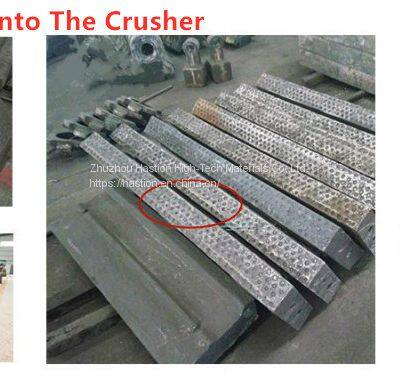

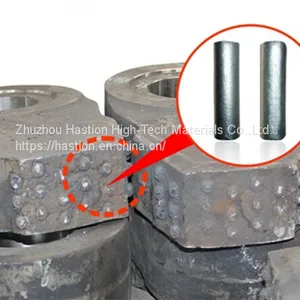

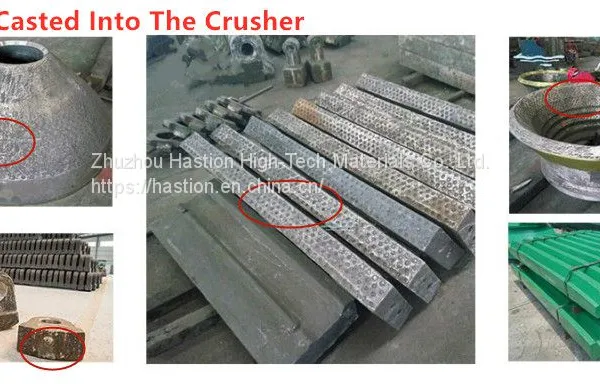

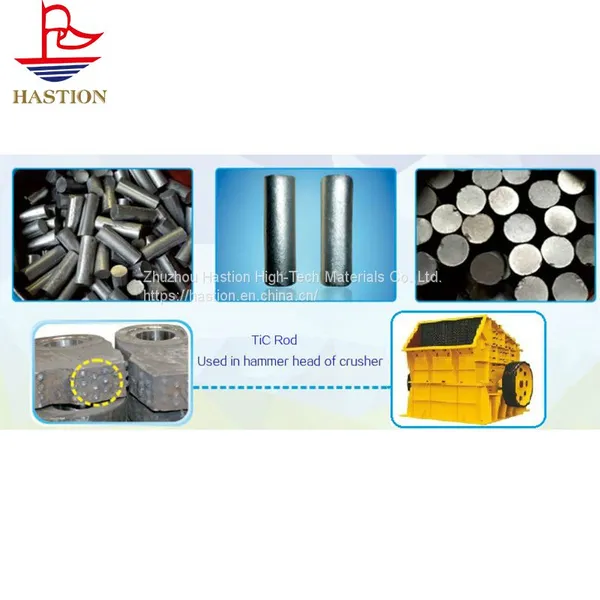

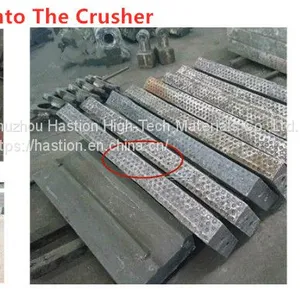

The TiC rod is mainly casted into the wear parts of crusher hammer, plate hammer, jaw plate, concave, mantle and crushing roller and so on so that the matrix of high manganese steel steel can be reduced effectively to increase the service life for hammer crushing equipment and saving the maintenance costs accordingly.
HOT SELLING Size: Φ8*60(L) Φ12*18(L); Φ12*30(L); Φ12*40(L); Φ12*50(L);
Φ14*50(L) Φ14*60(L) Φ14*80(L)
Φ16*60(L) Φ16*90(L) ;
Economic Cost Advantage (Common hammer with high manganese steel VS TiC hammer with TiC rod)
| Hammer Mode | Crusher Equipment Quantity (Set) |
Each Group of Hammer Weight(KG/Group) | Each Group Service Life (Day/Group) |
Yearly Usage Hammer Quantity (Group/ Year) |
Quantity (KG/Year) |
Wearing Part Material Cost (US$/KG) |
Total Cost (US$) |
Saving Cost(NOT included the replacement cost) (US$/Year) /Set |
||||
| PART A | PART B(6%-8% weight of hammer) | PART A | PART B | PART A | PART B | PART A | PART B | |||||
| Common Hammer (PART A & B is Manganese Steel) |
1 | 280 | 15 | 24 | 6720 | 1.5 | 10080 | |||||

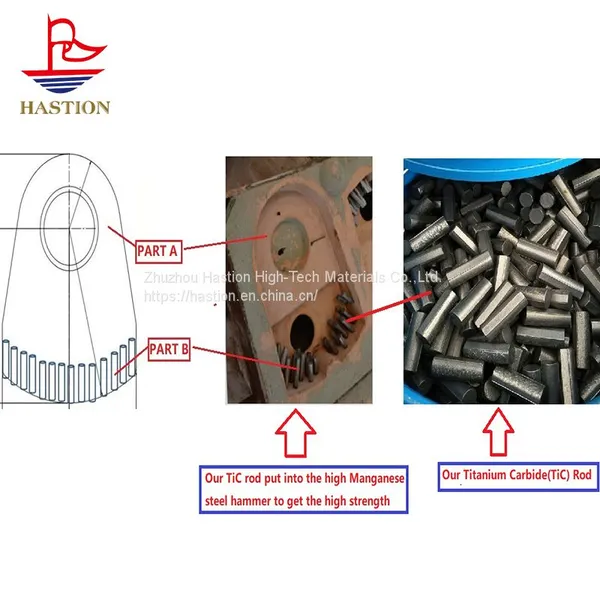

| TiC Hammer (PART A is manganese steel, PART B is our TiC rod) | 1 | 260 | 20 | 73 | 5 | 1300 | 100 | 1.5 | 15 | 1950 | 1500 | 6630 |
| Note: If you have 3sets of crusher equipment to be operated, so the total saving cost is US$19890(US$6630*3). If the much heavier hammer, much cost will be saved. | ||||||||||||
About Us
HASTION Workshop
HASTION has passed the ISO9001:2008 international quality system authentication. we are well equipped with the high-level machines for production and inspection.until now HASTION has total over 600tons annual production capacity(TiC rod: 120-180tons; metal powder: 400-450tons), also our prodution scale is still increasing.
