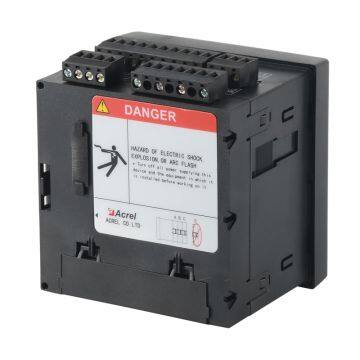

Help Center3 Phase Digita Power Meter With Profibus-DP SD Harmonics APM801
Related Products
-
Three Phase Smart Power Quality Energy Analyser Meter APM800NegotiableMOQ: 1 Piece -
APM810 Three Phase Multifunction Energy Meter With RS485 ModbusNegotiableMOQ: 1 Piece
-
Three Phase Multi Function Electric Power Meter APM800NegotiableMOQ: 1 Piece
-
APM830 Three Phase Multi Function Digital Smart Energy MeterNegotiableMOQ: 1 Piece
-
Full Power Measurement Modular Design AC Energy Multi-functional Power Meter APM800NegotiableMOQ: 1 Piece
APM series power meters are designed according to IEC standards.
APM series meters have full power measurement, energy statistics, analysis of power quality and network communications and other functions, are mainly used for comprehensive monitoring of the quality of power supply network.
This series of meters use a modular design, with a rich function of the external DI / DO module, AI / AO module,event recording (SOE) module with T-Flash (TF) card, network communication module, can achieve full power measurement of electrical circuit and monitoring of switch status, Dual RS485 with Ethernet interface can realize data copying of RS485 master station, eliminating the need for data switching exchange. PROFIBUS-DP interface can realize high-speed data transmission and networking function.
Charactristics
Main Functions
Accuracy: Voltage,current and power:class 0.5s Active power:class 0.5s
Rated voltage:AC 3*57.7/100V，AC 3*63.5/110V，AC 3*230/400V or AC 3*400/690V
Rated current:AC 5A or 1A by CTs,support 2.5mm2 line access
THD & 63st Harmonic analysis with bar chart display
66 alarm types and external (SOE) each has 16 SOE,support SD card extend record
2 DI +2 DO (standard)
RS485 Modbus-RTU
Optional functions:
Multi-tariff energy(F)
-
8DI+2DO(MD82)
TF card(MLOG)
8AI+4AO(MA84)
Ethernet(MCE)
Profibus-DP(MCP)
Dimensions and Wirings
Datasheet
| Input | |
| Net | three-phase three-wire,three-phase four-wire |
| Frequency | 45~65HZ |
| Rated voltage | AC 3*57.7/100V，AC 3*63.5/110V,AC 3*230/400V or AC 3*400/690V |
| Rated current | AC 1A or 5A, 2.5mm2 wire can be connected |
| overload | 1.2times rated value(contineously);10times rated value/1second |
| power consumption | |
| Digital input | dry contact input,inner power supply |
| Accuracy | |
| voltage current power consumption | 0.5s |
| active electrical energy | 0.5s |
| reactive electrical energy | 2s |
| harmonic | class 1 |
| Output | |
| Relay output | contact type:main body normal open,module changeover contact; contact capacity:AC250V/3A DC30V/3A |
| Impulse output | output type optcoupler impulse |
| Analog output | DC 0~20mA,4~20mA,0~5V,1~5V |
| Analog input | DC 0~20mA,4~20mA,0~5V,1~5V |
| Communication | |
| RS485/Modbus-RTU communication and DLT645 protocol; | |
| RS232/Profibus-DP protocol; | |
| RJ45(Ethernet)/Modbus-TCP,http and DHCP protocol... | |
| Optional functions | |
| Multi-rate(F) | |
| 8DI+2DO(MD82) | |
| SD card(MLOG) | |
| 8AI+4AO(MA84) | |
| RS485(MCM) | |
| Ethernet(MCE) | |
| Profibus-DP(MCP) | |
