Help CenterDouble Heads Tracking Type Servo Piston Filling Machine
Related Products
-
Automatic 5 Heads Liquid Weighing Filling MachineCNY 180000 - 230000MOQ: 1 Set -
Automatic Single Head Weight and Fill Machine Weighing Filling Machine for Granule/biscuits/cereal/jellyCNY 150000 - 200000MOQ: 1 Set
-
Hot Sell Red Wine /vodka/Whisky/wine Filling Automatic Customized 4,6,8,10,12,14,16,18 Heads Negative Pressure Filling MachineCNY 85000 - 100000MOQ: 1 Set
-
op Selling Popular Professional Piston Automatic Filling Machine Ketchup Stick Filling Machine Chilli Sauce Filling MachineCNY 80000 - 120000MOQ: 1 Set
-
24 Heads Automatic Pure Water/Mineral Water/Liquid Plastic Bottle Filling Capping Machine Production LineCNY 250000 - 300000MOQ: 1 Set

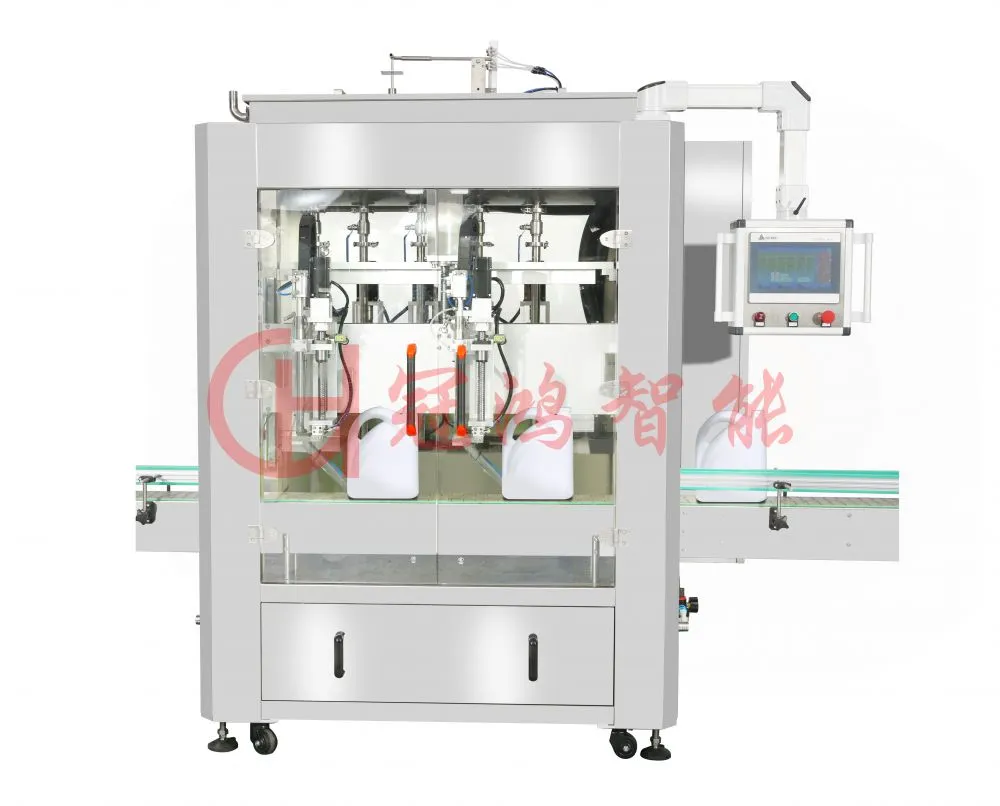

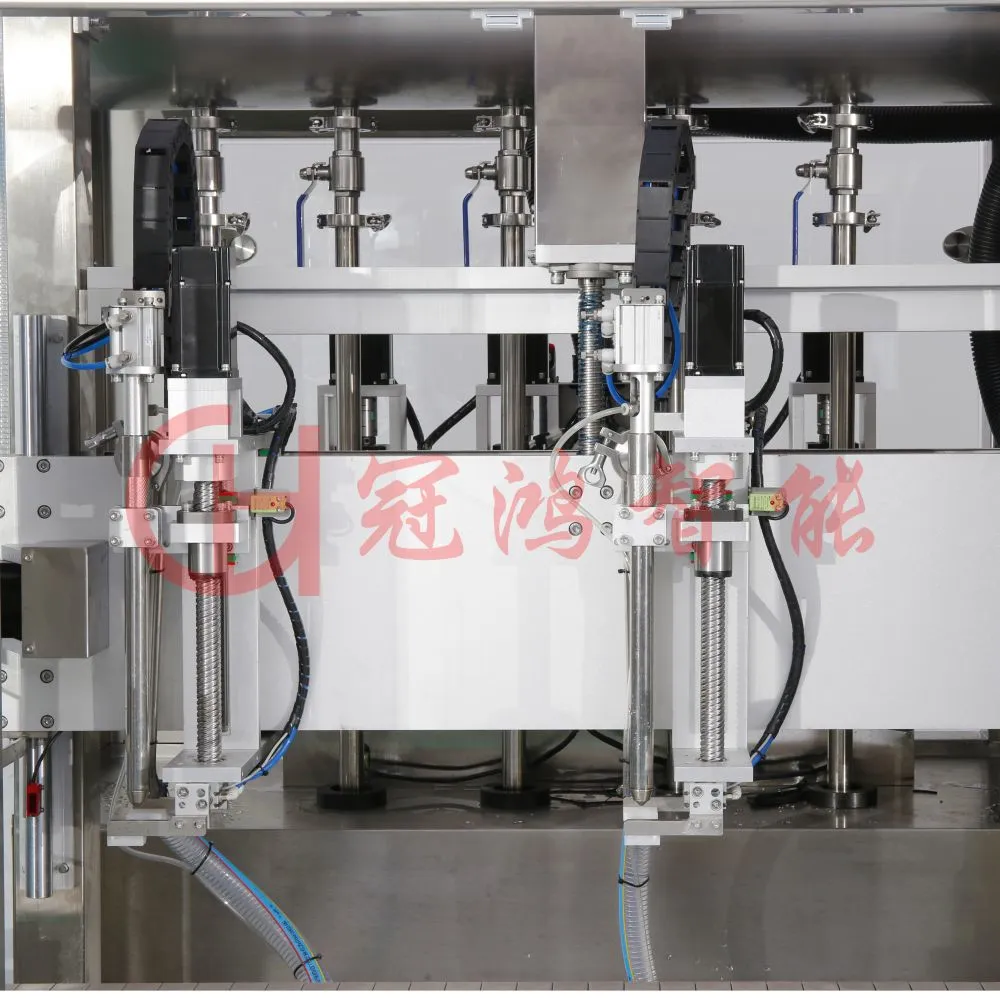

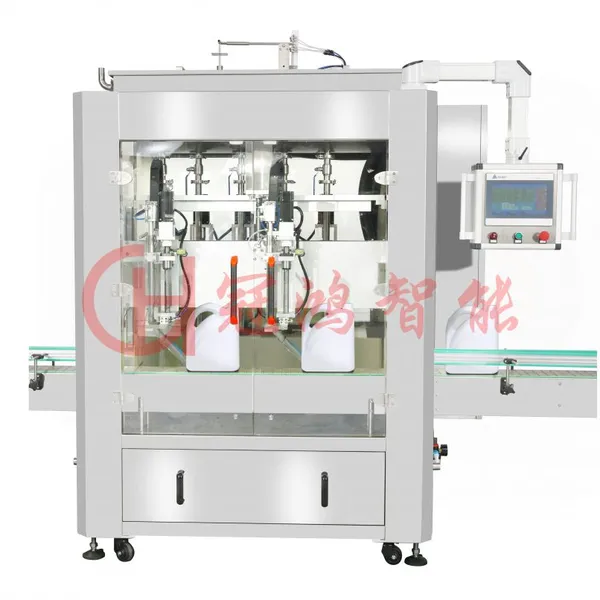

Double heads tracking type servo piston filling machine consists of chain conveyor, composed of hattle clamping automatic alignment mechanism, filling mechanism, automatic servo piston system,electric lifting adjustment mechanism, waterproof electric cabinet, touch man-machine operationinterface, etc.This machine has the function of one-button quick changeover, which can be applied to the automatic flling equipment for bottles of different specifications.
Automatic tracking type double heads high speed filling machine
1.Filling head : 2 heads
2.Filling capacity: less than 5000ml
3.Filling method: full servo drive tracking filling
4.Filling speed: about 2400-3000 bottles/hour (based on 500ml bottles, the actual size of bottle mouth and materials)
5.Filling accuracy: ±1%
6.Material: Filling frame adopts 304 stainless steel
7.Program control: PLC+ touch screen

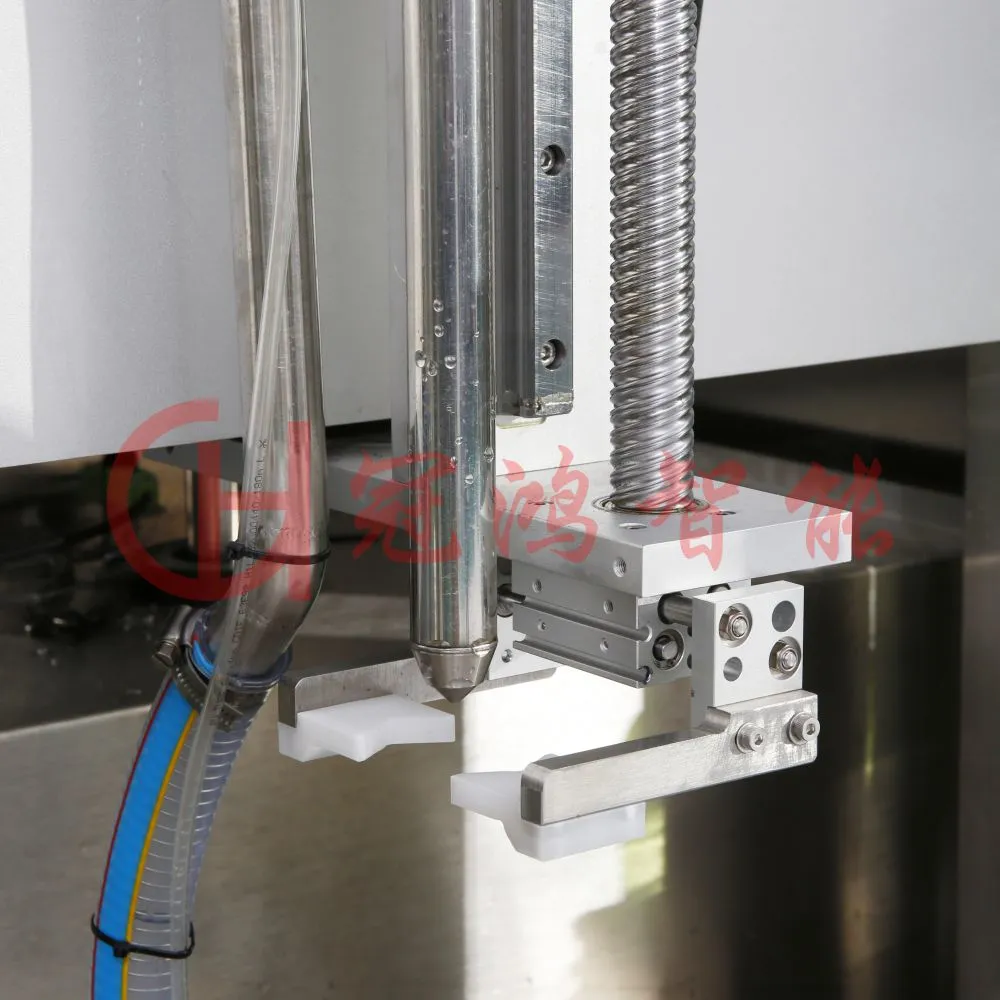

8.Filling nozzle and feed tank contact liquid parts materials: 304# stainless steel, food grade PVC
9.Pressure: 0.6-0.8 MPa

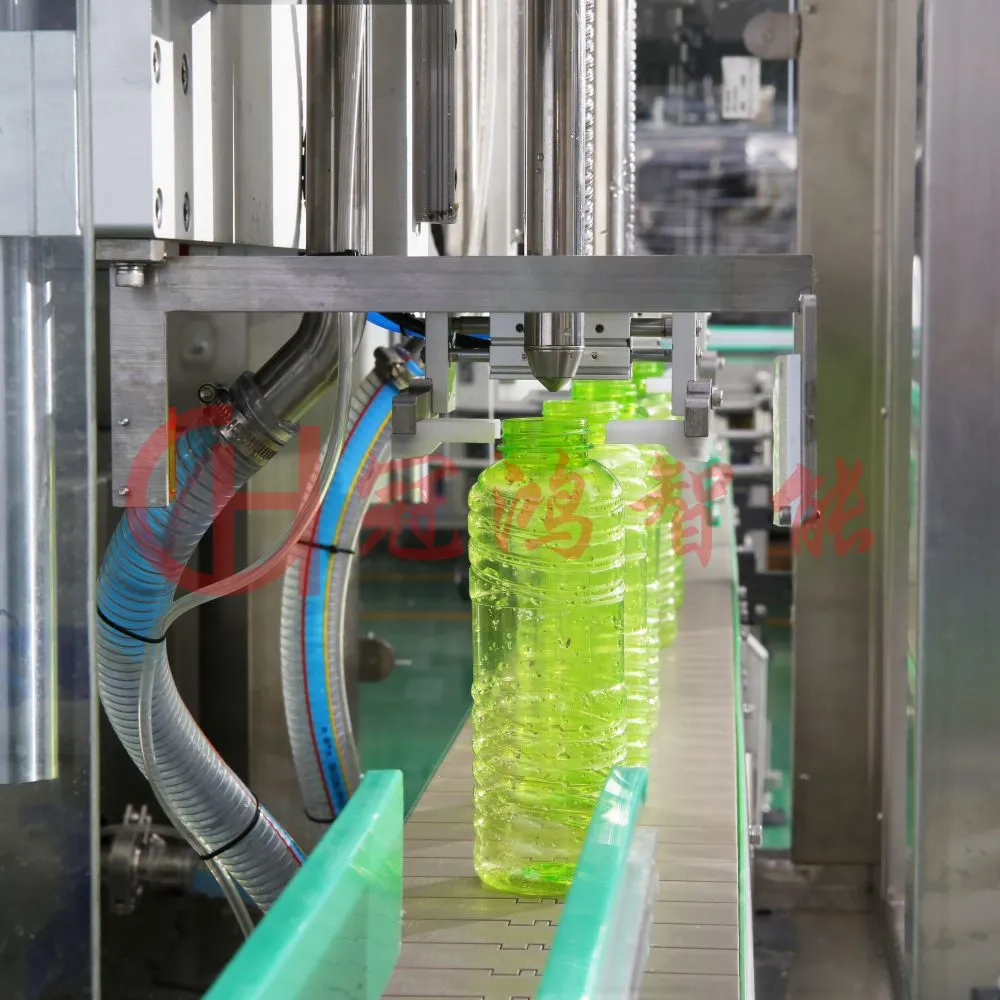

10.Conveyor belt :82mm wide POM chain strip, 0-15 m/min, 850mm±25mm from the ground
11.Conveying motor: 370W variable frequency adjustable-speed motor
12.Power: about 4KW/AC220V 50/60Hz
13.Material tank capacity: about 200 litres (with level switch).
