Beifang 12PSB-BFA Injection Pump Test Bench Pump Common Rail Tester Automotive Tools
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
1998
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BF198 Expert Diagnostic Machine for All Cars Vehicle Tools Diesel Injectors Test Bench Diesel Injector Pump Test BenchNegotiableMOQ: 1 -
PQ1000 Diesel Injection Pump Test Bench Auto Diagnostic Tool Vehicle Tools Testing Equipment Common Rail Diesel Injector TesterNegotiableMOQ: 1
-
Beifang 12PSB-BFB Diesel Pump Test Equipment Pump Common Rail TesterNegotiableMOQ: 1
-
Beifang Brand High Quality EPS100 Common Rail Injectors Detector Common Rail Injectors Test BenchNegotiableMOQ: 1
-
BF198 Expert High Pressure Injector Common Rail Test Bench Diesel Pump Bench Test Diagnostic Machine for All CarsNegotiableMOQ: 1
Beifang 12PSB-BFA diesel fuel pump testing diagnostic equiment
Product Description

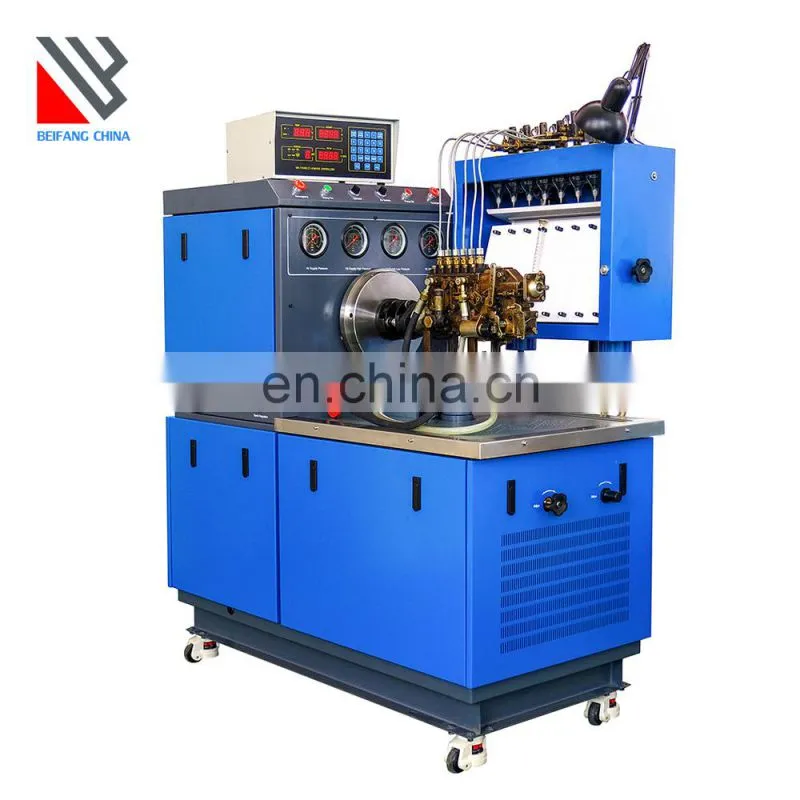

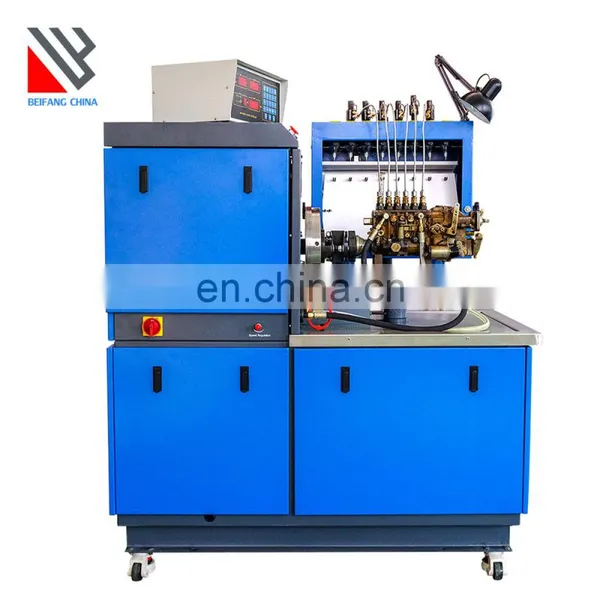

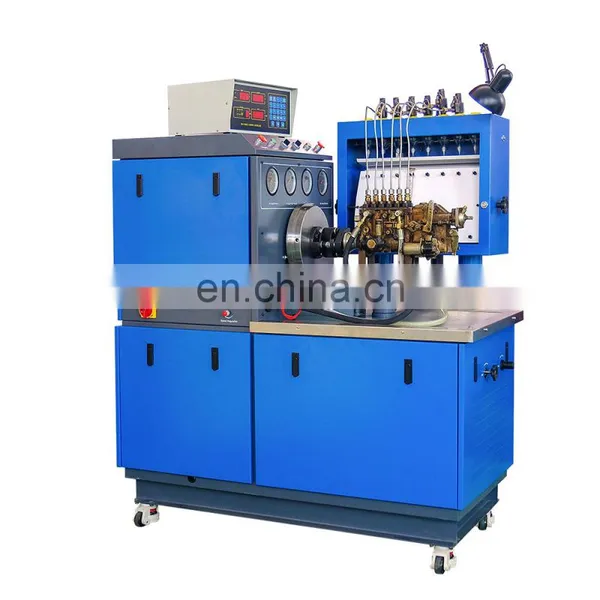

Dieselpump test bench 12PSB-BFA is a high quality test bench for mechanical pumps, like inline pumps, distributor pumps. Can perform various function's adjusting and testing to the injection pump.
Technical Parameters
Beifang 12PSB-BFA diesel fuel pump testing diagnostic equiment |
||
Output |
7.5 kW |
|
Frequency |
50/60 Hz |
|
Measuring size |
45 ml |
|
Number of measuring sizes |
8 |
|
Axis height to EP axis center |
125 ± 0.1 mm |
|
Stroke counter |
1 – 9,999 strokes |
|
Speed range |
0 – 4,000 (rpm) |
|
Maximum permitted ambient temperature |
40°C |
|
Pressure gauge: Low pressure |
0 – 350 kPa |
|
Pressure gauge: High pressure |
0 – 350 kPa |
|
Calibrating oil tank |
50 l |
|
Retaining capacity for contaminated oil |
approx. 10 l |
|
Dimensions (W x H x D) |
1800 x 750 x 1850 |
|
Weight |
850 kg |
|
Features&Function
Features
1.The most distinctive low-noise pump motor,independent research and development for the North technology,the school pump more comfortable environmrnt,but also facilitate the diagnosis of abnormal test pump failure.2.Selection of the United States bourns original speed potentiometer,feed good,high control accuracy,and completely solve the frequent use of the environment in the life of a shaort easyto damage.School pump without having to worry about its damage and affect the work.
3.The use of independent research and development of modular solenoid valve drive power,excellent protection design allows long time short circuit without damage.
4.The installation of fuel tank filters to enhance the cleanliness of test oil,ectend the life of standard fuel injector.
5.To strengthen the universal joint,is to repair high-speed P7100/PW2000/PW3000 high-speed pump safety and security.
6.Thickened test bed base,strengthen the cross arms,the whole more stable and firm.
7.Unique wire fixed, beautiful thick sturdy border,a change in the past border weak and easily deformed shortcomings.
Function
1.For testing conventional inline fuel-injection pumps and regulators
2.For testing conventional distributor injection pumps with mechanical and electronic regulators
3.For testing each cylinder's oil supply quantity under different rotate speed.
4.For testing each cylinder's injection timing under static state.
5.For testing the performance of mechanical governor.
6.For testing the electromagnetic valve of distributor pump
7.For testing the tightness of injection pump.
8.For testing the pump body internal pressure and oil return pressure of distributor pump.
9.Check the performance of pressure equalizer, pneumatic governor.
10.Equipped with DC.1 2V/24V power supply, used for magnetic valve's driving and testing.
2.For testing conventional distributor injection pumps with mechanical and electronic regulators
3.For testing each cylinder's oil supply quantity under different rotate speed.
4.For testing each cylinder's injection timing under static state.
5.For testing the performance of mechanical governor.
6.For testing the electromagnetic valve of distributor pump
7.For testing the tightness of injection pump.
8.For testing the pump body internal pressure and oil return pressure of distributor pump.
9.Check the performance of pressure equalizer, pneumatic governor.
10.Equipped with DC.1 2V/24V power supply, used for magnetic valve's driving and testing.
Company Introduction
Packing&Shipping
Our Advantages
FAQ
1.Are you a manufacturer or trade company?
We are direct manufacturer with more than 10 years experience
2.What certification do you have ?
We have CE, ISO SGS Certification etc
3.How about the delivery time?
10 days after getting deposit
4.Do you also sell related accessories and repair tools?
Yes, except test bench,we also produce spare parts and repair or measuring tools, also offer factory price for you
5.Do you have foreign agent ?
Sure, we have built some several agents in the world and you can also be our agent.
We are direct manufacturer with more than 10 years experience
2.What certification do you have ?
We have CE, ISO SGS Certification etc
3.How about the delivery time?
10 days after getting deposit
4.Do you also sell related accessories and repair tools?
Yes, except test bench,we also produce spare parts and repair or measuring tools, also offer factory price for you
5.Do you have foreign agent ?
Sure, we have built some several agents in the world and you can also be our agent.
