BF198 Expert diagnostic machine for all cars vehicle tools diesel injectors test bench diesel injector pump test bench

Name: BF198 Expert diagnostic machine for all cars vehicle tools diesel injectors test bench diesel injector pump test bench
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

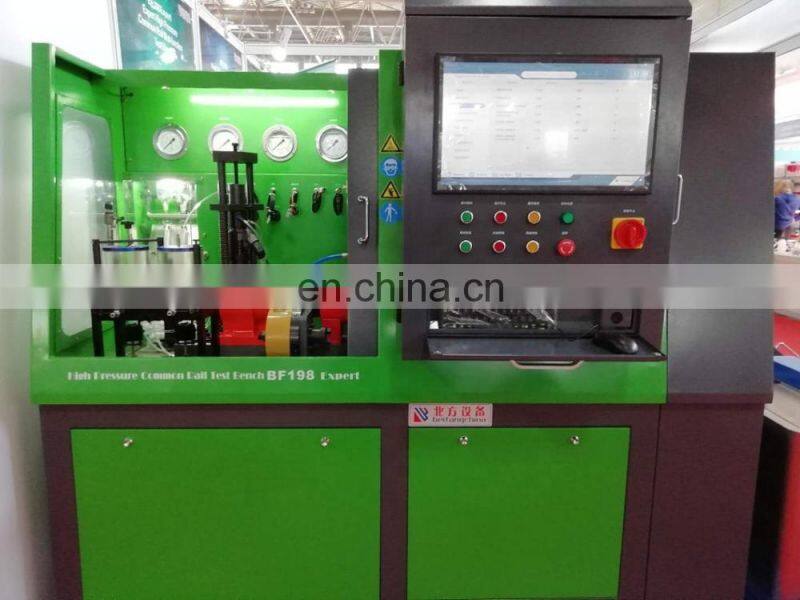

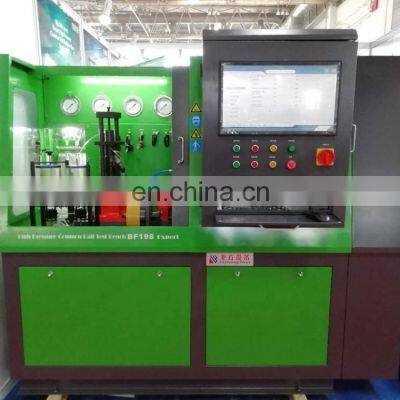

BF198 Expert testing diesel common rail injector machine

Product Description

BF198 Expert High Pressure Common Rail Muti-function Test Bench is the universal test equipment that integrates electronic control high pressure common rail pumps, common rail, diesel injectors, HEUI injectors and EUI/EUP. It can test the electric high pressure common rail system, HEUI such as C7C9, and EUI/EUP such. The equipment adopt a humanity control interface to control parameters such as injection pressure, pulse width, frequency, and metering valve duty cycle etc. The equipment uses an industrial computer system for better stability and longer life.

Technical Parameters

BF198 Expert testing diesel common rail injector machine
Name	testing diesel common rail injector machine
Model	BF198 Expert
Rated output power	15 KW
Voltage	220V/380V/415V,50-60Hz,3Phase
Speed of the test bench	0-3000r/min
Spindle steering	Forward /backward
Continuous injection times	0-1000 times
Rail pressure	0-2300 bar
Pulse width	100-3000 μ
Test oil filtration rating	less than 5μ
Oil temperature	38±2℃
Oil tank capacity	60 L
Size(mm)	196011001840
Weight(kg)	1200

Function

No.	Function
1	Test range: All brand injector and common rail pump
2	Testing common rail pump fuel metering valve performance
3	Test the seal of electronic controlled injector
4	Testing common rail pump gear pump performance
5	Testing common rail pump high pressure oil supply performance
6	Testing common rail pressure sensor performance
7	Testing common rail pipe pressure limiting valve performance
8	Test the high pressure common rail injector sealing and observe the atomization effect
9	Measuring high-pressure common rail injector high-speed fuel quantity
10	Measuring high-pressure common rail injector high-speed fuel quantity
11	Measuring the high-pressure common rail injector medium-speed fuel quantity
12	Measuring the high pressure common rail injector idle oil quantity
13	Measuring high pressure common rail injector pre-injection conditions
14	Measuring the fuel return quantity of the common rail injector
15	High pressure common rail injector can be high pressure washed
16	Users can setting the characteristics of rail pressure, pulse width and fuel measuring time
17	Can detect Denso HPO pump
18	Can detect piezoelectric crystal injector
19	With adapters can detect EUI/EUP
20	Can test CP1,CP2,CP3 etc electrical pumps.
21	With the special fuel collecting device can test HEUI injector and actuating pump
22	Add the corresponding module to test the resistance and inductance of the injector
23	Can test the opening pressure of the injector and the solenoid valve
24	Add the corresponding module, it can test VP37, RED4, VP44, DENSO-VE electronically controlled pump

Company Introduction

Packing&Shipping

Our Advantages

FAQ

1.Are you a manufacturer or trade company?
We are direct manufacturer with more than 10 years experience

2.What certification do you have ?
We have CE, ISO SGS Certification etc

3.How about the delivery time?
10 days after getting deposit

4.Do you also sell related accessories and repair tools?
Yes, except test bench,we also produce spare parts and repair or measuring tools, also offer factory price for you

5.Do you have foreign agent ?
Sure, we have built some several agents in the world and you can also be our agent.
