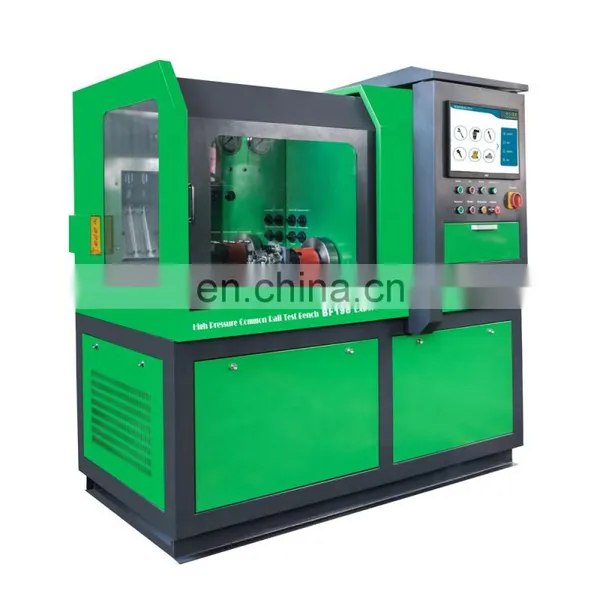

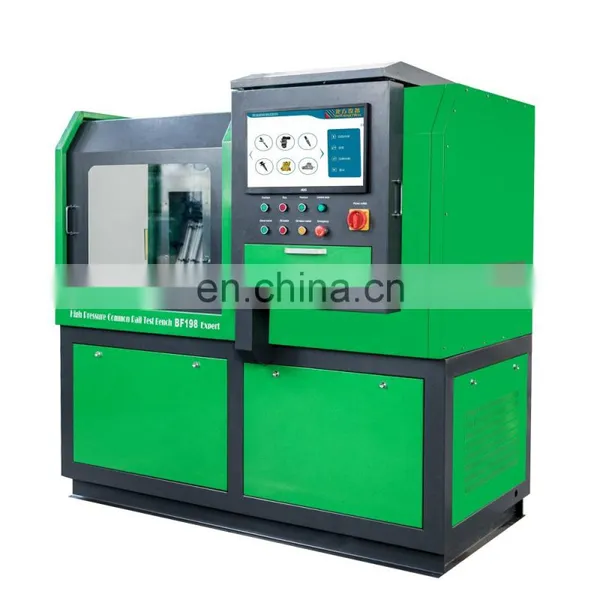

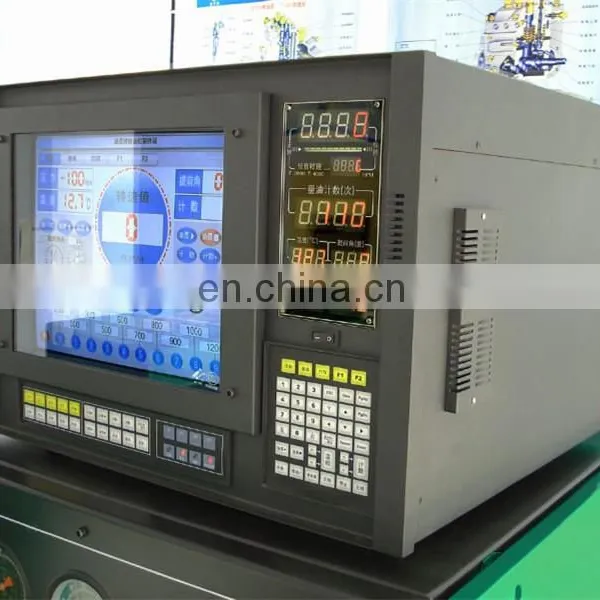

BF198 Expert High Pressure Injector Common Rail Test Bench Diesel Pump Bench Test Diagnostic Machine for All Cars photo-1
BF198 Expert High Pressure Injector Common Rail Test Bench Diesel Pump Bench Test Diagnostic Machine for All Cars photo-2
BF198 Expert High Pressure Injector Common Rail Test Bench Diesel Pump Bench Test Diagnostic Machine for All Cars photo-3
BF198 Expert High Pressure Injector Common Rail Test Bench Diesel Pump Bench Test Diagnostic Machine for All Cars photo-4
BF198 Expert High Pressure Injector Common Rail Test Bench Diesel Pump Bench Test Diagnostic Machine for All Cars photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
1998
Annual Export Value:
Below US$1 Million
Contact Supplier Request Quote Chat Now
Taian North Test Equipment Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

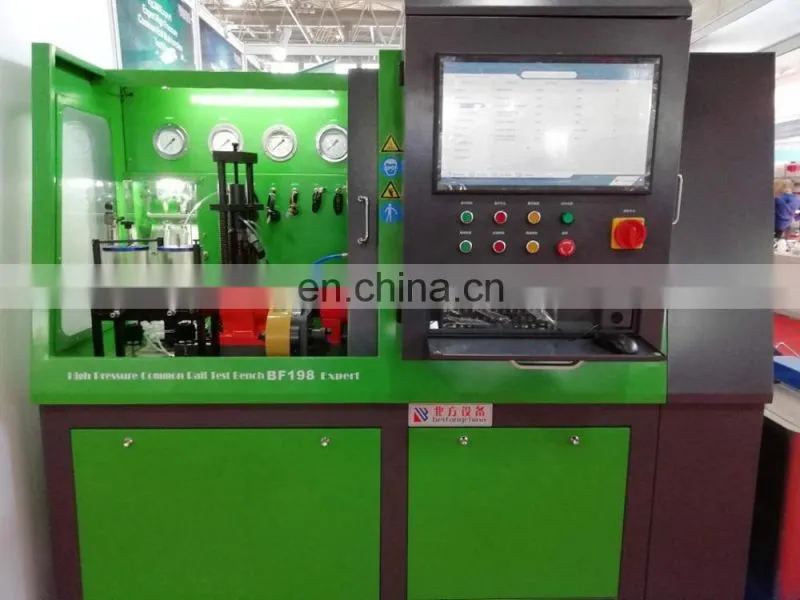

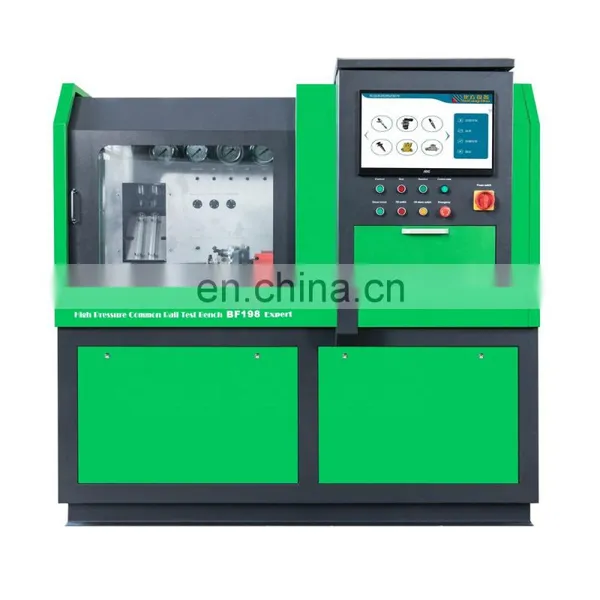

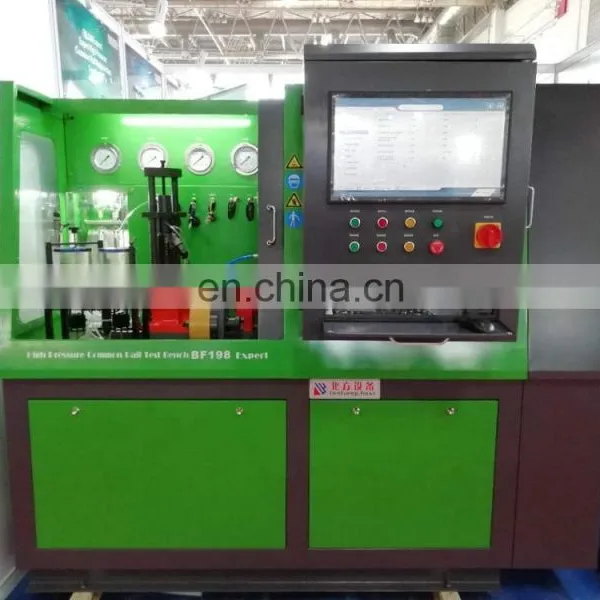

BF198 Expert testing diesel common rail injector machine
Product Description
BF198 Expert High Pressure Common Rail Muti-function Test Bench is the universal test equipment that integrates electronic control high pressure common rail pumps, common rail, diesel injectors, HEUI injectors and EUI/EUP. It can test the electric high pressure common rail system, HEUI such as C7C9, and EUI/EUP such. The equipment adopt a humanity control interface to control parameters such as injection pressure, pulse width, frequency, and metering valve duty cycle etc. The equipment uses an industrial computer system for better stability and longer life.
Technical Parameters
BF198 Expert testing diesel common rail injector machine
Name
testing diesel common rail injector machine
Model
BF198 Expert
Rated output power
15 KW
Voltage
220V/380V/415V,50-60Hz,3Phase
Speed of the test bench
0-3000r/min
Spindle steering
Forward /backward
Continuous injection times
0-1000 times
Rail pressure
0-2300 bar
Pulse width
100-3000 μ
Test oil filtration rating
less than 5μ
Oil temperature
38±2℃
Oil tank capacity
60 L
Size(mm)
1960*1100*1840
Weight(kg)
1200
Function
No.
Function
1
Test range: All brand injector and common rail pump
2
Testing common rail pump fuel metering valve performance
3
Test the seal of electronic controlled injector
4
Testing common rail pump gear pump performance
5
Testing common rail pump high pressure oil supply performance
6
Testing common rail pressure sensor performance
7
Testing common rail pipe pressure limiting valve performance
8
Test the high pressure common rail injector sealing and observe the atomization effect
9
Measuring high-pressure common rail injector high-speed fuel quantity
10
Measuring high-pressure common rail injector high-speed fuel quantity
11
Measuring the high-pressure common rail injector medium-speed fuel quantity
12
Measuring the high pressure common rail injector idle oil quantity
13
Measuring high pressure common rail injector pre-injection conditions
14
Measuring the fuel return quantity of the common rail injector
15
High pressure common rail injector can be high pressure washed
16
Users can setting the characteristics of rail pressure, pulse width and fuel measuring time
17
Can detect Denso HPO pump
18
Can detect piezoelectric crystal injector
19
With adapters can detect EUI/EUP
20
Can test CP1,CP2,CP3 etc electrical pumps.
21
With the special fuel collecting device can test HEUI injector and actuating pump
22
Add the corresponding module to test the resistance and inductance of the injector
23
Can test the opening pressure of the injector and the solenoid valve
24
Add the corresponding module, it can test VP37, RED4, VP44, DENSO-VE electronically controlled pump
Company Introduction
Packing&Shipping
Our Advantages
FAQ
1.Are you a manufacturer or trade company?
We are direct manufacturer with more than 10 years experience

2.What certification do you have ?
We have CE, ISO SGS Certification etc

3.How about the delivery time?
10 days after getting deposit

4.Do you also sell related accessories and repair tools?
Yes, except test bench,we also produce spare parts and repair or measuring tools, also offer factory price for you

5.Do you have foreign agent ?
Sure, we have built some several agents in the world and you can also be our agent.
