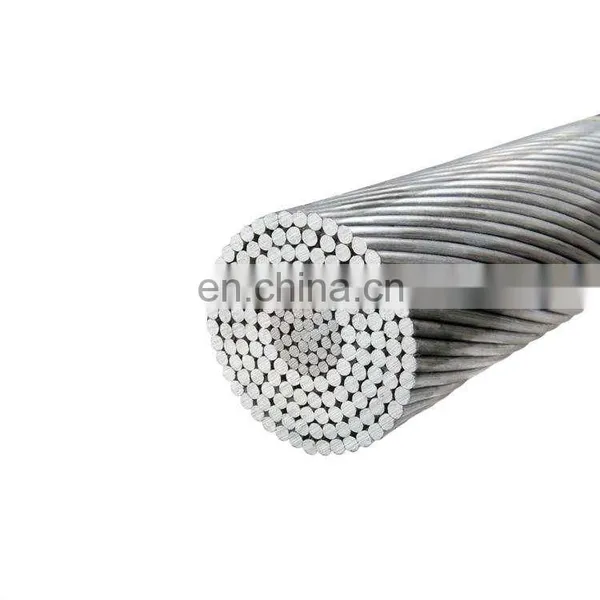

AAC Bare Conductor Merlin

AAC Bare Conductor Merlin thumbnail-1
AAC Bare Conductor Merlin thumbnail-2
AAC Bare Conductor Merlin thumbnail-3
AAC Bare Conductor Merlin thumbnail-4
AAC Bare Conductor Merlin thumbnail-5
AAC Bare Conductor Merlin photo-1
AAC Bare Conductor Merlin photo-2
AAC Bare Conductor Merlin photo-3
AAC Bare Conductor Merlin photo-4
AAC Bare Conductor Merlin photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2001
Annual Export Value:
US$1.5 Million - US$2.5 Million
Contact Supplier Request Quote Chat Now
Zhengzhou Aobest Electronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

 All Aluminum Conductorswidely used in power transmission lines with various voltage levels. since they have such good characteristics as simple structure, convenient installation and maintenance, low cost.

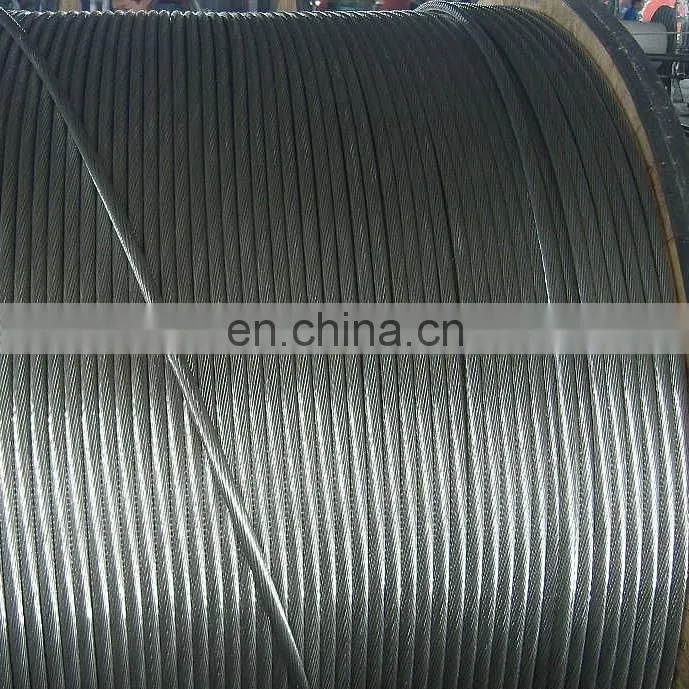

AAC bare conductor MerlinAAC bare conductor Merlin

AAC
All Aluminium Stranded Conductors (Class A & Class AA)          ASTM B-231

Code name Area Stranding and wire diameter Approox. Overall diameter Weight Nominal breaking load Nom. DC resistance at 20 deg.
Nominal Actual
AWG or MCM mm2 mm mm kg/km kN ohm/km
PEACHBELL 6 13.29 7/1.554 4.67 37 2.49 2.1692
ROSE 4 21.16 7/1.961 5.89 58 3.96 1.3624
IRIS 2 33.61 7/2.474 7.42 93 5.97 0.8577
PANSY 1 42.39 7/2.776 8.33 117 7.32 0.6801
POPPY 1/0 53.48 7/3.119 9.36 147 8.73 0.539
ASTER 2/0 67.42 7/3.503 10.51 186 11.00 0.4276
PHLOX 3/0 85.03 7/3.932 11.80 234 13.47 0.339
OXLIP 4/0 107.23 7/4.417 13.26 296 16.98 0.2688
VALERIAN 250 126.71 19/2.913 14.57 349 20.62 0.2275
SNEEZEWORT 250 126.71 7/4.80 14.40 349 20.07 0.2275
LAUREL 266.8 135.16 19/3.01 15.05 373 22.00 0.2133
DAISY 266.8 135.16 7/4.96 14.90 373 21.41 0.2133
PEONY 300 152.0 19/3.193 15.97 419 24.03 0.1896
TULIP 336.4 170.45 19/3.381 16.91 470 26.95 0.1691
DAFFODIL 350 177.35 19/3.447 17.24 489 28.04 0.1625
CANNA 397.5 201.42 19/3.673 18.36 555 31.84 0.1431
GOLDENTUFT 450 228.0 19/3.909 19.55 629 34.99 0.1264
SYRINGA 477 241.68 37/2.882 20.19 666 38.49 0.1193
COSMOS 477 241.68 19/4.023 20.12 666 37.08 0.1193
HYACINTH 500 253.35 37/2.951 20.65 698 40.35 0.1138
ZINNIA 500 253.35 19/4.12 20.60 698 38.88 0.1138
DAHLIA 556.5 282 19/4.346 21.73 777 43.27 0.1022
MISTLETOE 556.5 282 37/3.114 21.79 777 43.62 0.1022
MEADOWSWEET 600 304 37/3.233 22.63 838 47.03 0.0948
ORCHID 636 322.25 37/3.33 23.31 888 49.85 0.0894
HEUCHERA 650 329.35 37/3.366 23.56 908 50.95 0.0875
FLAG 700 354.71 61/2.72 24.48 978 51.46 0.0813
VERBENA 700 354.71 37/3.493 24.45 978 54.87 0.0813
NASTURTIUM 715.5 362.58 61/2.75 24.76 1000 58.74 0.0795
VIOLET 715.5 362.58 37/3.533 24.74 1000 56.09 0.0795
CATTAIL 750 380 61/2.817 25.35 1048 59.85 0.0759
PETUNIA 750 380 37/3.617 25.32 1048 58.75 0.0759
LILAC 795 402.84 61/2.90 26.11 1111 63.45 0.0715
ARBUTUS 795 402.84 37/3.724 26.06 1111 62.32 0.0715
SNAPDRAGON 900 456.06 61/3.086 27.78 1257 69.78 0.0632
COCKSCOMB 900 456.06 37/3.962 27.73 1257 68.48 0.0632
GOLDENROD 954 483.42 61/3.177 28.60 1333 78.96 0.0596
MAGNOLIA 954 483.42 37/4.079 28.55 1333 72.58 0.0596
CAMELLIA 1000 506.71 61/3.251 29.36 1397 77.53 0.0569
HAWKWEED 1000 506.71 37/4.176 29.23 1397 76.08 0.0569
LARKSPUR 1033.5 523.68 61/3.307 29.76 1444 80.12 0.055
BLUEBELL 1033.5 523.68 37/4.244 29.72 1444 78.63 0.055
MARIGOLD 1113 563.93 61/3.432 30.89 1555 86.28 0.0511
HAWTHORN 1192.5 604.26 61/3.551 31.05 1666 92.45 0.0477
NARCISSUS 1272 644.51 61/3.668 33.02 1777 98.61 0.0447
COLUMBINE 1351.5 684.84 61/3.78 34.01 1888 104.78 0.0421
CARNATION 1431 725.1 61/3.89 35.03 1999 107.68 0.0398
GLADIOLUS 1510.5 765.35 61/4.00 35.09 2110 113.65 0.0376
COREOPSIS 1590 805.68 61/4.099 36.51 2221 119.64 0.0358
JESSAMINE 1750 886.71 61/4.302 38.73 2445 131.68 0.0325
