Help CenterHot Sale Factory Direct Acsr Bare Conductor AAC AAAC ACSR AACSR ACAR ACS AL BARE CONDUCTOR
Related Products
-
ALMELEC CABLE NFC 34-125NegotiableMOQ: 1 -
Leading Supplier AAAC B-398,B-399,Ardival, Aldrey or Almelec All Aluminium Alloy ConductorNegotiableMOQ: 1
-
ALMELEC CABLE NFC 34-125NegotiableMOQ: 1
-
For Oman AAC BARE CONDUCTOR CABLES FOR IRANNegotiableMOQ: 1
-
Most Competitive Price Bare AAC Cable All Aluminum ConductorsNegotiableMOQ: 1

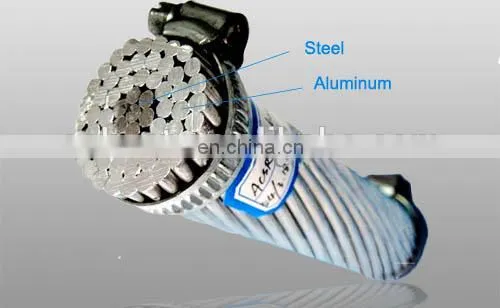

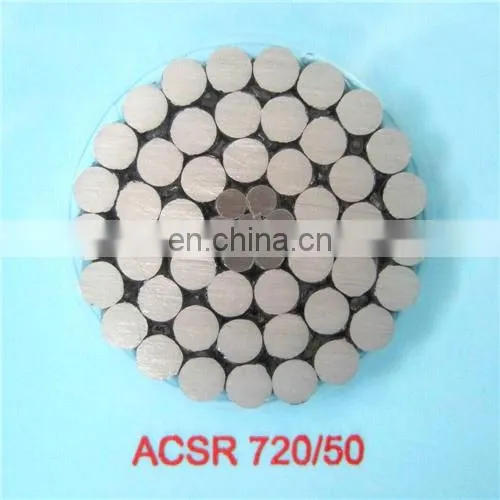

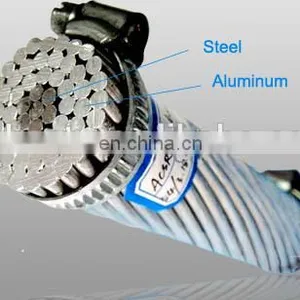

ACSR Conductor, Aluminum Conductor Steel Reinforced Cable( ACSR Cable)
AAAC (All Aluminum Alloy Conductor) referred to have higher strength but lower conductivity than pure aluminum. Being lighter, alloy conductors can sometimes be used to advantage in place of the more conventional ACSR; Having lower breaking loads than the latter, their use becomes particularly favourable when ice and win loadings are low.
2.We can supply this conductor according to different recognized standards, such as BS EN50182, IEC61089, ASTM B399DIN 48, customer special specification also can be satisfied.
3.The data sheets below show the most common standards, British standard and IEC standard.
Part of is IEC 61089
Code Number |
Stranding&wire diameter |
Approx Overall diameter |
Nominal |
Approx. |
Breaking Load |
DC Resistance at 20 |
area |
Weight |
|||||
mm |
mm |
mm 2 |
Kg/km |
KN |
Ohm/km |
|
16 |
7/1.83 |
5.49 |
18.4 |
50.4 |
5.43 |
1.7896 |
25 |
7/2.29 |
6.86 |
28.8 |
78.7 |
8.49 |
1.1453 |
40 |
7/2.89 |
8.68 |
46 |
125.9 |
13.58 |
0.7158 |
63 |
7/3.63 |
10.9 |
72.5 |
198.3 |
21.39 |
0.4545 |
100 |
19/2.78 |
13.9 |
115 |
316.3 |
33.95 |
0.2877 |
Code Name |
Stranding&wire diameter |
Approx Overall diameter |
Total area |
Weight |
Breaking Load |
DC Resistance at 20 |
Current Rating |
mm |
mm |
mm 2 |
Kg/km |
KN |
Ohm/km |
A |
|
Box |
7/1.85 |
5.55 |
18.8 |
51.4 |
5.55 |
1.748 |
93 |
Acacia |
7/2.08 |
6.24 |
23.9 |
64.9 |
7.02 |
1.3828 |
110 |
Almond |
7/2.34 |
7.02 |
30.1 |
82.2 |
8.88 |
1.0926 |
128 |
Cedar |
7/2.54 |
7.62 |
35.5 |
96.8 |
10.46 |
0.9273 |
132 |
Deodar |
7/2.77 |
8.31 |
42.2 |
115.2 |
12.44 |
0.7797 |
148 |
Fir |
7/2.95 |
8.85 |
47.8 |
130.6 |
14.11 |
0.6875 |
161 |
Hazel |
7/3.30 |
9.9 |
59.9 |
163.4 |
17.66 |
0.5494 |
184 |
Pine |
7/3.61 |
10.8 |
71.6 |
195.6 |
21.14 |
0.4591 |
204 |
Please contact me freely; maybe I’ll give you a big surprise. ^.^
