Help Center100% Copper Earthing Copper Wire Conductor
Related Products
-
ASTM BS IEC DIN GOST Standard AAC ACSR Bare Conductor CableNegotiableMOQ: 1 -
AAC Bare Conductor MerlinNegotiableMOQ: 1
-
2019 Year Aobest Bare AAAC Cable Aluminium Alloy Bare ConductorNegotiableMOQ: 1
-
HOT SALE GUY WIRE Galvanized Steel WireNegotiableMOQ: 1
-
Hot Sale Factory Direct Acsr Bare Conductor AAC AAAC ACSR AACSR ACAR ACS AL BARE CONDUCTORNegotiableMOQ: 1
Detailed Product Description for earthing copper cable
application:
innner conductor of coaxial cable, speaker cable, network cable, auto cable, ect.

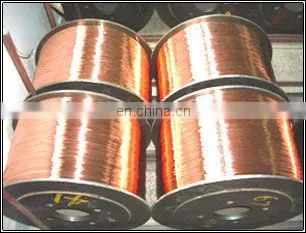

Copper Clad Aluminum Wire

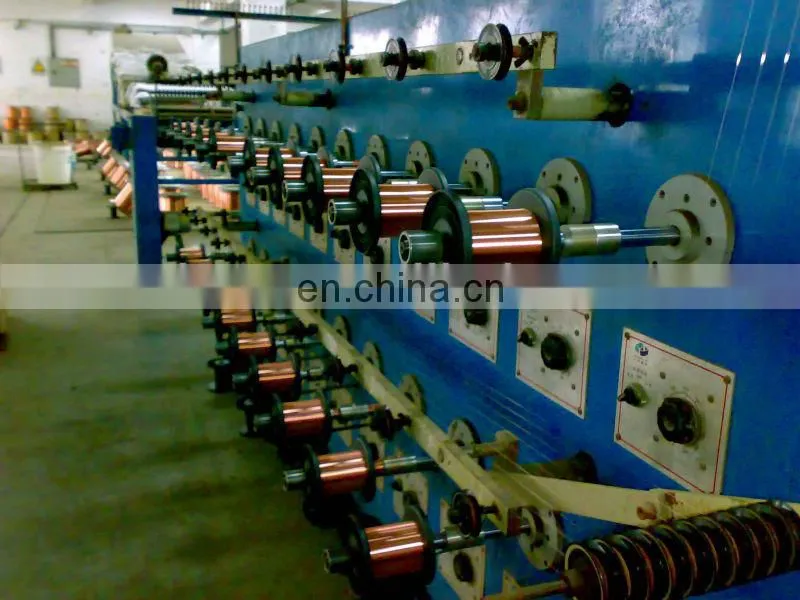

Copper clad aluminum wire (CCA) is produced with the production process of cladding welding drawing method, by cladding copper strip concentrically on the outer surface of the aluminum core. To meet customer’s requirement wire is treated and drawn several times. CCA wire has the characteristics of both copper wire & aluminum wire low density from aluminum wire & good conductor from copper wire. This kind of bimetallic wire is suitable for most electrical applications.
Advantages
• The bimetallic wire integrates the beneficial properties of good conductivity of copper & light weight of aluminum in a single wire called CCA wire
• The density of CCA is about 37-40 % of that of copper. Its length is 2.45 – 2.65 times of copper in the same weight & diameter. These factors reduce the raw material cost for cable manufacturers.
• Environment friendly, CCA saves the copper resources & its production is a nonpolluting process.
• CCA is easy to transport & install as its light weight.
PHYSICAL PROPERTIES | ||||||
Specification |
Copper in volume |
Copper in mass % |
length comparison |
Density % (g/cm3) |
Max. DC resistivity Ω.mm2/ |
Min. conductivity (% IACS) |
CCA-10% |
8~12 |
27 |
2.65:1 |
3.32 |
0.02743 |
63 |
CCA-15% |
13-17 |
37 |
2.45:1 |
3.63 |
0.02676 |
65 |
Copper Wire |
100 |
100 |
1:1 |
8.89 |
017241 |
100 |
