Detailed Product Description
1. Standard
The control cable can be produced according to the standard GB9330-1988,IEC,DIN,BS,and the factory can also manufacture the cables in accordance with other standards.
2.Scope of Application
The control cable are suitable for the wiring of electrical controlling equipments and instrument,monitoring and controlling return circuit,electrical protection and measurement in power distribution unit under the circumstance that the rated voltage is up to 450/750V AC.
3.Type& Specification
|
Type |
Name |
Section Area(mm2) |
No. of Core |
Application Site |
|
KVV |

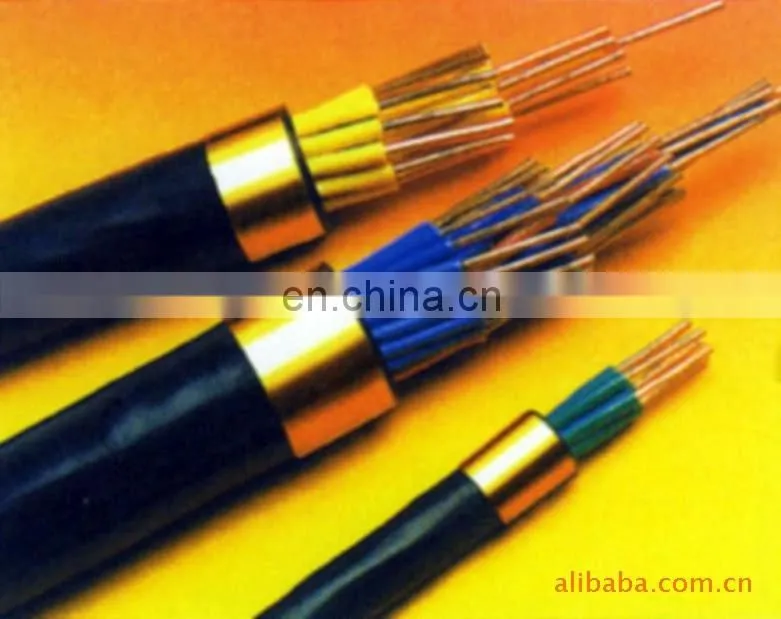

Copper Conductor,PVC Insulated and Sheathed Control Cable |
0.75 1.0 1.5 2.5 |
2-16 |
Permanent installation indoors,in cable ditches or pipes |
|
4 6 |
2-14 |
|||
|
10 |
2-10 |
|||
|
KVVP |

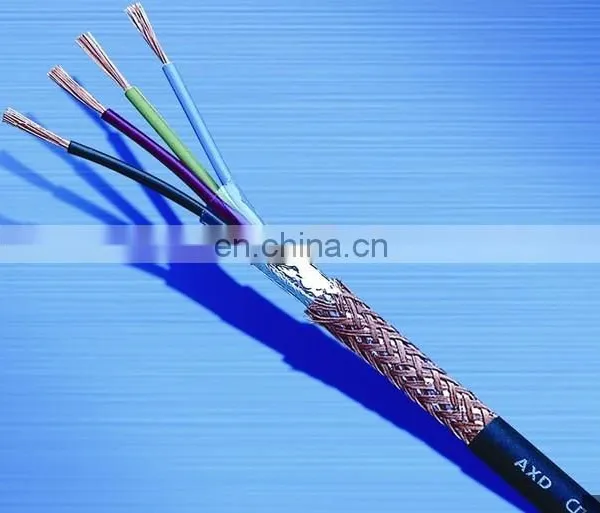

Copper Conductor,PVC Insulated and Sheathed,Braiding Shielded Control Cable |
0.75 1.0 1.5 2.5 |
2-61 |
Permanent installation indoors,in cable ditches or pipes where shielding is required |
|
4 6 |
2-14 |
|||
|
10 |
2-10 |
|||
|
KVVP2 |
Copper Conductor,PVC Insulated and Sheathed,Copper-tape Screened Control Cable |
0.75 1.0 1.5 2.5 |
4-10 |
Permanent installation indoors,in cable ditches or pipes where shielding is required |
|
4 6 |
7-61 |
|||
|
10 |
4-10 |
|||
|
KVV22 |
Copper Conductor,PVC Insulated and Sheathed,Steel tape Armored Control Cable |
0.75 1.0 1.5 2.5 |
7-61 |
Permanent installation indoors,in cable ditches,Be able to withstand stronger external mechanical force |
|
4 6 |
4-14 |
|||
|
10 |
4-14 |
|||
|
KVVR |
Copper Conductor,PVC Insulated and Sheathed,Flexible Control Cable |
0.5-2.5 |
4-61 |
Installation indoors where flexibility and movability are required |
|
KVVRP |
Copper Conductor,PVC Insulated and Sheathed,Braiding shielded Flexible Control Cable |
0.5 0.75 1.0 |
4-61 |
Installation indoors where flexibility shielding and movability are required |
|
1.5 2.5 |
4-48 |
|||
|
KYJV |
Copper Conductor,XLPE Insulated and PVC Sheathed Control Cable |
0.75 1.0 1.5 2.5 |
2-16 |
Permanent installation indoors,in cable ditches or pipes |
|
4 6 |
2-14 |
|||
|
10 |
2-10 |
|||
|
KYJVP |
Copper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Control Cable |
0.75 1.0 1.5 2.5 |
2-61 |
Permanent installation indoors,in cable ditches or pipes where shielding is required |
|
4 6 |
2-14 |
|||
|
10 |
2-10 |
|||
|
KYJV22 |
Copper Conductor,XLPE Insulated,Steel-tape Armoured,PVC Sheathed Control Cable |
0.75 1.0 1.5 2.5 |
7-61 |
Permanent installation indoors,in cable ditches,pipes or underground Be cable to with stand stronger external mechanical force |
|
4 6 |
4-14 |
|||
|
10 |
4-10 |
|||
|
KYJVP2 |
Copper Conductor,XLPE Insulated,Copper tape Screened,PVC Sheathed Control Cable |
0.75 1.0 1.5 2.5 |
7-61 |
Permanent installation indoors,in cable ditches or pipes where shielding is required |
|
4 6 |
4-14 |
|||
|
10 |
4-10 |
|||
|
KYJVR |
Copper Conductor,XLPE Insulated,PVC Sheathed Flexible Control Cable |
0.5-2.5 |
4-61 |
Installation indoors where flexibility and movability are required |
|
KYJVRP |
Copper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Flexible Control Cable |
0.5 0.75 1.0 |
4-61 |
|
|
|
|
1.5 2.5 |
4-48 |
Installation indoors where flexibility shielding and movability are required |
4.Service Conditions
(1)The long-time working temperature of conductor of PVC insulated cable is 70oC
The long-time working temperature of conductor of XLPE insulated cable is 90oC
(1) The temperature for laying the cables can not be lower than 0oC.Permissible bending radius(r):unarmoured cable:r≥6D;(D: outer diameter of the cable);armoured or copper-tape screened cable:r≥12D;shielded flexible cable:r≥6D
1:standard export wooden drum/steel wooden drum
2: upon your request
- Any inquiries will be replied within 24 hours.
- OEM/ODM available.
1) Printing your logo on the cable.
2) Printing your logo on the pull box, wooden drum according to your design
3) Any your idea on cable, packing box are available.
- High quality, reasonable and competitive price, fast lead time.
- Good after-Sale Service.
1) All products will have been strictly Quality Checked in house before packing.
2) All products will be well packed before shipping.
- Faster delivery.:Sample order in stock, and 3-7 days for bulk production.
- Strong technical support (technical data, drawing, etc.)
- Free sample is available with economic express fee.
- Payment:We can accept payment methods: L/C, T/T, Western Union,other payment can negotiation.
- Could you offer the Type Test Report?
- A -Yes, we could offer the Type Test Report issued by Chinese laboratories.
- Q:Have you ever supplied the cables to our country?
- A: -Our cables have been supplied to many countries and regions, such as, Singapore, Taiwan, Hong Kong, Kenya, Congo, France, Cyprus, Honduras, etc.
- Q: According to which standards can you produce cables?
- A: -GB/T, IEC, EN.
- Q: What is your MOQ?
- A: -The MOQ is different, as the different cable type.
- Q: Do you have ready cables?
- A: -Some normal cables have the inventory, most cables are produced according to your requirements.
- Q: What's the tolerance of delivery length for each coil?
- A: -±0.005m.
- Q: What are your main products?
- A: -Our main products are the PVC insulated cable, power cable, and electric wire.
