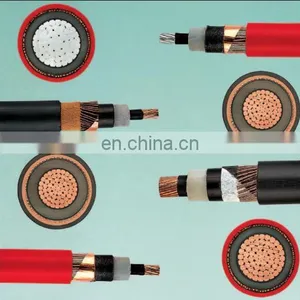

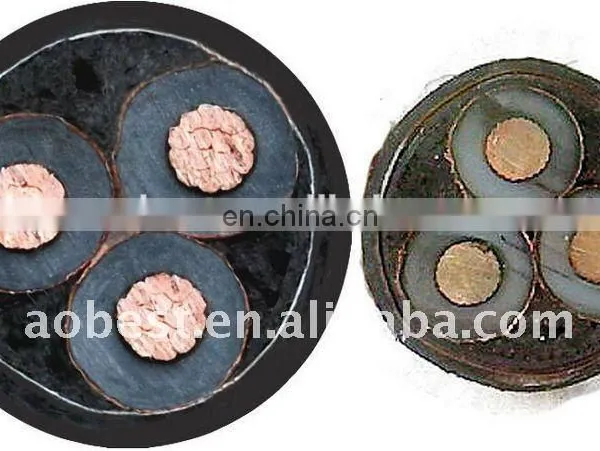

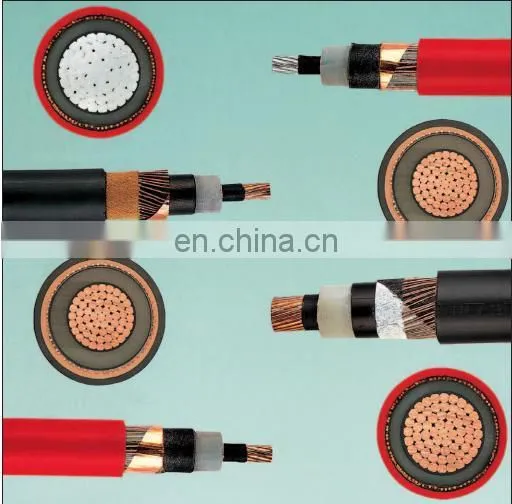

High Voltage 20KV Grounding Electric Power Cable for Africa
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2001
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Lamp Ac220v Power Cord PVC Insulation Low Voltage Resistance Bands for Building Use Power CablesNegotiableMOQ: 1 -
Golden Supplier al Ground Power Wire Install for ConstructionNegotiableMOQ: 1
-
2021 KEMA Certificate IEC Standard CU/XLPE/SWA/PVC MV Underground Power CableNegotiableMOQ: 1
-
Hot Sale!! Multi Core 15kv HV Xlpe Coated Armoured Power CableNegotiableMOQ: 1
-
CU XLPE PVC Cable Steel Wire Amoured 3C Cable 0.6/1KV Top-rated Power CableNegotiableMOQ: 1
Company Information
About Us:
Zhengzhou Aobest Electronic Technology Co., Ltd. is a professional company, located in Zhengzhou, China. We provide power cables and wires.
Our main products: High and low voltage XLPE insulated Cables, PVC insulated cables, steel wire armored cables, steel tape armored cables, ABC cables, Overhead insulated cables, AAC, AAAC & ACSR cables, Copper wires, Galvanized steel wire strands, PVC insulated wires and flexible wires, Rubber insulated cables, underground cables, control cables, aluminum sheets, etc.
Product Description
China 20kv HIGH VOLTAGE cable
Application:
Power cables for power networks, underground, outdoors and in cable ducting.
Standards:
- BS6622
- Conductor:
- Class 2 stranded plain copper conductor to BS EN 60228:2005 (previously BS6360)
- Conductor screen:
- Semi-conducting material
- Insulation:
- XLPE (Cross-Linked Polyethylene) Type GP8 to BS7655
- Insulation Screen:
- Semi-conducting material
- Metallic Screen:
- Individual and overall copper tape screen to BS6622
- Filler:
- PETP (Polyethylene Terephthalate) fibres
- Separator:
- Binding tape
- Bedding:
- PVC (Polyvinyl Chloride) Type TM1 to BS7655
- Armouring:
-
Single Core: Aluminium Wire Armoured (AWA)
Multi-core: Steel Wire Armoured (SWA) - Sheath:
- PVC (Polyvinyl Chloride) Type TM1 to BS7655
- Colour:
- Red or Black
- Voltage Rating:
- 19000/33000V
- Temperature Rating:
- 0°C to +90°C
- Minimum Bending Radius:
-
Single Core: 15 x overall diameter
Three Core: 12 x overall diameter
(Single Core 12 x overall diameter and 3 core 10 x overall diameter where bands are positioned adjacent to joint or terminations provided that the bending is carefully controlled by the use of a former)33kV XLPE Cable
Nominal Cross Sectional Areamm² Nominal Overall Diametermm 1 x 70 41.0 1 x 95 42.9 1 x 120 44.5 1 x 150 47.3 1 x 185 49.3 1 x 240 51.7 1 x 300 54.4 1 x 400 57.7 1 x 500 61.1 1 x 630 65.0 1 x 800 71.6 1 x 1000 76.5 3 x 50 78.2 3 x 70 82.1 3 x 95 86.1 3 x 120 90.0 3 x 150 93.2 3 x 185 97.5 3 x 240 103.3 3 x 300 108.8 3 x 400 116.1 -
We will provide you with High quality and reasonable price wire. welcome your trial order.
Packaging & Shipping
1:standard export wooden drum/steel wooden drum
2: upon your request
Our Services
- Any inquiries will be replied within 24 hours.
- OEM/ODM available.
1) Printing your logo on the cable.
2) Printing your logo on the pull box, wooden drum according to your design
3) Any your idea on cable, packing box are available.
- High quality, reasonable and competitive price, fast lead time.
- Good after-Sale Service.
1) All products will have been strictly Quality Checked in house before packing.
2) All products will be well packed before shipping.
- Faster delivery.:Sample order in stock, and 3-7 days for bulk production.
- Strong technical support (technical data, drawing, etc.)
- Free sample is available with economic express fee.
- Payment:We can accept payment methods: L/C, T/T, Western Union,other payment can negotiation.
Certifications
FAQ
- Q: Could you offer the Type Test Report?
- A -Yes, we could offer the Type Test Report issued by Chinese laboratories.
- Q:Have you ever supplied the cables to our country?
- A: -Our cables have been supplied to many countries and regions, such as, Singapore, Taiwan, Hong Kong, Kenya, Congo, France, Cyprus, Honduras, etc.
- Q: According to which standards can you produce cables?
- A: -GB/T, IEC, EN.
- Q: What is your MOQ?
- A: -The MOQ is different, as the different cable type.
- Q: Do you have ready cables?
- A: -Some normal cables have the inventory, most cables are produced according to your requirements.
- Q: What's the tolerance of delivery length for each coil?
- A: -±0.005m.
- Q: What are your main products?
- A: -Our main products are the PVC insulated cable, power cable, and electric wire.
