PVC Insulated Cable
Specification:
-CU/PVC/PVC
-IEC/ BS/ ASTM/ DIN/ AS standard
-450/750V, 300/500V
-10ys experience

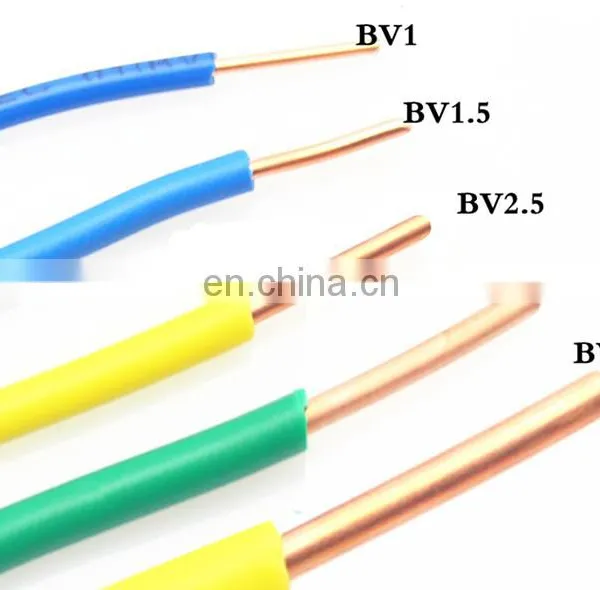

1.Electrical Wire include models cu/pvc, al/pvc, cu/pvc/pvc, cu/pvc/pvc flat wire cable etc.
2.Application: Household and building
3. Flexible or ordinary
Construction:
|
cu/pvc/pvc 450/750V |
|||
|
Nominal Section sqmm |
Structure of Cores core number/dia. mm |
Maximum Outer Diamater mm |
Reference Weight kg/km |
|
1*0.75 |
1*1/0.97 |
4.3 |
23 |
|
1*1.0 |
1*1/1.13 |
4.5 |
26.4 |
|
1*1.5(A) |
1*1/1.38 |
4.9 |
34.6 |
|
1*1.5(B) |
1*1/0.52 |
5.2 |
36.5 |
|
1*2.5(A) |
1*1/0.85 |
5.8 |
46.4 |
|
1*4(A) |
1*1/2.25 |
6.4 |
65.9 |
|
1*4(B) |
1*1/0.85 |
6.8 |
73.7 |
|
1*6(A) |
1*1/2.76 |
7.0 |
91.6 |
|
1*10 |
1*1/1.35 |
8.8 |
152 |
|
2*1.5(A) |
2*1/1.38 |
9.8 |
109 |
|
2*1.5(B) |
2*1/1.38 |
10.5 |
123 |
|
2*2.5(A) |
2*1/1.38 |
11.5 |
157 |
|
2*2.5(B) |
2*1/1.38 |
12.0 |
172 |
|
2*4(A) |
2*1/1.38 |
12.5 |
205 |
|
2*4(B) |
2*1/1.38 |
13.0 |
222 |
|
2*6(A) |
2*1/1.38 |
13.5 |
265 |
|
2*6(B) |
2*1/1.38 |
14.5 |
286 |
|
2*10 |
2*1/1.38 |
18.0 |
471 |
|
3*1.5(A) |
3*1/1.38 |
10.5 |
136 |
|
3*1.5(B) |
3*7/0.52 |
11.0 |
146 |
|
3*2.5(A) |
3*1/1.78 |
12.0 |
190 |
|
3*2.5(B) |
3*7/0.68 |
12.5 |
207 |
|
3*4(A) |
3*1/2.25 |
13.0 |
252 |
|
3*4(B) |
3*7/0.85 |
14.0 |
272 |
|
3*6(A) |
3*1/2.76 |
14.5 |
344 |
|
3*10 |
3*7/1.35 |
19.0 |
574 |
|
4*1.5(A) |
4*1/1.38 |
11.5 |
164 |
|
4*1.5(B) |
4*7/0.52 |
12.0 |
174 |
|
4*2.5(B) |
4*7/0.68 |
13.5 |
252 |
|
4*4(A) |
4*1/2.25 |
14.5 |
321 |
|
4*4(B) |
4*7/0.85 |
15.5 |
346 |
|
4*6(A) |
4*1/1.04 |
17.5 |
470 |
|
4*6(B) |
4*7/2.76 |
16.0 |
439 |
About Us:
Zhengzhou Aobest Electronic Technology Co., Ltd. is a professional company, located in Zhengzhou, China. We provide power cables and wires.
Our main products: High and low voltage XLPE insulated Cables, PVC insulated cables, steel wire armored cables, steel tape armored cables, ABC cables, Overhead insulated cables, AAC, AAAC & ACSR cables, Copper wires, Galvanized steel wire strands, PVC insulated wires and flexible wires, Rubber insulated cables, underground cables, control cables, aluminum sheets, etc.
