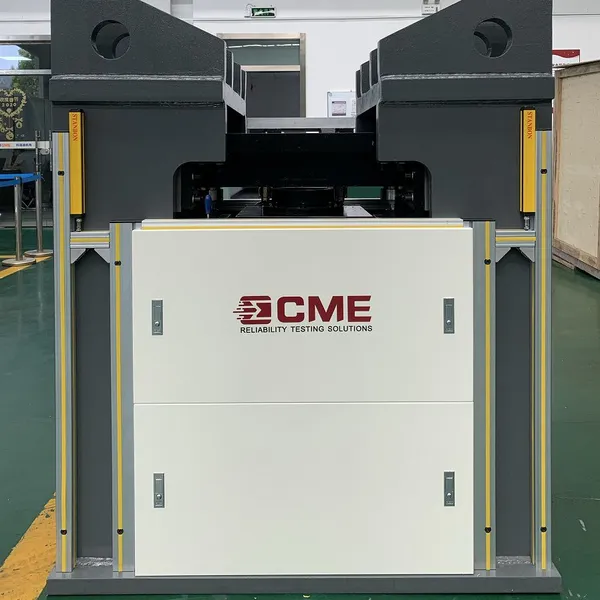

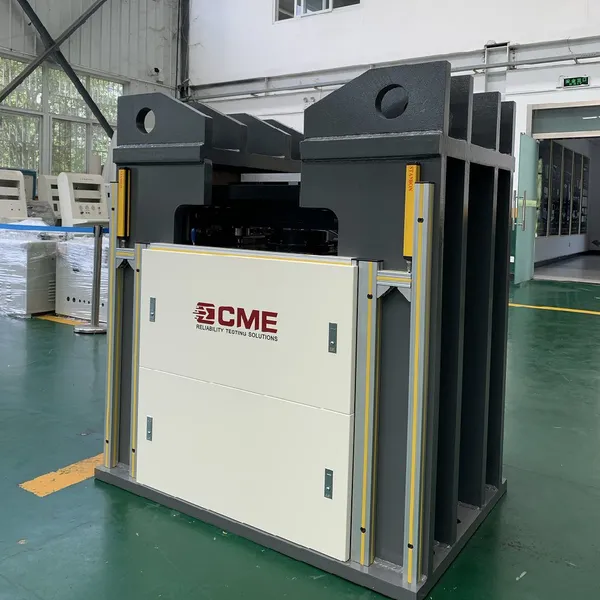

KRD14 series pendulum shock response spectrum tester is used to measure and determine the shock resistance of electrical and electronic products or packaging, and to evaluate the reliability and structural integrity of the test product in a shock environment. The shock response spectrum is the total result of a series of single-degree-of-freedom linear systems with different natural frequencies subjected to the same shock excitation response. When a product is subjected to an impact, the maximum value of its impact response means that the product has a maximum stress. Therefore, the shock response spectrum tester can better simulate the shock wave and shock energy suffered in the real environment.
KRD14 series Shock Response Spectrum Test System are core products of CME for aerospace shock testing, designed to simulate extreme shock environments encountered by aerospace components during launch, flight, and landing. These systems adopt advanced technical principles to ensure accurate and reliable test results, providing critical data support for evaluating the shock resistance and structural integrity of products. And is mainly used to measure and determine the shock resistance of electrical and electronic products or packaging, and to evaluate the reliability and structural integrity of test products in shock environments. It is fully compatible with the testing needs of aerospace electronic components, providing accurate and repeatable test data to ensure components can withstand the impacts of complex aerospace environments.
l 1200mm table size withstand 1000kg load.
l Windows-based stable control system, full-automatic remote-control interface.
l The control & measurement system has built-in SRS specifications and tolerances, which is convenient for users to adjust and apply. It automatically completes the test and generates reports.
l Adjust the driving shock energy by adjusting the air pressure, which is convenient to operate and high in efficiency.
l The equipment takes up a small area and is easy to install.
Technical Specifications
|
Model Parameters |
KRD14－20 |
KRD14－50 |
KRD14－100 |
KRD14－200 |
KRD14－500 |
KRD14－1000 |
Load (kg) |
20 |
50 |
100 |
200 |
500 |
1000 |
Table Size (mm) |
300×300 |
500×500 |
600×600 |
800×800 |
1000×1000 |
1200×1200 |
|
Response Frequency Range (Hz) |
10～10,000 |
|||||
|
Max. Response Acceleration (g) |
50,000 |
30,000 |
25,000 |
15,000 |
10,000 |
5,000 |
Gradient of Rising Stage (dB/Otc) |
6～9 |
|||||
|
Tolerance Range (dB) |
±6～9 |
|||||
|
Overall Dimension (mm) |
1300×850×1500 |
1420×865×1485 |
1200×1200×1650 |
1750×1100×1700 |
1900×1300×1800 |
2200×1500×2000 |
Power |
1-phase AC220V±10% 50Hz |
|||||
Weight (kg) |
2000 |
3240 |
3800 |
4800 |
4500 |
5000 |
Working Environment |
Temperature range 0~40℃, Humidity ≤ 80% (non-condensing) |
|||||
Air Source |
≤1MPa |
|||||
Installation Condition |
Foundation-free, the cement floor shall be leveled and the working distance of 800~1000mm shall be reserved around the equipment |
|||||
Standard |
MIL-STD-810 |
|||||
Note: The parameters in the table are for reference only, and the parameters agreed upon by the supplier and the buyer shall prevail.
Standards
MIL STD 810 Method 517.3 Shock Testing Standard
MIL STD 883 Method 1011.9 Shock Testing Standard
MIL STD 202 Test Method 213
MIL STD 750 Method 2016.2
Test Results

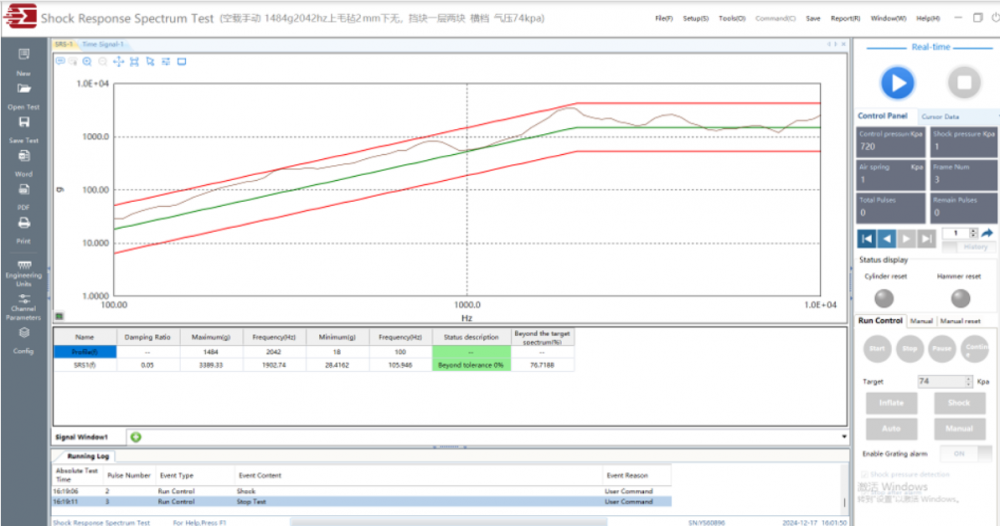

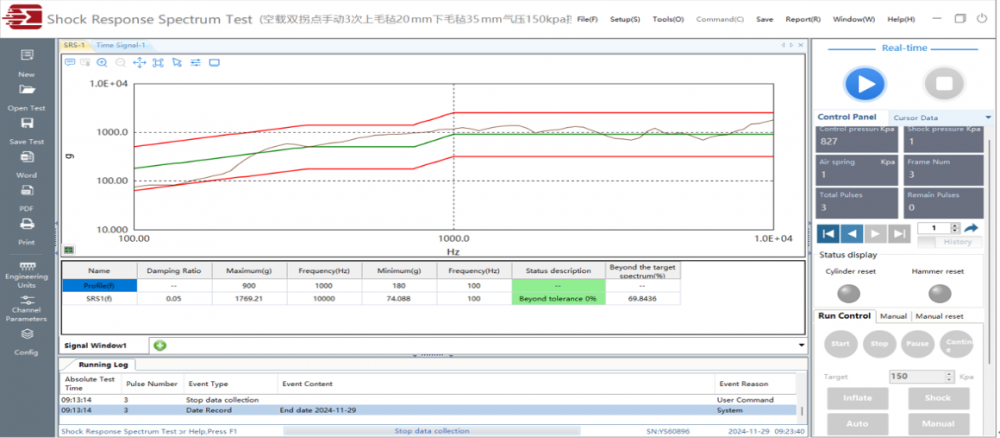

100Hz180G, 350Hz500G, 750Hz500G, 1000Hz900G, 10000Hz900G
100Hz18G, 2042Hz1484G, 10000Hz1484G
