Three Point Bending Flexural Strength Tester
Summary:

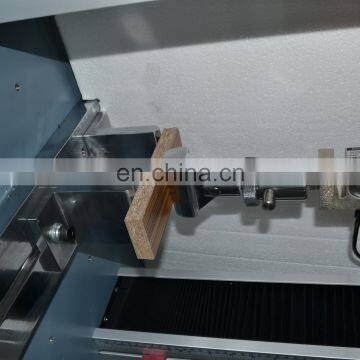

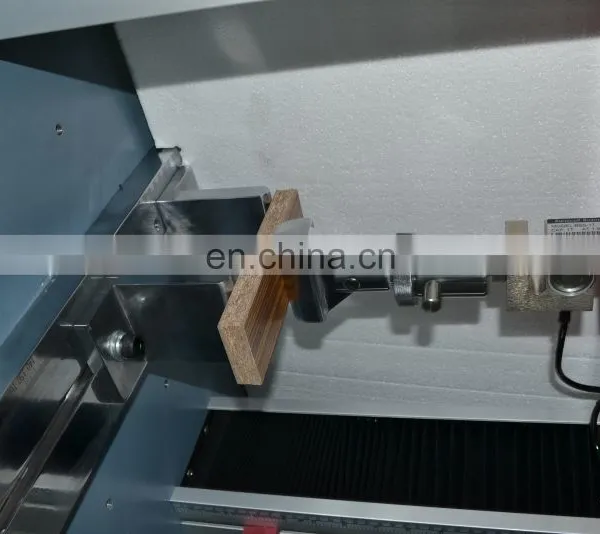

- The three point bending test machine is also called wd-t1 three point bending strength tester or three-point bending strength tester.Is the specimen on a certain distance of two points, the two specimens of strong point direction on midpoint exert downward load, specimens of two equal three contact points to form a moment when the three point bending, midpoint specimen will be break.Three - point bending test is often used to detect the bending strength of various materials.
Application:

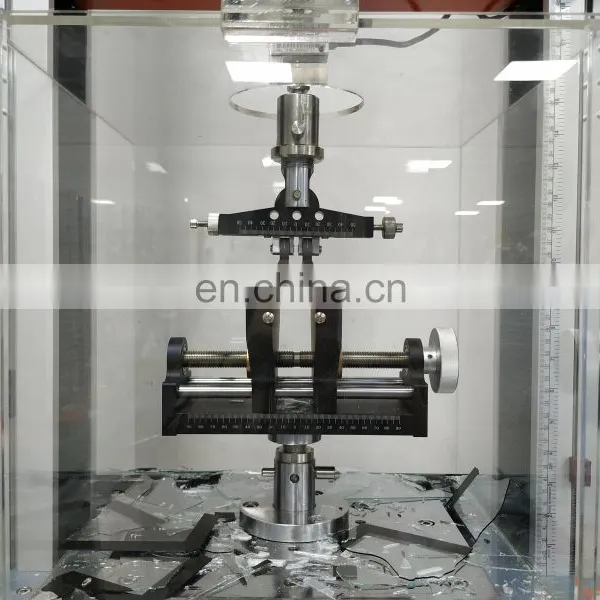

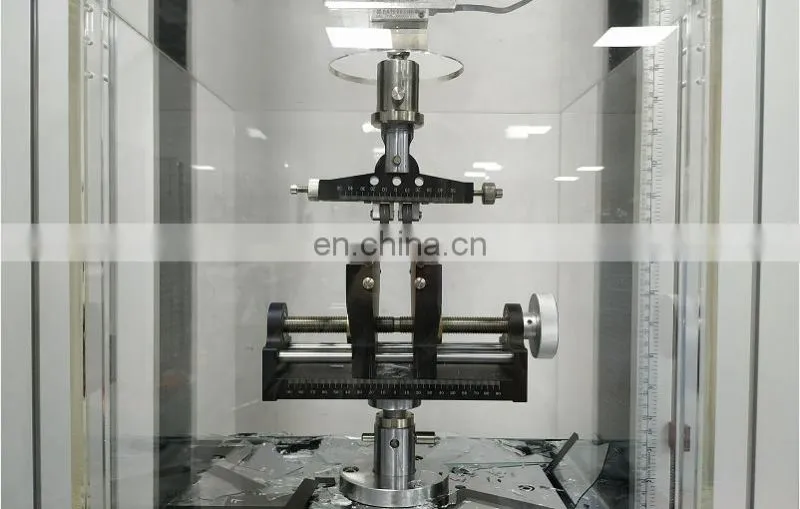

- Three point bending test machine is commonly used in mobile phone glass, toughened glass, glass touch screen, glasses, cardboard cartons and other metal and non-metallic materials;
- Four-point bending strength tester of using range van across laboratories, research institutes, with each material production factory inspection arbitration institution and teaching institutes and other industries, for material development, physical properties testing, teaching research, quality control, incoming inspection, random inspection of the production line.

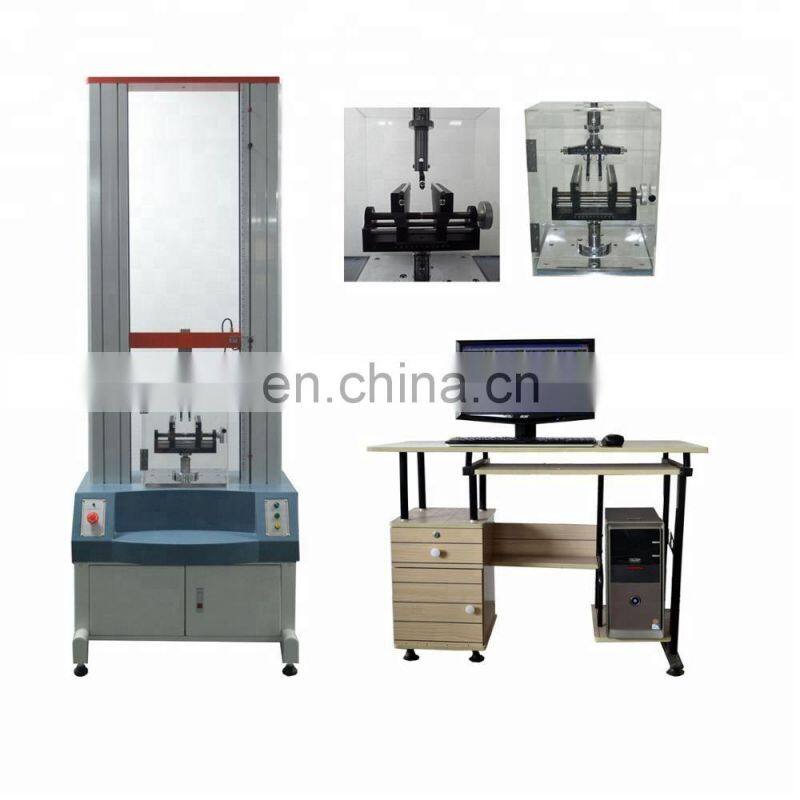

Main features of 3 Point 4 Point Bending Strength Testing Machine
1. Whole facility structure is made of baking varnish aluminum profile,and inner part is applied the high-accuracy,low-resistance and zero clearance of dual-ball screw and oriented pole, through which highlyimprove the loading efficience and structure rigidity.
2.Use famous brand Panasonic servo motor, which ensure high efficiency,steady transmission and low noise.
3. Apply brand computer as the main control system, computer control with TM2101 software, back to origin automatically after the test, and can store data automatically or by manual operation
4. Data transmission: RS232, and displacement resolution: 0.001mm
5. Graph scale automatic optimization allows best measurement and can implement graphics dynamic switching by the test.
Specifications of 3 Point 4 Point Bending Strength Testing Machine
Items | 3 Points 4 Point Bending Strength Testing Machine |
Capacity | 100. 200. 500. 1000, 2000, 3000, 5000, 10000kg |
Unit Switchover | G, KG, N, LB |
Display Device | LCD or PC / Tensile Testing Machine |
Resolution | 1/250,000 |
Accuracy | ±0.5% |
Max. Stroke | 1000mm (including fixture) |
Test Speed | 0.1-500mm/min (adjustable ) |
Motor | Panasonic Servo Motor |
Screw | High Precise Ball Screw |
Elongation Accuracy | 0.001mm |
Power | AC220V, 50HZ or customized |
Weight | Approx.500kg / Tensile Testing Machine |
Accessories parts | Bend clamp, computer system, English software CD, Operation user manual |

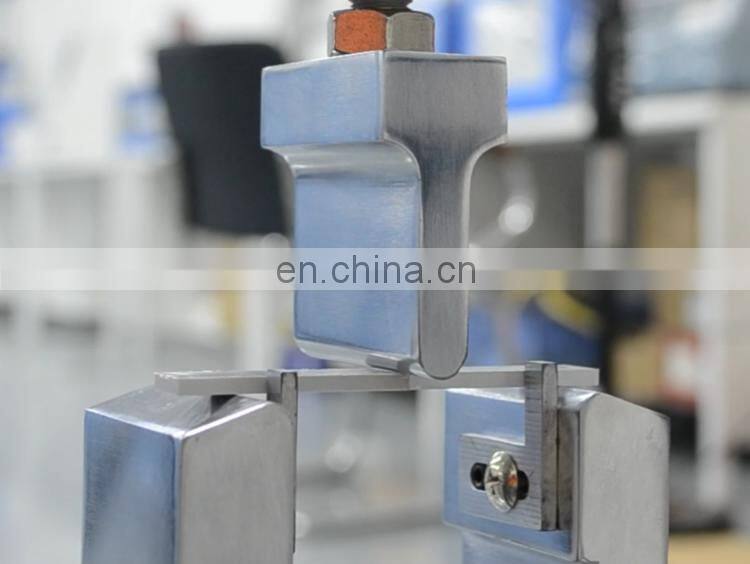

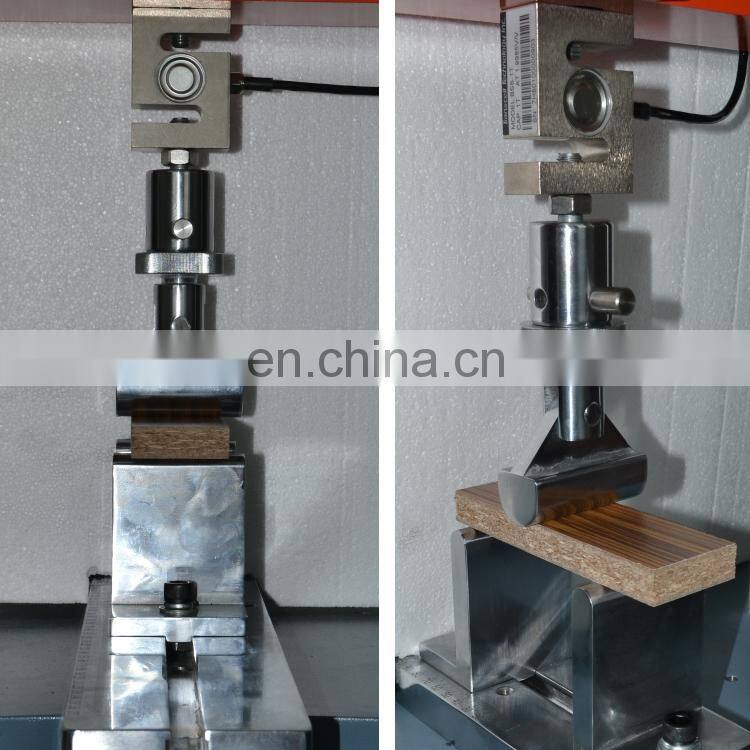

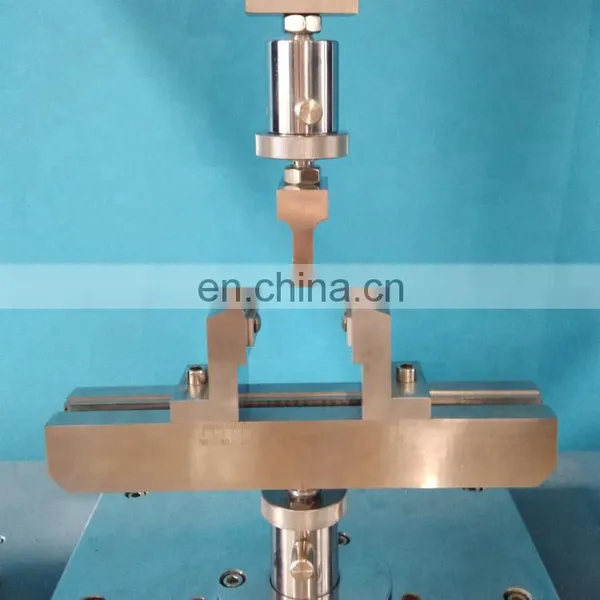

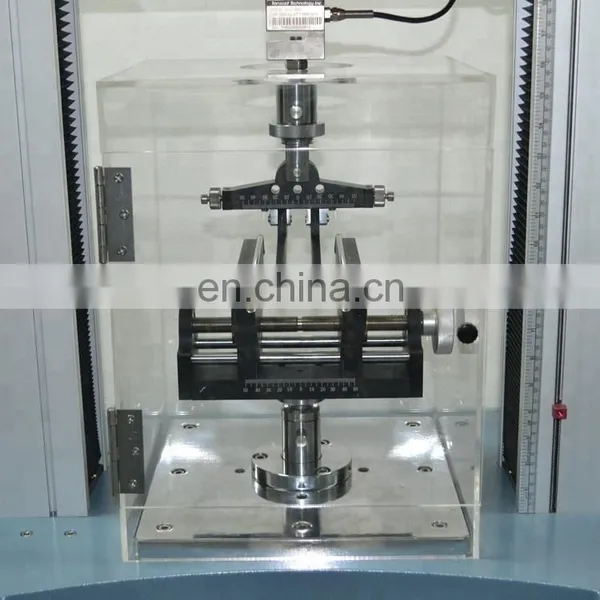

Regular Clamps of 3 point 4 point bending testing
We have professional packing workers to pack your products!
Packing:
1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.
Shipping:
You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt ofyour order. It's more preferable for you to provide us with your own FEDEX/DHL account number so that the delivery charge can be charged directly from your account.
Universal tensiel tester(5T) Universal tensile tester(200kg) Mobile drop tester(1.5/2m) Wire elongation tester
Humidity climatic chamber Dust test chamber 339 Abarasion tester Moving die Rheometer
ZONHOW Though 10 years of continuous development, our company has established the main products line of Universal strength testing machines. Environmental testing chambers and Cell phone, computer testing machines. Package and paper print test equipment and so on! Our equipment is used in over 80 countries worldwide and supported by a network of offices and approved agencies. Our products are used in all industries and educational sectors and we have an enviable reputation for innovation, quality product and excellent customer support.
- 1.Are your company a trading one or a factory ?Factory + trade (integration),10 years focusing on test instruments field,3 years exporting experience.
OEM is also acceptable for us.
- 2.What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20
working days after deposit receipt. If you are in urgent need, we can consider making special
arrangement for you.
- 3.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to
your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
- 4.What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and
debugging - balance payment - packing - delivery - customer receiving - after service.
- 5.What is your warranty ?
- 12 months product warranty.Free components will be provided if any performance failure occurs within 12 months caused by non-human damage.
