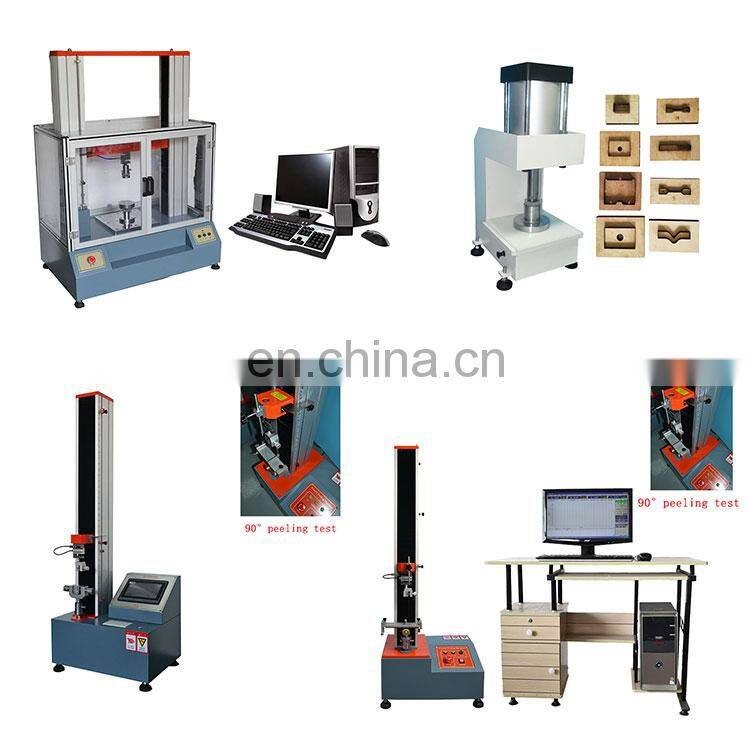

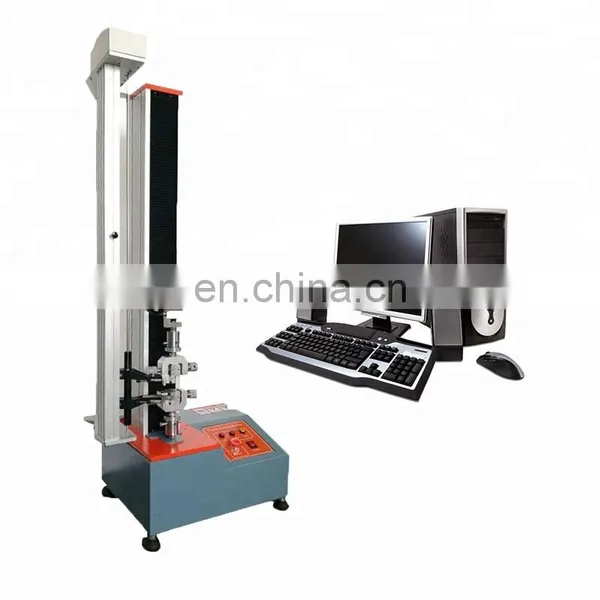

Peel adhesion tensile strength test machine
Introduction——Peel adhesion tensile strength test machine
180 degree peeling testing machine can do all kinds of paper, film, rubber, plastic, fabric, waterproof material, non-woven fabrics, metal wire, metal foil,. Metal mechanics, and the longitudinal and transverse tensile, tensile and tear properties and mechanical properties test, composite film, pressure sensitive adhesive materials such as stripping, splitting, shear strength test, elongation at break test, heat sealing tensile, tear, strength test, etc.
Features——Peel adhesion tensile strength test machine
1.Provide the capacity of two groups of test space, let the operator has a bigger scope, especially the raw material and finished product testing strength gap is bigger, the most suitable. On the type of be born type, mainly in the steel wire, small screw type of fabric and other industries the most commonly used. The biggest test of 50 kn force, long stroke and has two test space, can be installed capacity of two different sensors, used in testing strength difference is very big occasions, such as in the spring industry, steel wire, rubber and plastic materials such as the analysis of the test.
2.It can be pulled off automatically and the peak is maintained;Measuring strength of tension, pressure and input parameters;The tensile force value is determined, and the force value is elongated.Display curve (force value, displacement);Single point speed regulation (1 -- 500mm/min), single point speed regulation (1, 2, 5, 10, 20, 50, 100, 200, 500), stepless speed regulation can be set to any accuracy within 1 -- 500 range.The accuracy of each measurement is plus or minus 1%.The machine adopts closed-loop control method with high control precision.
Technical parameters——Peel adhesion tensile strength test machine
| Range of speed | 50~500mm/min |
| Effective force ranage | 0.4%~100% |
| Motor | Panasonic sevor motor |
| Resolution | 1/250,000 |
| Capacity choice | 2,5,10,20,50,100,200Kg |
| Effective tensile space | 650mm/800mm/1000mm(your choice) |
| Accuracy | ±0.5% |
| Force relative error | ±0.5% |
| Displacement relative error | ±0.5% |
| Test speed relative error | ±0.5% |
| Accessories | computer, printer, system operation manual |
| Operation method | windows operation |
| Power | 220V ±10% 0.2KW/0.4KW |
| Stroke protection | Upper and lower protection, prevent over preset |
| Force protection | system setting |
| Emergency stop device | Handling emergencies |
Conform to the standards——Peel adhesion tensile strength test machine
The testing machine of tape stripping force is designed and manufactured in accordance with GB17200 specifications. The performance indexes meet the following test standards:
- GB/T2790 (adhesive 180 ° peel strength test),
- GB/T2791 (adhesive T peel strength test),
- GB2792 (pressure sensitive adhesive tapes 180 ° peel strength measurement),
- GB4850 (low-speed uncoil strength test),
- GB7754 (shear strength test),
- GB8808 (composite film peel strength test),
- ZBY28004 (determination of heat sealing strength),
- GB13022 (film tensile test),
- GB7753 (pressure sensitive adhesive tape tensile test)
Additional application——Peel adhesion tensile strength test machine
1.Tested sample: plastic films, laminated materials, adhesive tapes, adhesive bandage (plaster), release paper, plastic films, leather, rubber & plastic, paper, fiber, etc.
2.Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
3.Deformation under defined load: Test deformation under defined load of tested sample
4.Load under defined deformation: Test load under defined deformation of tested sample
5.Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.

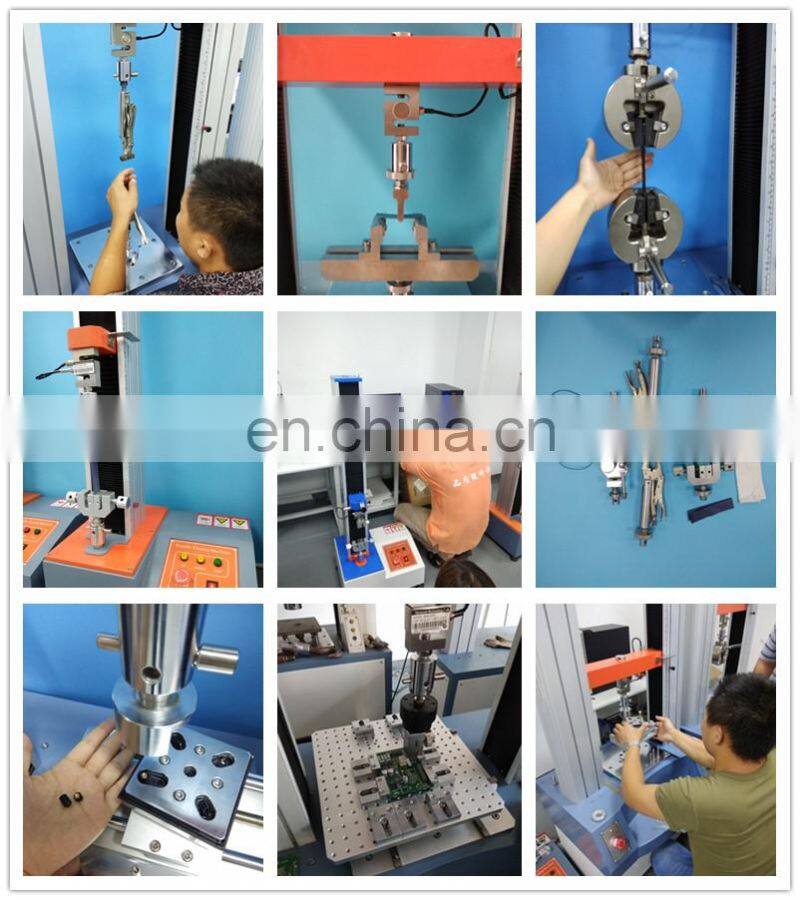

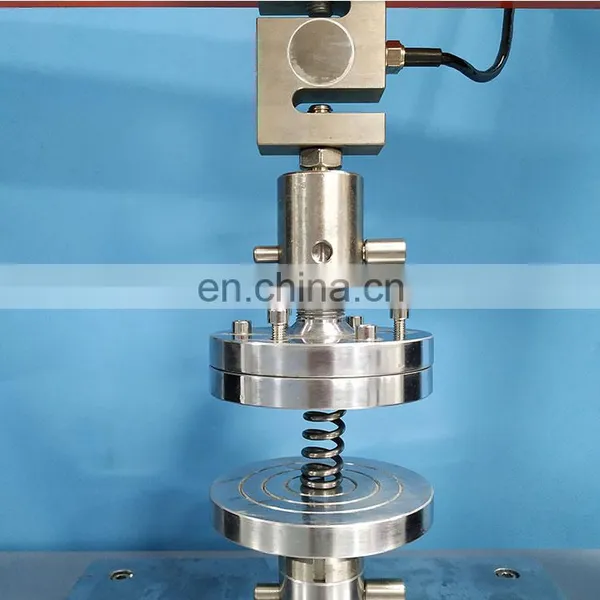

Relative clamps——Peel adhesion tensile strength test machine

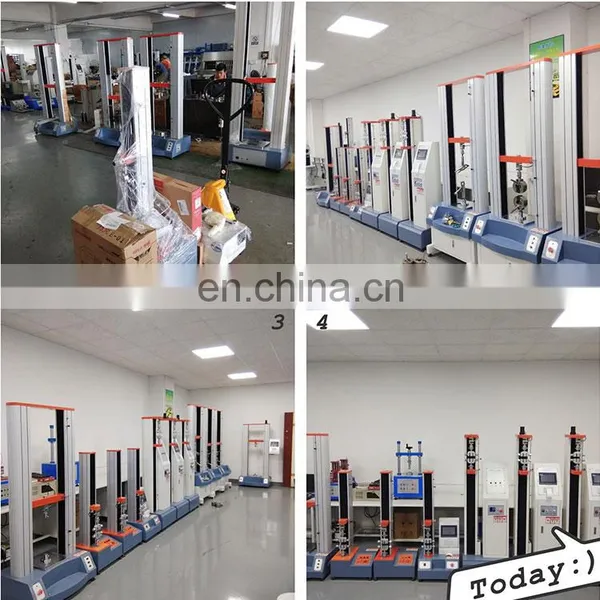

We have professional packing workers to pack your products!
Packing:
1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.
Shipping:
You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt ofyour order. It's more preferable for you to provide us with your own FEDEX/DHL account number so that the delivery charge can be charged directly from your account.

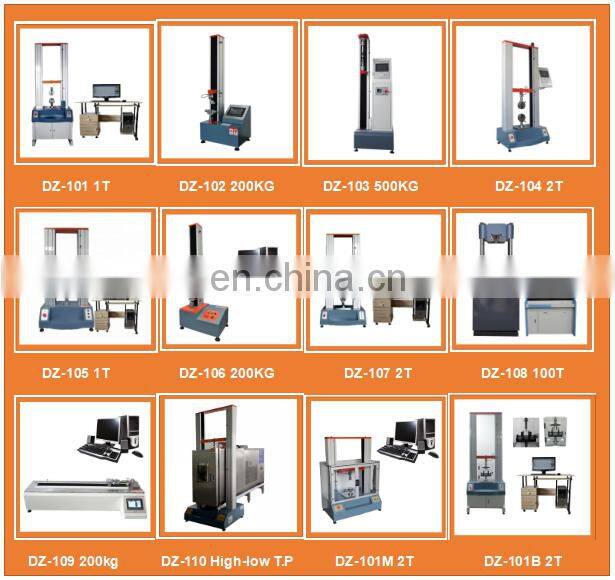

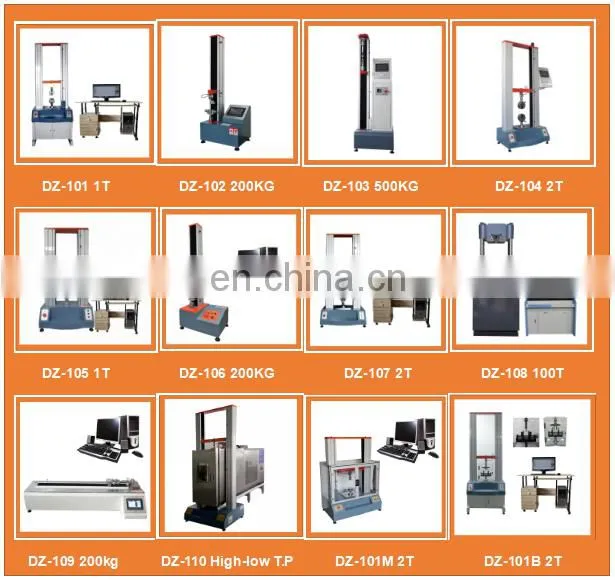

Universal tensiel tester(5T) Universal tensile tester(200kg) Mobile drop tester(1.5/2m) Wire elongation tester
Humidity climatic chamber Dust test chamber 339 Abarasion tester Moving die Rheometer
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
1. Pre-service
- --24 Hours online service for your consult.
- --Help choose right model,and a series of service, person,advise.
2. Middle service
- Give you best offer
- Provide discount for many sets order
- Do customer's request:
- Choose payment term you convienent.
- Promptly production and delivery,inform you in time.
- Can provide invoice value as you like to decrease your tax.
3. After sale service
- 1 year warranty service and all life maintenance.
- Technical Egineer are avalible for oversea trainning.
- Free change for some parts
- Remote control technical consult
- Free installation DVD
- Maintenance plan
4.Commitment
- We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
5.Good Packaging
- Good Packaging: Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
- 1.Are your company a trading one or a factory ?Factory + trade (integration),10 years focusing on test instruments field,3 years exporting experience.
OEM is also acceptable for us.
- 2.What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20
working days after deposit receipt. If you are in urgent need, we can consider making special
arrangement for you.
- 3.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to
your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
- 4.What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and
debugging - balance payment - packing - delivery - customer receiving - after service.
-
5.What is your warranty ?
- 12 months product warranty.Free components will be provided if any performance failure occurs within 12 months caused by non-human damage.
