Universal Leather Tensile Strength Test Machine, Physical and Mechanical Test for Leather

Universal Leather Tensile Strength Test Machine, Physical and Mechanical Test for Leather thumbnail-1
Universal Leather Tensile Strength Test Machine, Physical and Mechanical Test for Leather thumbnail-2
Universal Leather Tensile Strength Test Machine, Physical and Mechanical Test for Leather thumbnail-3
Universal Leather Tensile Strength Test Machine, Physical and Mechanical Test for Leather thumbnail-4
Universal Leather Tensile Strength Test Machine, Physical and Mechanical Test for Leather thumbnail-5
Universal Leather Tensile Strength Test Machine, Physical and Mechanical Test for Leather thumbnail-6
Universal Leather Tensile Strength Test Machine, Physical and Mechanical Test for Leather photo-1
Universal Leather Tensile Strength Test Machine, Physical and Mechanical Test for Leather photo-2
Universal Leather Tensile Strength Test Machine, Physical and Mechanical Test for Leather photo-3
Universal Leather Tensile Strength Test Machine, Physical and Mechanical Test for Leather photo-4
Universal Leather Tensile Strength Test Machine, Physical and Mechanical Test for Leather photo-5
Universal Leather Tensile Strength Test Machine, Physical and Mechanical Test for Leather photo-6
US$ 3,690 - 4,590 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
ZONHOW
Place of Origin:
Guangdong, China
Model Number:
DZ-101
Contact Supplier Request Quote Chat Now
Dongguan Zonhow Test Equipment Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ZONHOW
Place of Origin Guangdong, China
Model Number DZ-101
Power Electronic
Product Description

Universal Leather Tensile Strength Test Machine,

Physical and Mechanical Test for Leather



Summary:

The tensile strength test gives a reliable indication of the quality of the leather. Improperly lubricated and partially degraded leathers give low values for tensile strength. The orientation of the specimen in relation to the backbone and the location of the specimen on the hide influence the results significantly. This test method is excellent for development, control, specification acceptance, and service evaluation of leather. This test method may not apply when the conditions of test employed differ widely from those specified in the test method.



Physical and mechanical tests -- Determination of tensile strength and percentage extension. ISO 3376:2011 specifies a method for determining the tensile strength, elongation at a specified load and elongation at break of leather. It is applicable to all types of leather.



Referenced Standards

D1517 Terminology Relating to Leather

D1610 Practice for Conditioning Leather and Leather Products for Testing

D1813 Test Method for Measuring Thickness of Leather Test Specimens

D2211 Test Method for Elongation of Leather





We are manufacturing and supplying high precision Material Tensile Strength Testing Equipment that are used for determining tensile strength and elongation of textile, rubber, plastic, cables and conductors, leather, asbestos, paper, plywood, metal and other material. It can test material in conformity with IS or other standard. We are pioneer in the manufacturing of tensile testing machine in many Chinese laboratory, that is used for accurate testing results.



Recommended Leather Tensile Strength Test Machine

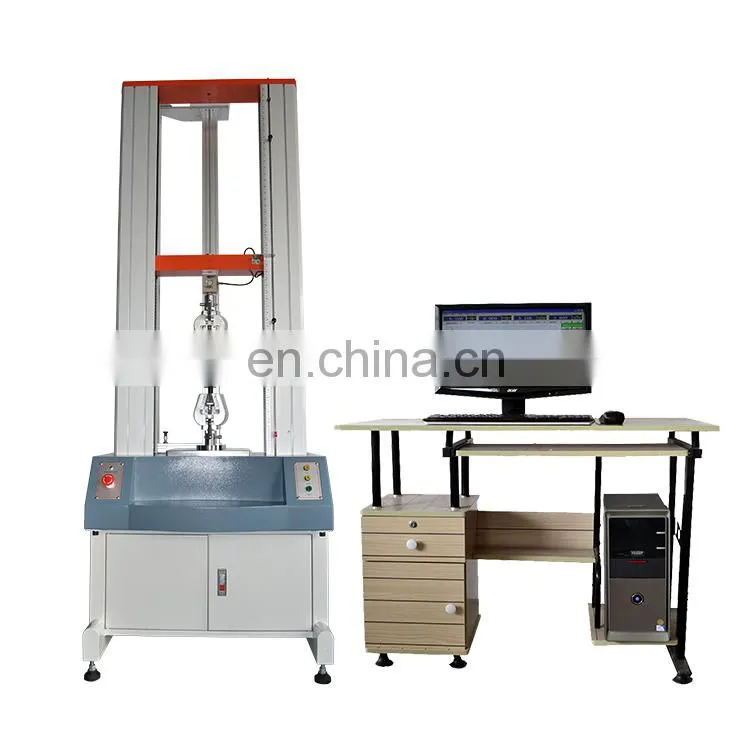

Our Model DZ-101, Servo Universal Tensile Tester

Universal Leather Tensile Strength Test Machine, Physical and Mechanical Test for Leather

Common Tensile Grips

Universal Leather Tensile Strength Test Machine, Physical and Mechanical Test for Leather



Professional designed software. PC to view test results, analysis of data and graph

Universal Leather Tensile Strength Test Machine, Physical and Mechanical Test for Leather





Specifications:

Items

Universal Leather Tensile Strength Test Machine, Physical and Mechanical Test for Leather

Capacity

20,50,100,200,500,1000,2000Kg

Unit

G, KG, N, LB can be exchanged

Accurate Grade

0.5grade

Display Device

PC

Resolution

1/250,000

Effective Accuracy

±0.2%(0.5grade)

Max.Stroke

600mm

Speed Range

0.01-500mm/min (adjustable )

Motor

Servo Motor + High Precise Ball Screw

Elongation Accuracy

0.001mm

Power

AC220V, 50/60HZ(custom-made)

Standard Accessories

Tensile clamp, Tool kit, Computer system, English software CD,

User manual







Click to Talk More with Us







Related Products

Universal Leather Tensile Strength Test Machine, Physical and Mechanical Test for Leather Universal Leather Tensile Strength Test Machine, Physical and Mechanical Test for Leather Universal Leather Tensile Strength Test Machine, Physical and Mechanical Test for Leather Universal Leather Tensile Strength Test Machine, Physical and Mechanical Test for Leather

              DZ-101                                               DZ-104                                            DZ-106                                                 DZ-103

 3/4 Point Bending Tester         Touch Screen Tensile Tester     Single Column Servo Tensile Tester  Single Column Tensile Tester
