Universal Tensile Testing Machine is suitable to test tensile stress, compressive stress, shearing force, peeling force, and elongation of materials, components, and finished products, is widely used in controlling material quality: rubber & plastics;metallurgical iron and steels; manufacturing machinery; electronic equipments; automobile production; textile fibers; wire and cables; packaging materials and foodstuffs; instrumentation; medical equipments; civilian nuclear energy; civil aviation; colleges and universities;research Laboratory; inspection arbitration, technical supervision departments; building materials and so on.
Features
1. Whole facility structure is made of baking varnish aluminum profile,and inner part is applied the high-accuracy,low-resistance and zero clearance of dual-ball screw and oriented pole, through which highly improve the loading efficience and structure rigidity.
2.Use famous brand Panasonic servo motor, which ensure high efficiency,steady transmission and low noise.
3. Apply brand computer as the main control system, computer control with TM2101 software, back to origin automatically after the test, and can store data automatically or by manual operation
4. Data transmission: RS232, and displacement resolution: 0.001mm
5. Graph scale automatic optimization allows best measurement and can implement graphics dynamic switching by the test
Parameters
Items |
Tensile Testing Machine |
Sensor |
Celtron load cell |
Capacity |
100. 200. 500. 1000. 2000. 3000. 10000kg |
Unit Switchover |
G, KG, N, LB |
Display Device |
LCD or PC / Tensile Testing Machine |
Resolution |
1/250,000 |
Accuracy |
±0.5% |
Max. Stroke |
1000mm (including fixture) |
Test Speed |
0.1-500mm/min (adjustable ) |
Motor |
Panasonic Servo Motor |
Screw |
High Precise Ball Screw |
Elongation Accuracy |
0.001mm |
Power |
AC220V, 50HZ or customized |
Weight |
Approx.500kg / Tensile Testing Machine |
Accessories parts |
tensile clamp, computer system, English software CD, operation CD, user manual |

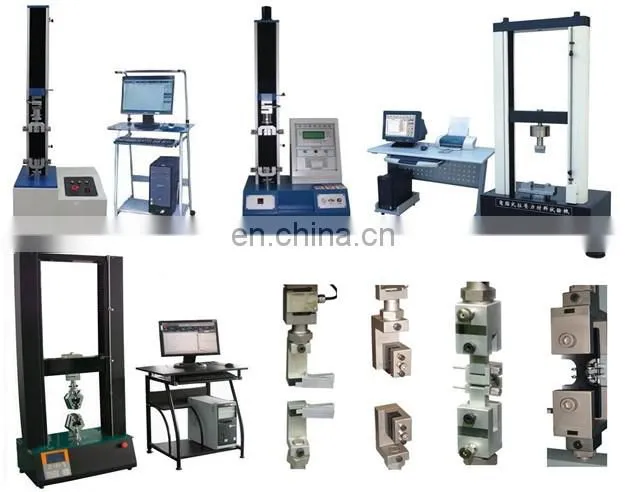

Detailed Photos
We have professional packing workers to pack your products!
1.Out packing:Standard export wooden case;
2.Inner packing:With careful stretch film+ hard cardboard;
We are on line 24 hours, your any questions will get timely effective treatment and recovery.
We love what we do, some might say a bit too much, and we bring enthusiasm and commitment to every project we work on. Put simply, if you want a partner who cares about your TESTING choose Zonhow.
Please Send your inquiry Details in the below for our quotation,Click "Send" Now !
