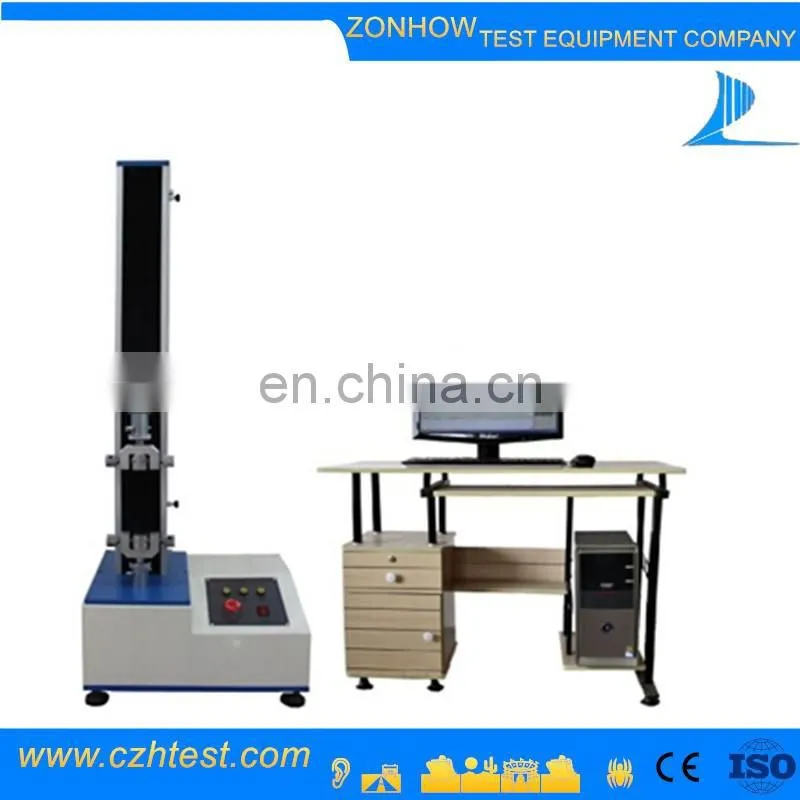

This Tensile strength tester is applicable in testing the rubber, plastic film, cable, fabric, paper, aluminum board and so on. It is ideal for high-capacity tension, compression, bend/flex, and shear testing; these machines are guaranteed to meet the relative requirements of ISO, ASTM, JIN, GB and many other testing standards.
Standards of Computerized Tensile Strength Tester :
ASTMD903, GB/T16491, GB/T1040, GB/T8808, GB13022, GB/T2790/2791/2792,CNS-11888,JIS K6854, PSTC-7 etcand many more.
Parameters of Computerized Tensile Strength Tester
Items |
Computerized Tensile Strength Tester |
Load Cell |
100N, 200N, 500N, 1KN, 2KN(Select one) |
Strength Precision |
±1% |
Strength Resolution |
1/25,000 |
Precision of displacement |
0.001mm |
unit |
Kg, lb , N |
Accuracy |
±0.5% |
Crosshead Speed |
50—500mm/min (Arbitrary Setting) |
Speed Accuracy |
±0.5% |
Motor |
AC motor / Servo motor |
|
Valid Tensile Distance
|
650 mm (The distance between upper and lower grips) (800/1000mm optional) |
Compression Space (After install the grips) |
700mm |
Demension |
500×550×1400mm |
Weight |
Approx.70kg |
Demension |
Full set tensile clamps, User manual |
- Built-in large scale CPLD programmable device with high-speed computation capability and real-time processing digital signal.
- Integrated dual roads precision instrument programmable amplifier, digital zero and automatic smooth shifting.
- Select high quality imported servo valve block, all control signals photoelectric isolation, 24V DC and safe and reliable.
- The professional software runs on Windows98/2000/XP operating system, the testing machine can process test result and then output test report and the characteristic curve design.
- Real-time record and dynamic display test curve, select the point and detail analysis.
- Mode to analyze and calculate mechanical performance of materials, and automatically calculate max force, elongation, tensile strength, elasticity modulus, yield strength, non-proportional extension stress, and E, etc, also with analysis.
- Adopt stable and reliable Japan AC servo driving system and servo motor, with the protection device of over current, over voltage Speeding and overload.
- With the protective function of overload, over current, over voltage, displacement upper and lower limitation and emergency stop.
We are on line 24 hours, your any questions will get timely effective treatment and recovery.
We love what we do, some might say a bit too much, and we bring enthusiasm and commitment to every project we work on. Put simply, if you want a partner who cares about your TESTING choose ZONHOW.
Looking forward to hearing from you, we love to help you on quality control tests!
