Product Details
| Brand Name | KASON | Place of Origin | Shandong, China | |
| Model Number | KS40+, KS40+ |
Product Description

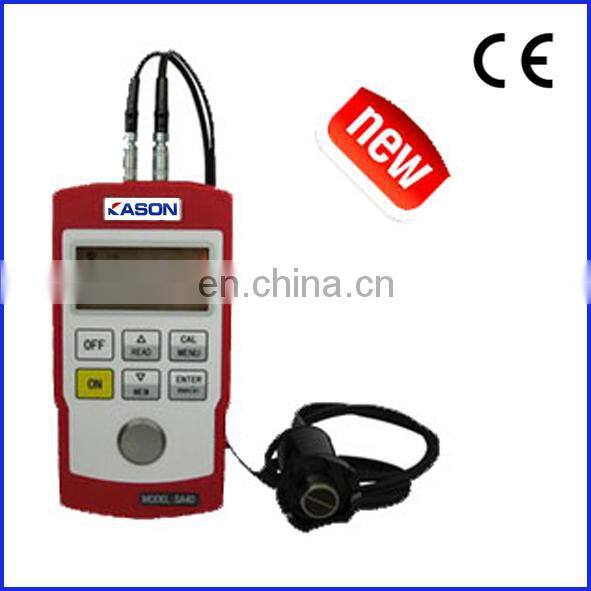

Ultrasonic Thickness Gauge KS40+ with Coating Mode
Product Description
SA40+ thickness meter is controlled by micro-processor based on the ultrasonic measuring principle. It is able to measure the thickness and acoustic speed of various materials transmitted ultrasonic. It is designed to measure the thickness of normal metal materials and metal materials covered with coating.
| Model | KS40+ |
| Display | 4 digits LCD |
| Backlight | Yes |
| Measuring range | 1.00-300.0mm in steel with standard probe(Normal mode) 3.00-20.00mm in steel Thickness for coating:<1.2mm (Coating mode) |
| Resolution | 1.00-9.99mm ±0.05 10.00-99.99mm ±(0.5%H+0.01) 100.0-300.0 ±(1%H+0.1) |
| Unit | mm/inch |
| Velocity | 1000-9999m/s |
| Coupling indicator | Yes |
| Calibration | Auto |
| Memory | 40 data |
| Low battery indicator | Yes |
| Working environment | 0-40℃,20-90%RH |
| Power off | Auto |
| Power supply | AA battery x 2 |
| Net weight(g) | 245 |
| Dimension(mm) | 124x67x30 |
| Standard probe | PT-5 |
| Optional probes | XT-5/GT-5/CT2.5 |
