KS-400G Ultrasonic metal, glass, ceramics thickness Thickness Gauge
- 300 Set / Sets per Month
- Jinan
- T/T Credit Card
- KS310 Portable Digital Metal Ultrasonic Thickness Gauge in Good Price from China
- Manufacturer !!! KS650 Digital Display Ultrasound Metal Detector
- KS650 Digital Ultrasonic Flaw Detector/Supersonic Reflectoscope
- KS650 NDT equipment/ Portable Digital Ultrasonic Metal Flaw Detector
- KS100B Portable Paint Coating Thickness Gauge
- KUT500 Intelligent Portable Ultrasonic Metal Detector
Product Details
Brand Name: | Kason | Model Number: | KS-400G |
Product Description

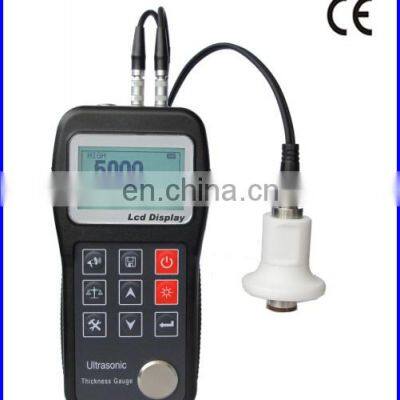

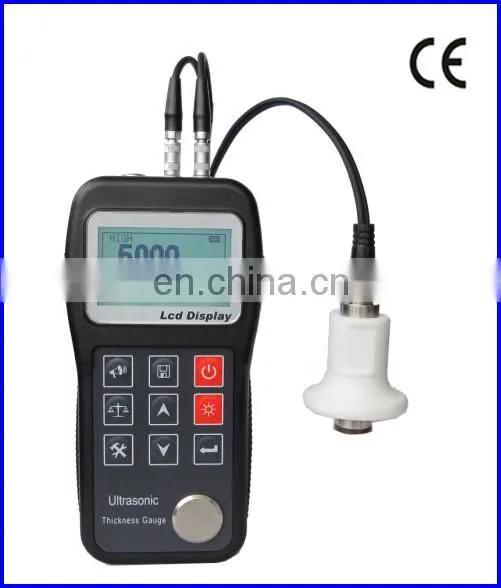

KS 400G 450°C Ultrasonic Pipe Thickness Gauge
Ultrasonic Thickness Gauge KT400G is a new generation of intelligent ultrasonic thickness gauge, using the latest high performance and low power consumption microprocessor technology, based on the principle of ultrasonic measurement, to measure the thickness of metal, glass, ceramics and other materials, and the materials of sound velocity measurement. Is widely used in all kinds of plate, pipe wall thickness, the boiler container wall thickness, all kinds of pipeline and pressure vessel, thickness measurement, monitor them in the process of using the degree of corrosion after thinning. With communication software, can be connected to computer.
Main function:
Suitable for measuring metal (such as steel, cast iron, aluminum, copper, etc.), plastic, ceramic, glass, glass fiber and other any good conductors of ultrasonic thickness.
Can be equipped with a variety of different frequency, chip size, double crystal probe use.
Have probe zero calibration, a two-point calibration function, can be automatically on system error correction.
Thickness can be known the sound velocity measurement, in order to improve the accuracy of measurement.
With functions of coupling status alerts.
LED backlight display, convenient to use in dark environment.
The battery indicator function, can real-time display the battery remaining power.
With automatic power saving function dormancy, automatic shutdown, etc.
Small, portable, high reliability, suitable for bad operating environment, vibration, impact resistance and electromagnetic interference.
The background data processing function; PC communication function; printing support.
Technology Parameter:
Measuring range: | 0.75mm~300.0mm(0.03inch~11.8inch) |
Units: | Metric/Imperial unit seletable |
Sound Velocity Range: | 1000m/s~9999m/s(0.039~0.394in/μs |
Display resolution: | 0.01mm or 0.1mm(lower than 100.0mm) 0.1mm(more than 99.99mm) |
Accuracy: | ±(0.5%Thickness+0.04)mm,depends on Materials and conditions |
Data Memory: | 5 files(up to 100 values for each file)of stored values 5 Sound Velocity of stored values |
Power Source: | 2pcs 1.5V AA size,batteries.250 hours typical operating time(LED backlight off) |
Outline Dimensions: | 150mm*74mm*32mm |
Workpiece surface temperature: | - 10 ~ 450°C |
The minimum thickness value capture capacity | With a minimum thickness value capture capacity |

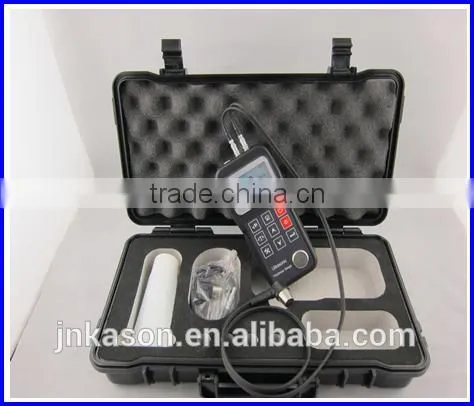

Standard configuration | KT400G host, 5MHz High temperature up to 450 degree probe, 4 mm steel calibration block, coupling agent, 2 batteries (non - Aviation),Software, RS232 Connect Cabble |
Measurement cycle: | 4 times/SEC, scanning of single point measurement model 20 times per second. |
Weight: | 238 g |
Power source: | Type AA alkaline battery 1.5 V (2) |
Optional attachments: | 2 MHZ, 7 MHZ and 5 MHZ (high temperature) |
Optional probe and parameters :
Model | Freq MHZ | Diam mm | Measuring Range | Lower limit | Description |
N02 | 2 | 22 | 3.0mm~300.0mm(In Steel) 40mm (in Gray Cast Iron HT200) | 20 | for thick, highly attenuating, or highly scattering materials |
N05 | 5 | 10 | 1.2mm~230.0mm(In Steel) | Φ20mm×3.0mm | Normal Measurement |
N05 /90° | 5 | 10 | 1.2mm~230.0mm(In Steel) | Φ20mm×3.0mm | Normal Measurement |
N07 | 7 | 6 | 0.75mm~80.0mm (In Steel) | Φ15mm×2.0mm | For thin pipe wall or small curvature pipe wall measurement |
HT5 | 5 | 14 | 3~200mm (In Steel) | 30 | For high temperature (lower than 300°C) measurement. |
