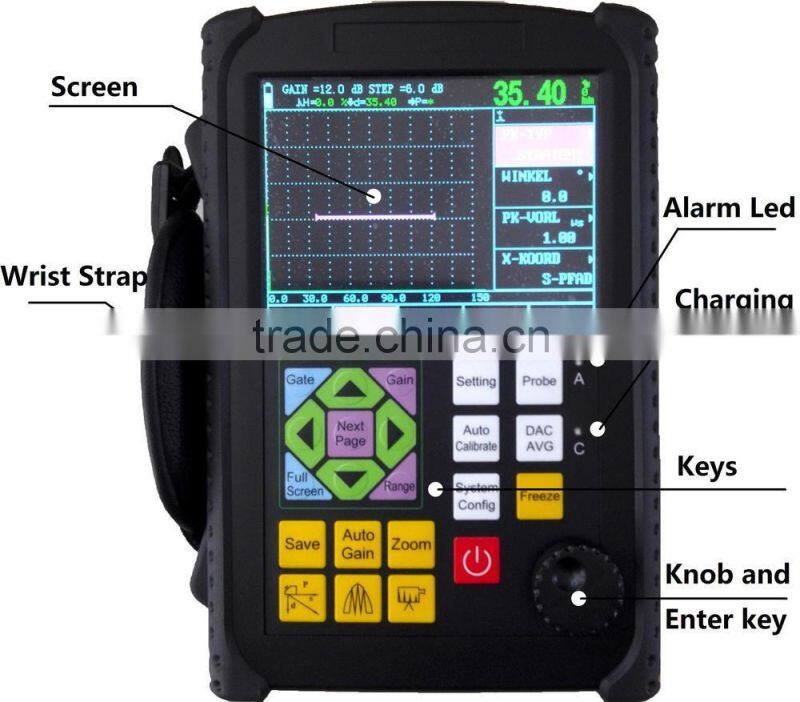

KS650 Digital Ultrasonic Flaw Detector/Supersonic Reflectoscope

FOB Price

USD $1,500 - $2,500 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port All Ports of China
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	KS/Kason		Place of Origin	Shandong, China
Model Number	KS650

Product Description

KS650 Digital Ultrasonic Flaw Detector/Supersonic Reflectoscope

Product Description

Main feature:

*Automated display precise flaw location(Depth d, level p,distance s,amplitude,sz dB);

*Unlimited of video time

*Automated to switch three staff gauge ((Depth d,level p,distance s);

*Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity ;

*Convenient to make and use DACTCG and AVG to evaluate the echo, the curve can be modified and compensated;

*6dB DAC functions;

*Standards of test for DAC is saved.

*500 independence setup, any criterion can be input freely, we can work in the scene without test block;

*Big memory of 1000 A graph

*Automated gain and gain scan;

*Peak Hold and Peak Memory;

*B scan;

*AWS D1.1

*Automated make video of test process and play; use USB flash disk,the length of video is unlimited.

*Powerful pc software and reports can be export to excel;

*Li battery, continue working time up to 10 hours;

*The embeded software can be online updated;

*Display freeze;

*Automated echo degree;

*Angles and K-value;

*Lock and unlock function of system parameters;

*Electronic clock calendar ;

*Two gates setting and alarm indication;

*Gate and DAC alarm;

	KS 650
Measuring range	0-10000mm
Gain	0-120dB
D-Delay	D-Delay -20µs~+3400µs
Resolution	0.1mm(2.5mm~100mm) 1mm(>100)
P-Delay	0µs~99.99µs
Sound speed	1000 m/s~15000m/s
Temperature	10℃~50℃
Humidity	20%~90%RH
Power	Li-battery
Working time	>10 hours
Display	LED true color
Size	238mm155mm46mm
Weight	1kg

KS650 Digital Ultrasonic Flaw Detector/Supersonic Reflectoscope

Detail Show:

Packaging & Shipping

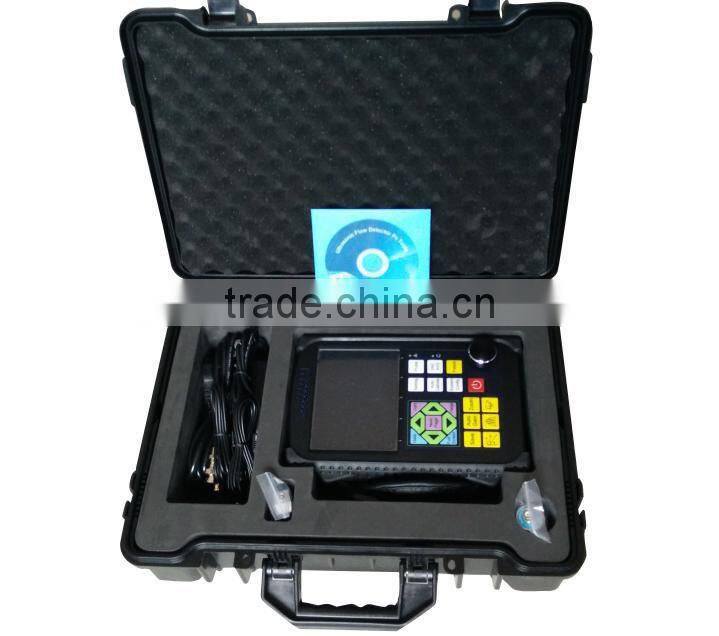

KS650 Digital Ultrasonic Flaw Detector/Supersonic Reflectoscope Packaging :
