Description:
The force gauge has advantages of high precision, easy operation and carry. What's more, it has kinds of testing modes, convenience for conner and it can store and input data to computer for statistical analysis as well as constitutes testers with different functions, combination with test-beds and clamp.
Users can input local acceleration of gravity value to make test more precise.
Functional characteristics
1.High precision and high resolution.
2.Five testing modes and three display methods for selection----enhance testing efficiency to the maximum extent.
3.N (Newton), kg (Kilogram) and Ib (Pound) three measuring units for selection and conversion.
4.6 digits large screen display.
5.Setting function of gravity acceleration----User can input at your option the accurate value of gravity acceleration at the using place so as to make the testing and unit conversion be more accurate.
6.Max. and min. and comparison value can be setted for statistic analysis. The buzzer will alarm if exceeding comparison value.
7.Data storage function. 896 testing values can be stored.
8.Data output function. The data can be input into computer through data line for various analyses.
9.Environmental protection. The device will automatically stop if no operation within 10 minutes.
10.High quality chargeable power supply. The charging voltage is avai-lable from 100V to 240V, which can accommodate most areas in domestic and at abroad. It has also protection functions for short circuit, leakage and overload.
11.2 sets mounting dimensions, it is applied for most testing platforms domestically and easy for users to install it to platform.
12.Special testing function of make-break ability of switch contact to make the make-break testing be more accurate.

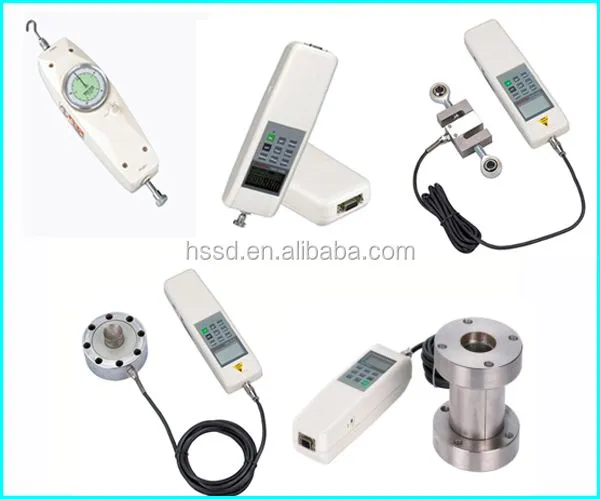

Model specification sheet of force gauge with external sensor
|
Model specification |
HF-2000 |
HF-5000 |
HF-10K |
HF-20K |
HF-50K |
HF-100K |
HF-200K |
HF-500K |
HF-1000K |
|||
|
Peak load value |
2000N |
5000N |
10KN |
20KN |
50KN |
100KN |
200KN |
500KN |
1000KN |
|||
|
load division value |
1N |
1N |
0.01KN |
0.01KN |
0.01KN |
0.1KN |
0.1KN |
0.1KN |
1KN |
|||
|
0.1kg |
0.1kg |
0.001kg |
0.001kg |
0.001kg |
0.01kg |
0.01kg |
0.01kg |
0.1kg |
||||
|
0.1lbs |
0.1lbs |
0.001Klbs |
0.001Klbs |
0.001Klbs |
0.01Klbs |
0.01Klbs |
0.01Klbs |
0.1Klbs |
||||
|
Indication error |
±1% |
±1% |
||||||||||
|
Unit |
N / (KN), kg / (Mg or t), lb (KIb) |
|||||||||||
|
Data interface |
Rs232 nine-hole socket |
|||||||||||
|
Power |
rechargeable batteries, charger(charging voltage 100V-240V) |
|||||||||||
|
Sensor structure |
S-tye or column sensor with high precision (external sensor) |
|||||||||||
|
Ambient temperature |
5° C~35° C |
|||||||||||
|
Transport temperature |
-10° C~60° C |
|||||||||||
|
Relative humidity |
15%~80%RH |
|||||||||||
|
Working conditions |
No hypocenter and corrosive medium |
|||||||||||
|
Gross weight |
6 kg |
9 kg |
24 kg |
36 kg |
||||||||
|
Size |
280 x 200 x 170 mm |
310 x 260 x 190 mm |
||||||||||
