SMU-5060EM & Manual Type Video Measuring Machine Manufacturer & Vision Measuring Machines Supplier

Worktable

Marble top size (mm)

660*760

760*960

960*1160

Glass Worktable size (mm)

550*650

650*850

850*1050

X/Y Travel (mm)

500*600

600*800

800*1000

Bearing capacity of glass worktable(KG)

25KG

XY Base

Grade 00 Ji’Nan Green Marble

Weight(KG)

380KG

500KG

700KG

Outline size(L*W*H)mm

1400*1250*1650

1500*1450*1650

1600*1650*1650

X,Y,Z Resolution(mm)

0.001

Accuracy(μm)

≤3+L/200

≤4+L/200

≤5+L/200

Z axis Travel (mm)

Effective stroke: 200mm, working distance: 90mm

 (Can be customized made to 400mm)

Transmission system

High precision transmission guide rail, precision polished rod

Power Supply：AC220V/50HZ          AC110V/60HZ

Video system

Camera: 1 / 3 "HD color industrial camera               Zoom lens magnification: 0.7X-4.5X

Image magnification: 20X-128X

(optional 0.5X objective / 2X objective)

Zoom lens

0.7X～4.5X

0.7X～4.5X

Working distance

(mm)

Additional lens

Magnification

Object view(mm)

Magnification

Object view(mm)

0.5X(optional)

10X～64X

22～3.4

5X～32X

44～6.8

175

1X(standard)

20X～128X

11～1.7

10X～64X

22～3.4

92

2x(optional)

40X～256X

5.5～0.9

20X～128X

11～1.7

36

Industrial computer (standard configuration)

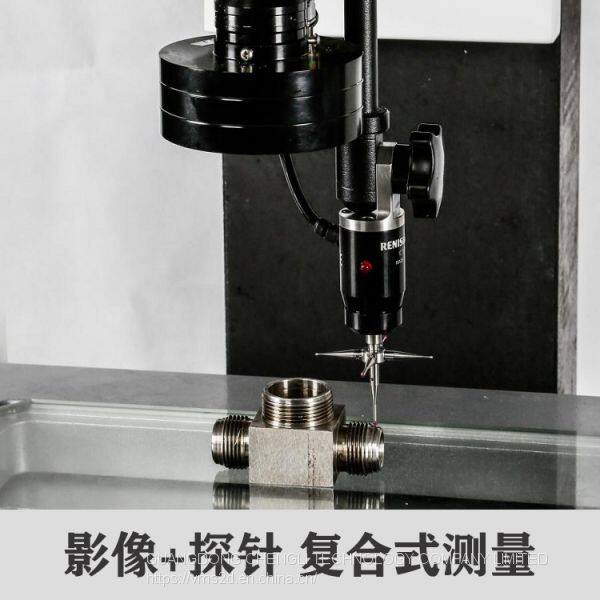

Optional on-axis light,foot switch,prober
