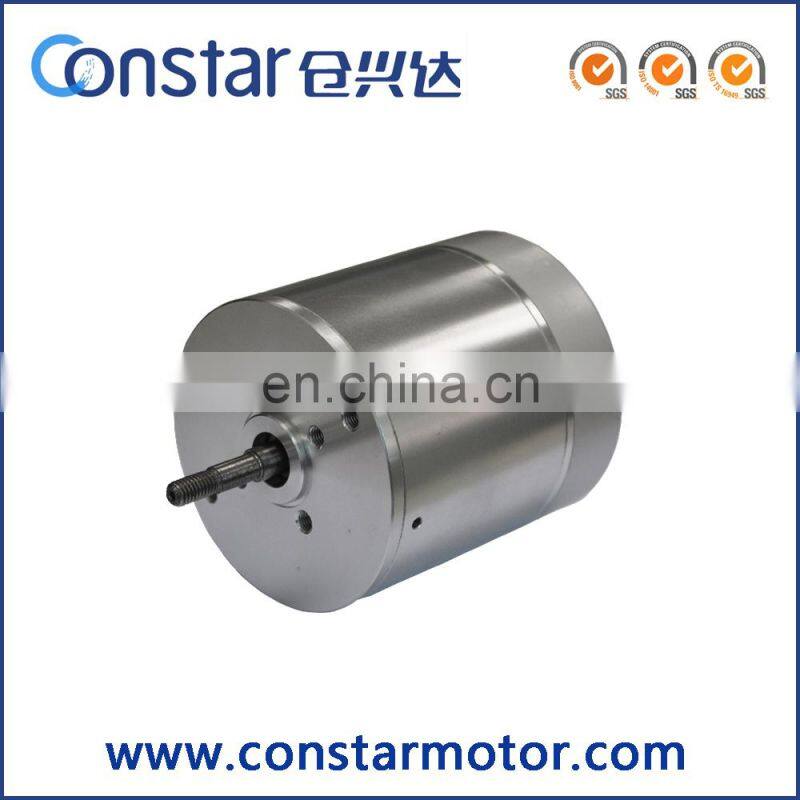

Custom China 24v Bldc Motor With Bldc Motor Controller
US$ 6 - 60
/ Piece
100 Pieces(Min. Order)
- Shenzhen or HK
- T/T Credit Card
You May Like
-
China High Power Bldc 24v 180W 200w 350W Motor
-
75*84mm Low Rpm High Torque Bldc Motor 24v
-
CE &ISO Approved High Quality 24V Blower With Brushless Dc Motor
-
High Power 1KW 24v Dc Brushless Lawn Mower Motor
-
24v Home Care Respiratory Treatment Brushless Centrifugal Blower
-
Customized High Power BO6133 Brushless dc Motor 24v 500w
Product Details
| Brand Name | Constar | Place of Origin | Guangdong, China | |
| Model Number | 7584ZWND | Type | Micro Motor | |
| Certification | CE, ROHS | Torque | 106mNm | |
| Usage | Boat, Car, Home Appliance | Construction | Permanent Magnet | |
| Protect Feature | Totally Enclosed | |||
| Continuous Current(A) | 3.2A | Speed(RPM) | 6300RPM | |
| Commutation | Brushless |
Product Description

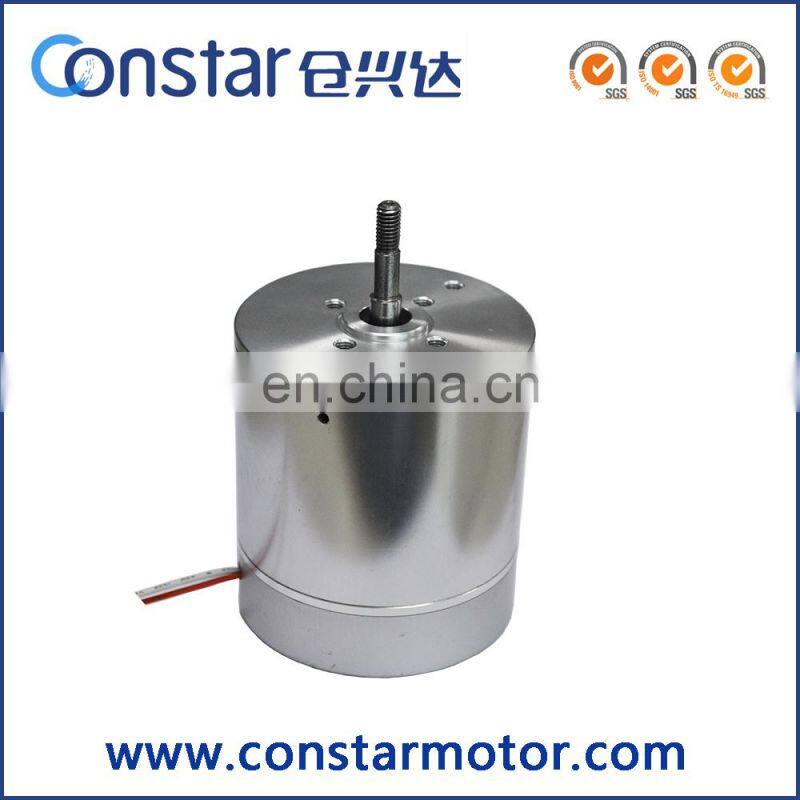

Custom china 24v bldc motor with bldc motor controller
| |||
| CONSTAR MICROMOTOR | |||
| | | |

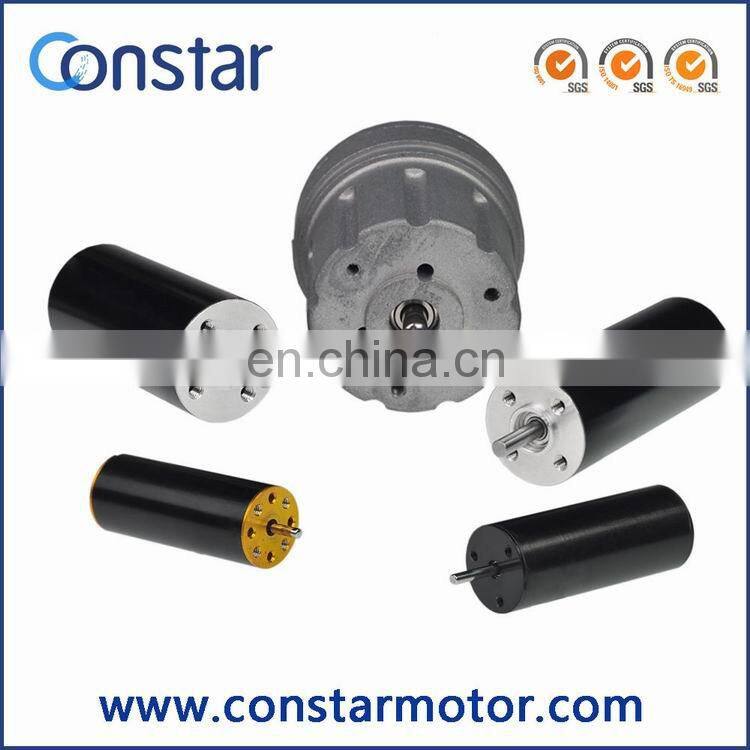

| Brushless DC Motor | DC Coreless Motor | Gearmotor | Sonic Motor |
Precision driving field in medical equipment, industrial automation, etc.
| Characteristics | |||
| -1-24.0 | |||
| 1 | Voltage | V | 24 |
| 2 | Operating Voltage | V | 12~26 |
| 3 | Terminal resistance | Ω | 2.8 |
| 4 | No-load speed | rpm | 6300 |
| 5 | No-load current | A | 0.3 |
| 6 | Nominal torque | mNm | 106 |
| 7 | Nominal speed | rpm | 4000 |
| 8 | Nominal current | A | 3.2 |
| 9 | Max. output power | W | 49 |
| 10 | Max. efficiency | % | 69 |
Lead wires length, Shaft length, Special coils, Gearheads, Bearing type

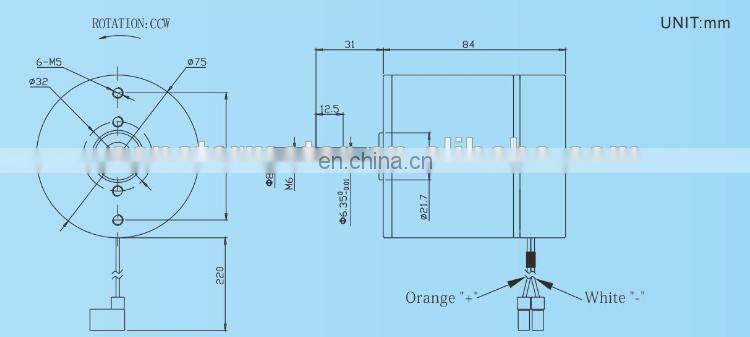

| Series | Dimension (mm) | Voltage (V) | No-load Speed (rpm) | No-Load Current (mA) | KV Value (rpm/V) | Torque Constant (mNm/A) |
|---|---|---|---|---|---|---|
| 2040ZWWND | Φ20*40 | 6.5 | 2900 | 20 | 450 | 18 |
| 2135ZWWND | Φ21*35 | 12 | 6500 | 100 | 540 | 15.6 |
| 7584ZWND | Φ75*84 | 24 | 6300 | 300 | 263 | 35 |
Custom china 24v bldc motor with bldc motor controller
