China Factory 24v Electric Garden Tools Motor 1000W Bldc Motor for Power Tools
US$ 35 - 50
/ Piece
5 Pieces(Min. Order)
- Shenzhen or HK
- T/T Credit Card
You May Like
-
N20 12mm Micro Dc Geared Motor 6v Share Bike Lock Motor
-
China Factory High Power Toys Reducer Motor Gear 12mm Micro Geared Motor
-
Mini Electric Gear Motor With High Torque And Low Rpm
-
3V 6mm Micro DC Gear Motor
-
China Small Gear Reducer Motor dc 12 Volt
-
Hot Sale High Quality 12v Miniature Dc Planetary Gear Motor
Product Details
| Brand Name | Constar | Place of Origin | Guangdong, China | |
| Model Number | BO6452N3B | Type | Micro Motor | |
| Certification | CE, ROHS | Torque | 1400mNm | |
| Usage | Fan, Home Appliance | Construction | Permanent Magnet | |
| Continuous Current(A) | 3.5A | Speed(RPM) | 10600rpm | |
| Commutation | Brushless |
Product Description
China factory 24v electric garden tools motor 1000W bldc motor for power tools
| CONSTARMICROMOTOR | |||
|
|
|
|
| BRUSHLESS DC MOTOR | DC CORELESS MOTOR | DC GEARMOTOR | SERVO MOTOR |
1. Applications:Tools,UAV, industrial automation, etc.
2. Operating Environment:-40~+100°C
3. Characteristics :
The following are our standard products, we also provide customized products and service.
| 01-80-40.0 02-106-24.0 03-104-36.0 | ||||||
| 1 | Voltage | V | 40.0 | 24.0 | 36.0 | |
| 2 | Terminal resistance | Ω | 0.08 | 0.018 | 0.043 | |
| 3 | No-load speed | rpm | 8000 | 10600 | 10400 | |
| 4 | No-load current | A | 1.3 | 3.5 | 3.0 | |
| 5 | Stall torque | mNm | _ | _ | _ | |
| 6 | Stall current | A | _ | _ | _ | |
| 7 | Nominal torque | mNm | 1180 | 1400 | 1500 | |
| 8 | Nominal speed | rpm | 7500 | 9800 | 9600 | |
| 9 | Nominal current | A | 26 | 70 | 49 | |
| 10 | Max. output power | W | 1040 | 1680 | 1764 | |
4. Options:Lead wires length, Shaft length, Special coils, Bearing type, Driver

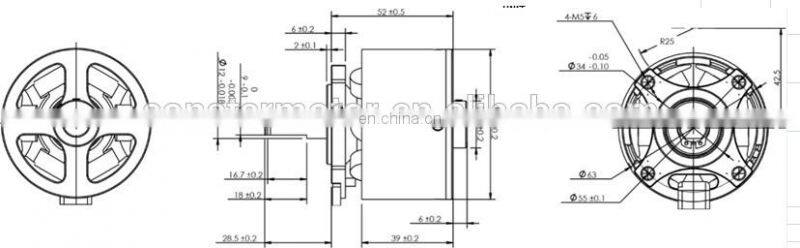

5,Outline Drawing:

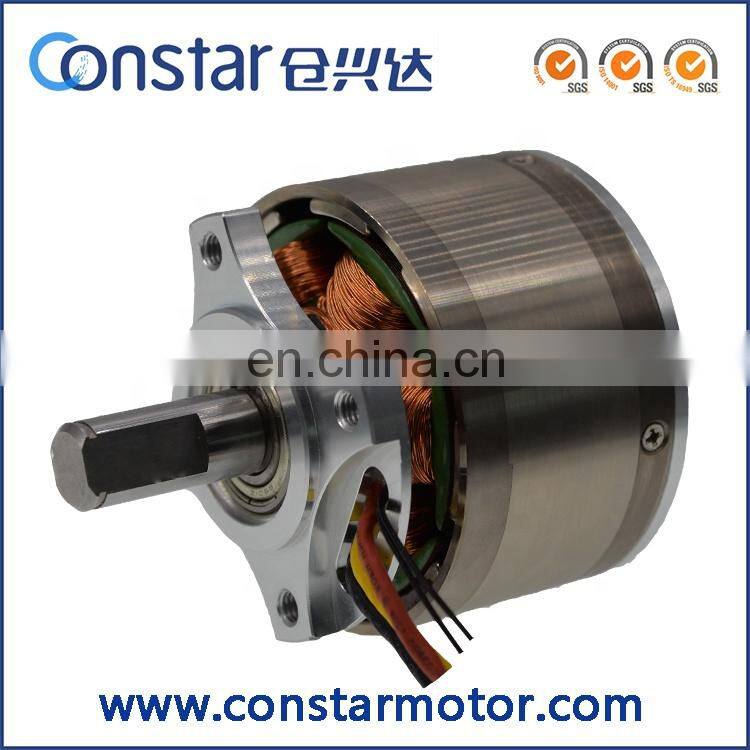

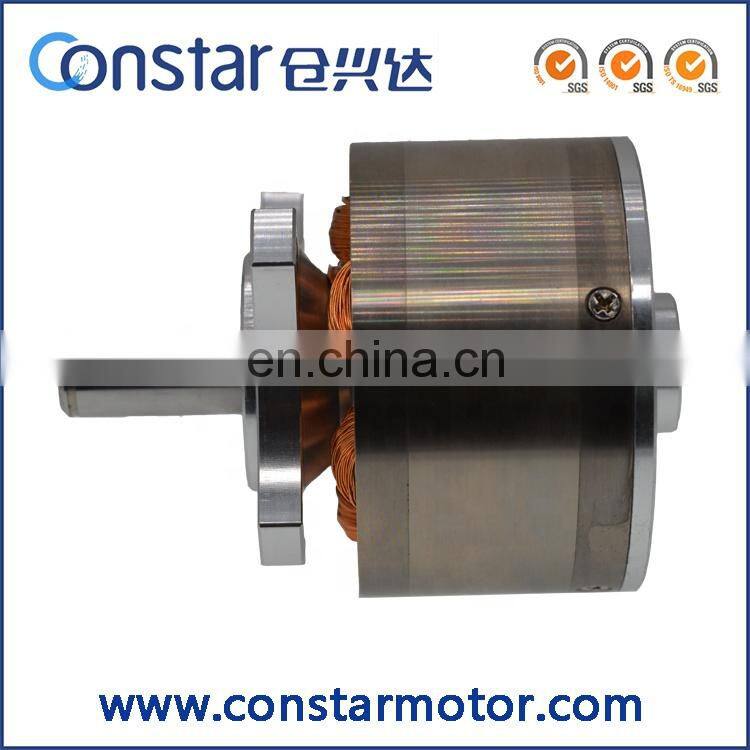

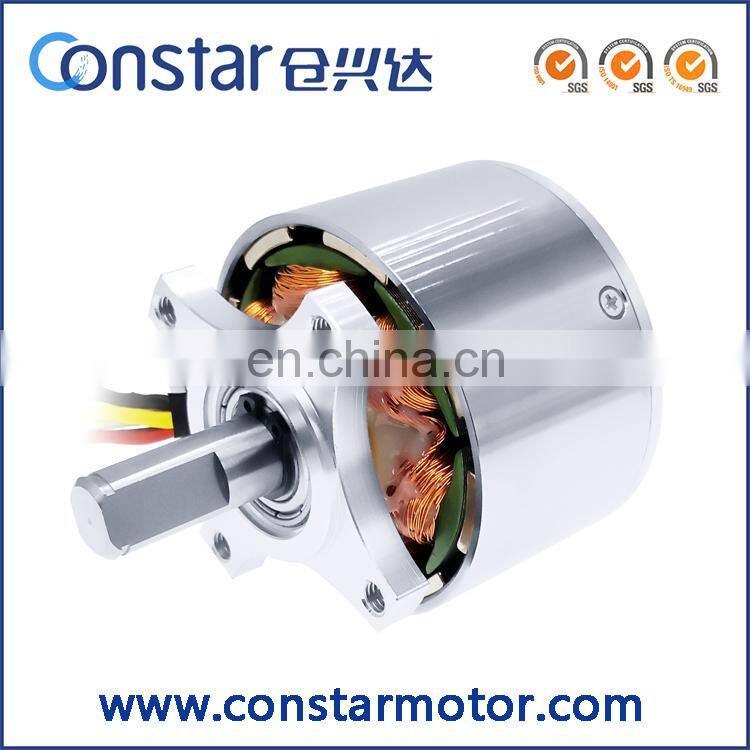

6,Photo:
China factory 24v electric garden tools motor 1000W bldc motor for power tools
