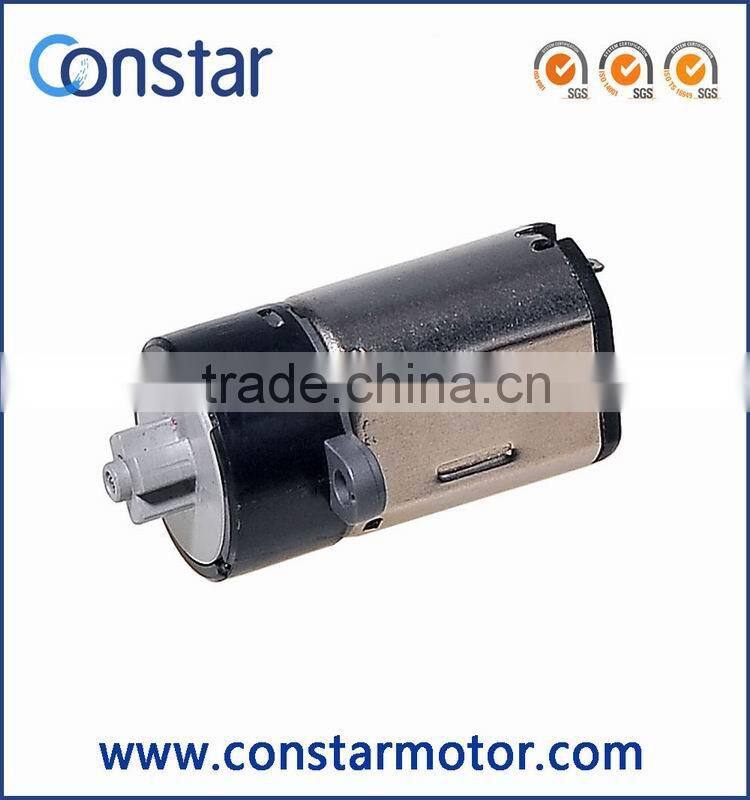

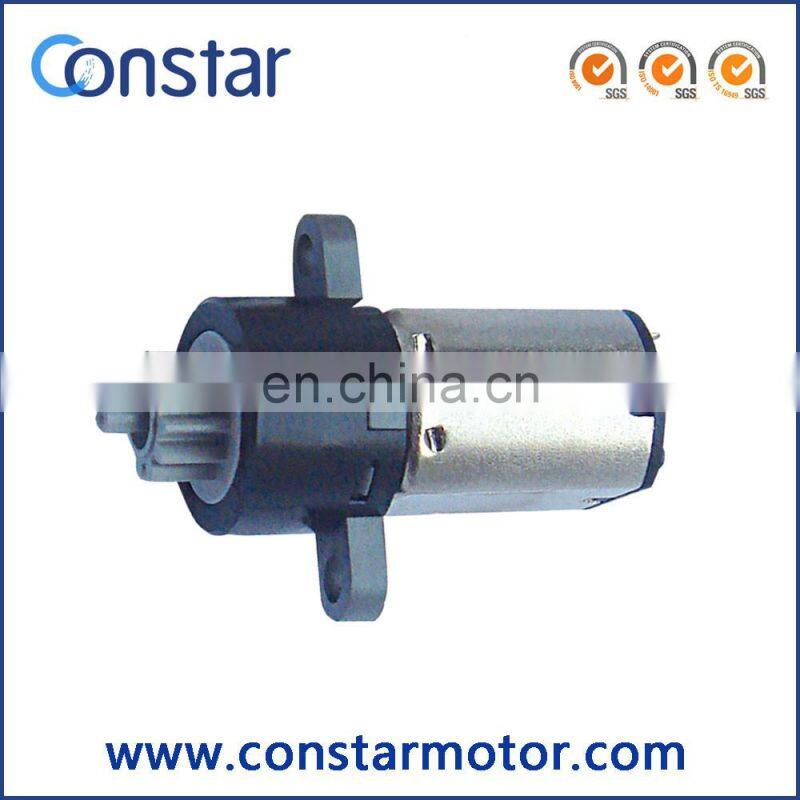

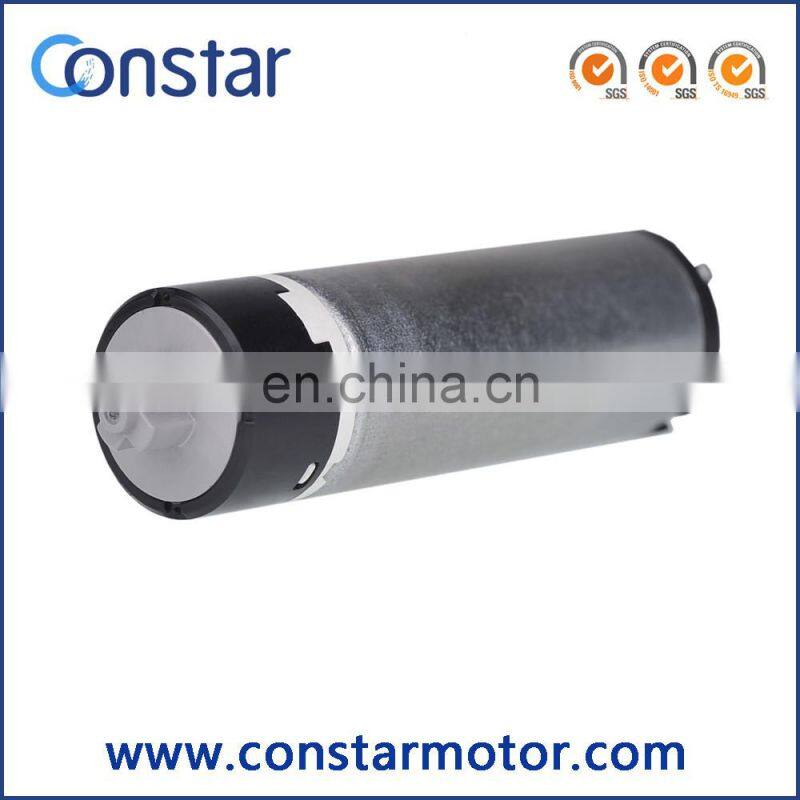

Mini Electric Gear Motor With High Torque And Low Rpm
| CONSTAR MICROMOTOR | ||
| | |
| PRECISION DC CORELESS MOTOR | BRUSHLESS DC MOTOR | SERVO MOTOR |
| | |
| GEARMOTOR | STEP MOTOR | MINI CORELESS MOTOR |
1. Applications: Audio and visual products, high-end toys, personal health care products and security equipment
2. Operating Environment: -10~+60°C; 15~90%RH
3. Characteristics:
Standard Size Series | Voltage (V) | Terminal resistance (Ω) | No-load Speed (rpm) | No-load Current (mA) | Load Torque (mNm) | Load Speed (rpm) | Load Current (mA) | Max Torque (mNm) | Reduction ratio |
GH1208FC electric gear motor -1215F050-2.5 | 2.5 | 3.5 | 95 | 60 | 14.7 | 75 | 180 | 68.6 | 1/120 |
4. Options: Lead wires length, shaft length, special coils, gearheads

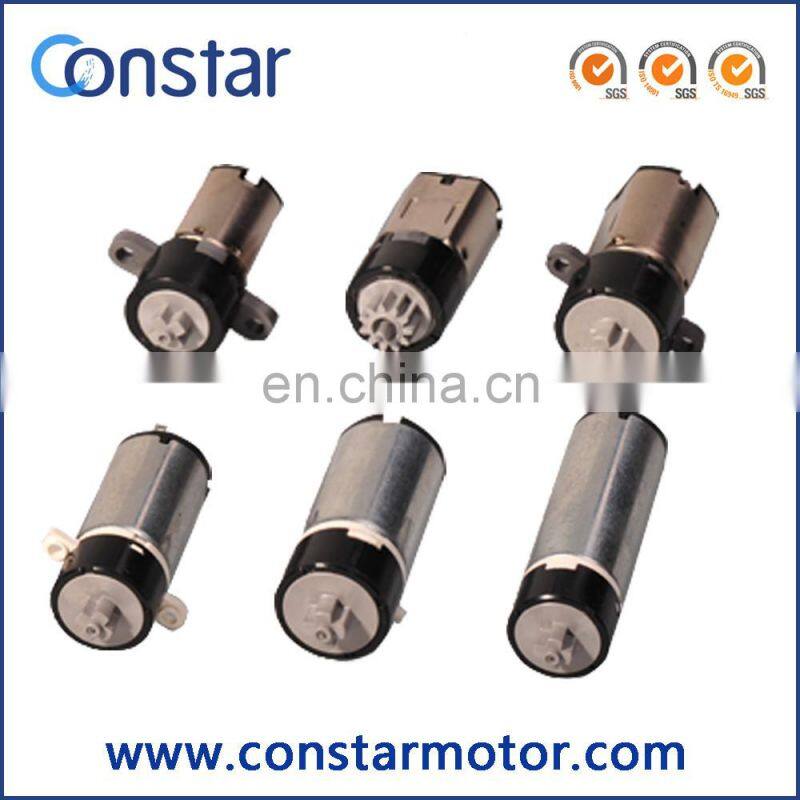

5,Product show:
CONSTAR MICROMOTOR specialize in design, custom and manufacture electric motors,including DC Coreless Motor, Sonic Motor, Brushless DC Motor, Gear Motor, Servo Motor, DC Core Motor and Mini Step Motor.All of them can be fully and easily customized . We committed to offer high quality, high performance, cost effective options to meet customers specific demands. Choosing to customize one of the motors in our Product Categories now!
6,Other Item:
| Series | Voltage (V) | Termanal resistence (Ω) | No-load Speed (rpm) | No-Load Current (mA) | Max Torque (mNm) | Reduction Ratio |
|---|---|---|---|---|---|---|
| GH0607F -0609R001-20-3.0 | 3 | 13.7 | 1240 | 45 | 32 | 1/25 |
| GH1007FC-1012F050-2.5 | 2.5 | 3.7 | 110 | 100 | 37.2 | 1/171 |
| GH1007FG-1012F050-2.5 | 2.5 | 3.1 | 110 | 100 | 37.2 | 1/171 |
| GH1007RC-1012F050-2.5 | 2.5 | 3.7 | 110 | 100 | 37.2 | 1/171 |
| GH1208FC-1215F050 -2.5 | 2.5 | 3.5 | 95 | 60 | 68.6 | 1/120 |
| GH1208FC-1215F051 -5.0 | 5 | 17.8 | 88 | 35 | 62.7 | 1/120 |
| GH1208FC-1220R018 -3.0 | 3 | 4 | 105 | 100 | 76.4 | 1/120 |
| GH1208FC-1230R003 -2.5 | 2.5 | 1.2 | 100 | 150 | 166.6 | 1/120 |
| GH1208RC-1230R004 -5.0 | 5 | 7.5 | 86 | 70 | 137.2 | 1/120 |
