8mm Planetary DC Gear Motor
| CONSTAR MICROMOTOR | ||
| | |
| PRECISION DC CORELESS MOTOR | BRUSHLESS DC MOTOR | SERVO MOTOR |
| | |
| GEARMOTOR | STEP MOTOR | MINI CORELESS MOTOR |
1.Applications: Audio and visual products, high-end toys, personal health care products and security equipment
2.Characteristics:
The following are our standard products, we also provide customized products and service.
Series | Dimension (mm) | Voltage (V) | No-load Speed (rpm) | No-load Current (mA) | Load Torque (mNm) | Load Speed (rpm) | Load Current (mA) | Max Torque (mNm) | Reduction Ratio | |
GB0812R001-16 -0816RK002 | φ8*28.5 | 8 | 930 | 15 | 2.94 | 670 | 40 | 11.8 | 1/16 |
3.Options: Lead wires length, shaft length, special coils, gearheads.

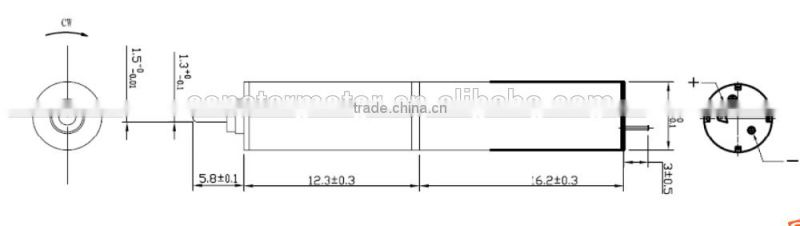

4.Outline Drawing:

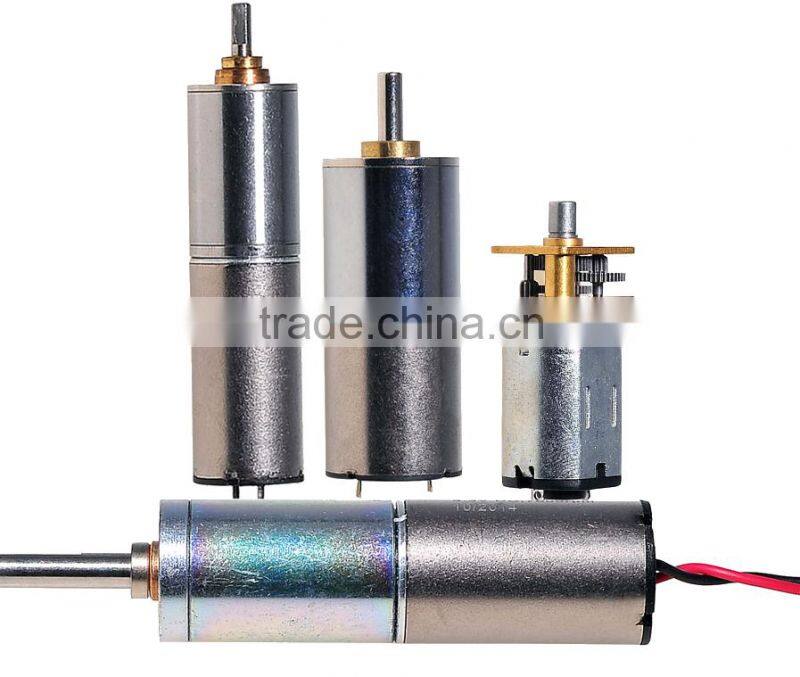

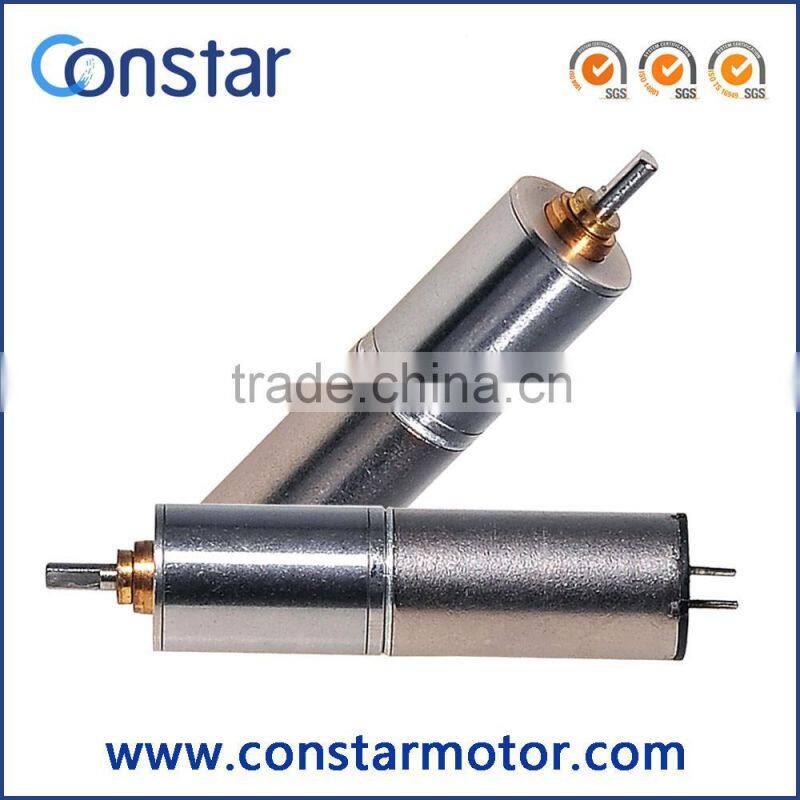

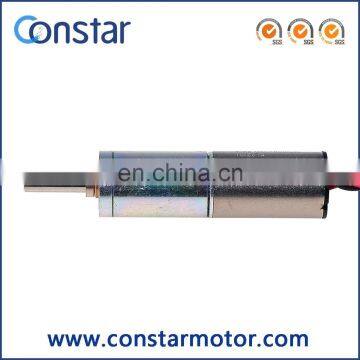

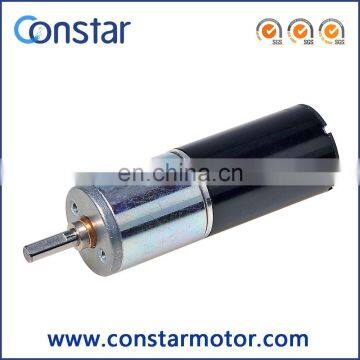

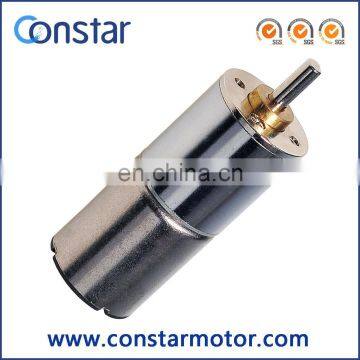

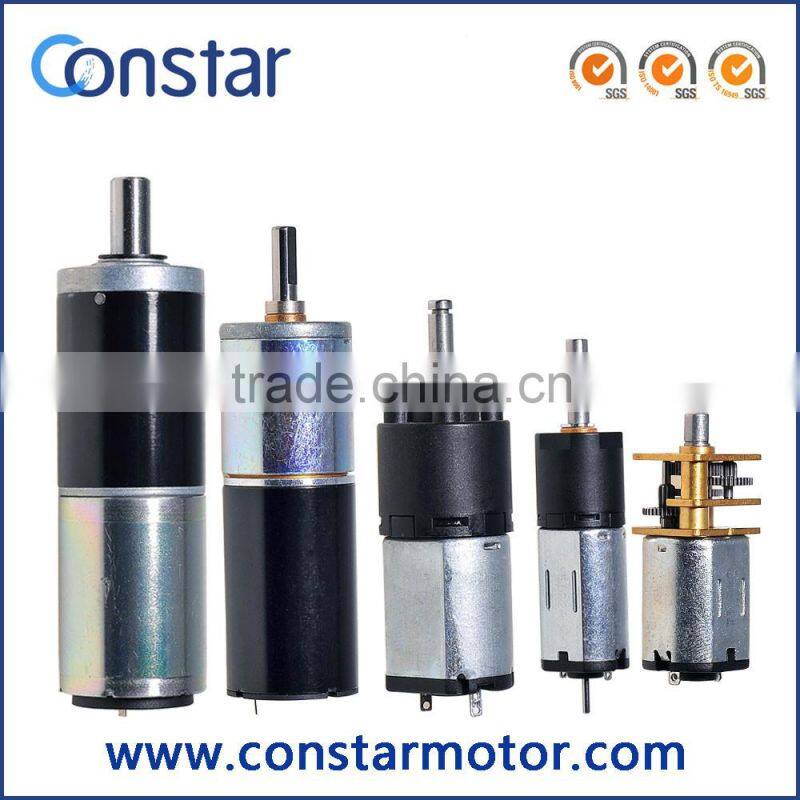

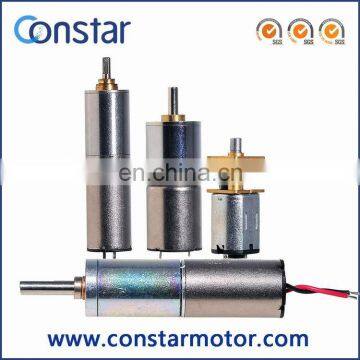

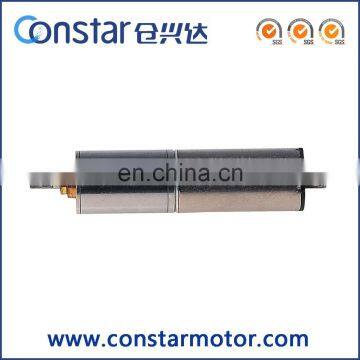

5.Photo:
6.Customized Motor Solutions
CONSTAR MICROMOTOR specialize in design, custom and manufacture electric motors,including DC Coreless Motor, Sonic Motor, Brushless DC Motor, Gear Motor, Servo Motor, DC Core Motor and Mini Step Motor.All of them can be fully and easily customized . We committed to offer high quality, high performance, cost effective options to meet customers specific demands. Choosing to customize one of the motors in our Product Categories now!
7.Other Item:
| Series | Voltage (V) | Termanal resistence (Ω) | No-load Speed (rpm) | Reduction Ratio |
|---|---|---|---|---|
| GB06**R-0615RCN57-2L27-80-3.0 | 3 | 8.3 | 18500 | 4(3.7)-699 |
| GB08**R-0816RCN51-1-8.0 | 8 | 60 | 15400 | 4-4096 |
| GB10**R-1016RCN51-90-12.0 | 7.5 | 56 | 10900 | 4-4096 |
| GB12**R-1230RN51-8-12.0 | 9 | 17 | 6300 | 4-4096 |
| GB13**R-1230RN51-8-12.0 | 9 | 17 | 6300 | 4-4096 |
| GB16**R-1627RCN51-21P-12.0 | 12 | 71.3 | 8500 | 4-3027 |
| GB22**R-2233RCN52C-38L17P-30-12.0 | 12 | 70 | 2300 | 5-3968 |
| GB28**R-2960ZWND-1-11.0 | 11 | 0.5 | 24500 | 4-939 |
8mm Planetary DC Gear Motor
