24v Bldc Electric Motor for Micro Air Pump
US$ 10 - 50
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
Constar
Place of Origin:
Guangdong, China
Model Number:
B2440NH2B
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Torque 24v Brushless Gimbal Motor Hollow Shaft for Laser RadarUS$ 5 - 45MOQ: 2 Pieces -
Mini 24mm Hollow Shaft Motor 12v 8000rpm Brushless Dc Motor For CameraUS$ 5 - 45MOQ: 2 Pieces
-
China Factory 24v Electric Garden Tools Motor 1000W Bldc Motor for Power ToolsUS$ 35 - 50MOQ: 5 Pieces
-
New Design 32MM 12v Slotless Brushless DC Flat MotorUS$ 9 - 20MOQ: 2 Pieces
-
Custom Electric Small Big High Low Torque Speed Price 3.7v 4.5v 9v 7.4v 12 Volt 12v 48v 24vdc 36v 24v DC BLDC Brushless MotorUS$ 4 - 50MOQ: 2 Pieces
Brand Name
Constar
Place of Origin
Guangdong, China
Model Number
B2440NH2B
Type
Micro Motor
Certification
CE, ROHS
Torque
18.2mNm
Usage
Fan, Home Appliance
Construction
Permanent Magnet
Efficiency
IE 1
Protect Feature
Totally Enclosed
Continuous Current(A)
0.15A
Speed(RPM)
17000rpm
Commutation
Brushless
24v bldc electric motor for micro air pump
| CONSTAR MICROMOTOR | ||
|
|
|
| PRECISION DC CORELESS MOTOR | BRUSHLESS DC MOTOR | SERVO MOTOR |
|
|
|
| GEARMOTOR | STEP MOTOR | MINI CORELESS MOTOR |
1. Applications:precision drives in medical equipment, industrial automation fields
2. Operating Environment:-40~+120°C
3. Characteristics :
The following are our standard products, we also provide customized products and service.
| 1 | Voltage | V | 24 |
| 2 | Terminal resistance | Ω | 2.5 |
| 3 | No-load speed | rpm | 17000 |
| 4 | No-load current | A | 0.15 |
| 5 | Stall torque | mNm | 125.00 |
| 6 | Stall current | A | 9.60 |
| 7 | Nominal torque | mNm | 18.2 |
| 8 | Nominal speed | rpm | 14500 |
| 9 | Nominal current | A | 1.52 |
| 10 | Max. output power | W | 56 |
| 11 | Max. efficiency | % | 76 |
4. Options:Lead wires length, Shaft length, Special coils, Gearheads, Bearing type, Hall sensor, Encoder, Driver

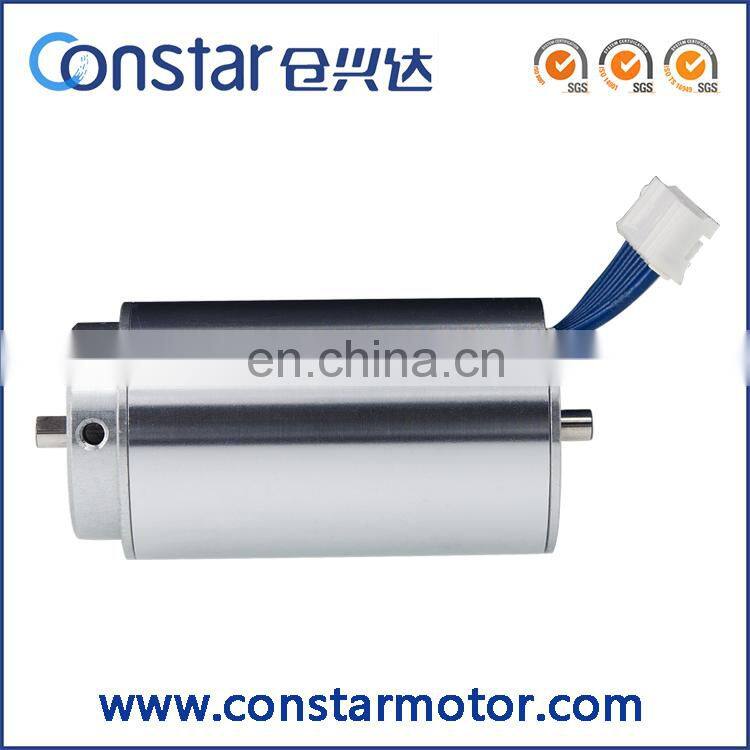

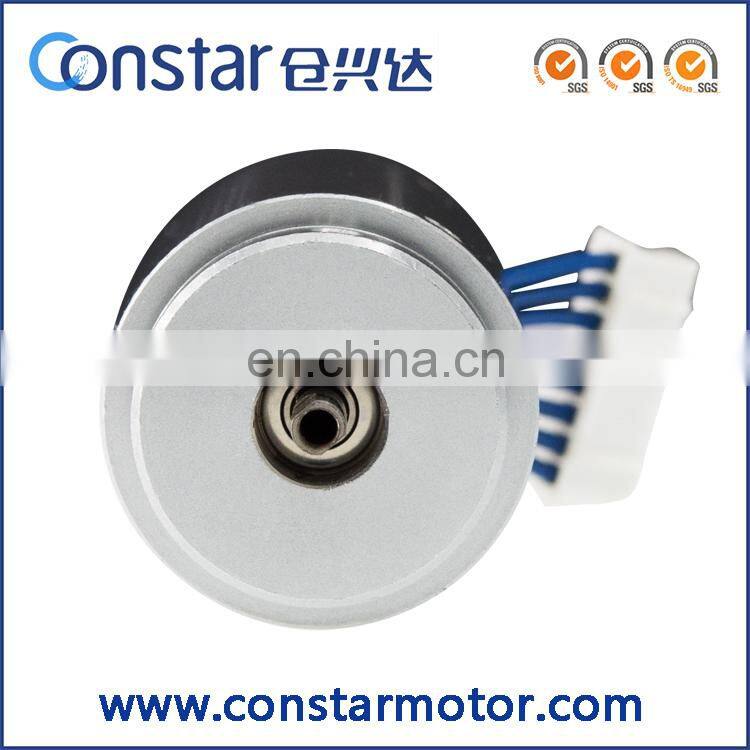

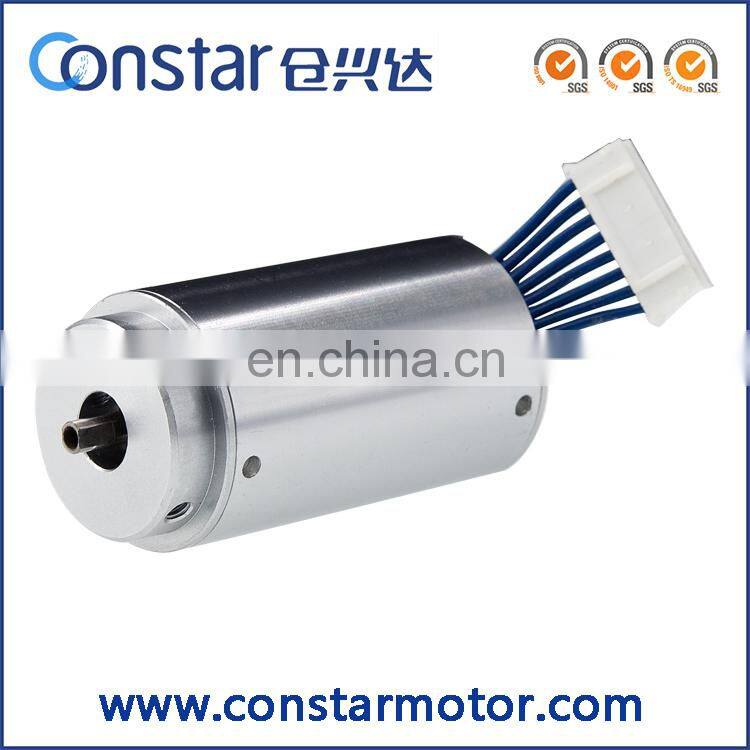

5.Photo:

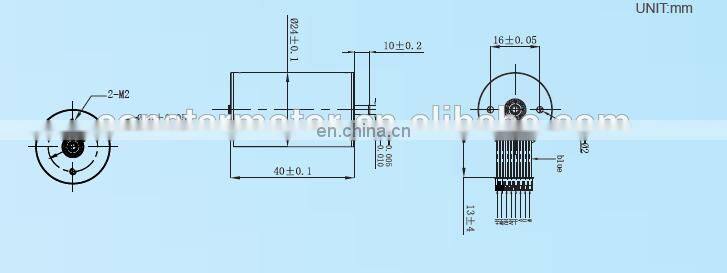

6.Outline:
24v bldc electric motor for micro air pump
