Concrete/Cement/ Civil /Brick Building Material Compressive Strength Testing Machine Price
US$ 6,400 - 6,700
/ Set
1 Set(Min. Order)
- Qingdao Port
- T/T Credit Card
You May Like
-
YES-2000 Concrete Cube Digital Compression Strength Testing Machine
-
Chuanbai 300kn/1000kn/2000kn Hydraulic Press Tester / Concrete Compressive Strength Testing Machine
-
5000N Spring Simple Tensile Strength Compression Strength Test Instrument Digital Display Small Equipment
-
Composite Materials Universal Testing Machine 50KN
-
10kn Spring Compression Testing Machine
-
Shock Absorber Fatigue Tester Computer Display 5KN
Product Details
| Brand Name | Chuanbai | Place of Origin | Shandong, China | |
| Model Number | YAW-2000 |
Product Description
Product Description
Product introduction

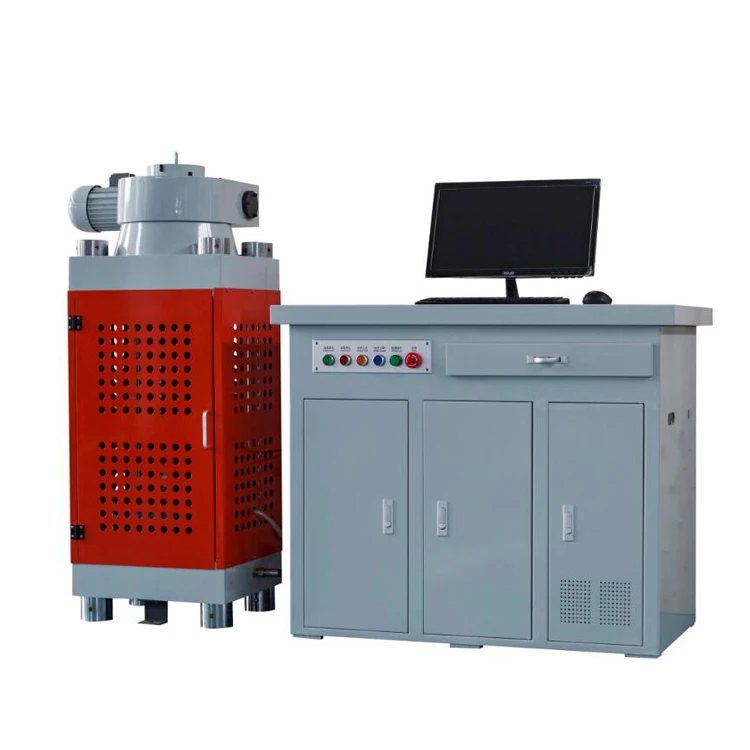

YAW-2000 electro-hydraulic servo pressure testing machine is a high-precision material testing equipment that uses hydraulic power source drive, electro-hydraulic servo control technology, computer data acquisition and processing, and can realize closed-loop control and automatic detection. It is controlled by test host and oil source. (hydraulic power source), measurement and control system, test equipment consists of four parts, the maximum test force is 2000kN, and the test machine accuracy level is better than level 1. The testing machine is a split structure of the main oil source; it is suitable for the compressive test of cement and concrete, and is equipped with appropriate fixtures and measuring devices to meet the tensile test, flexural test and static modulus test of concrete.
Product Specifications
Maximum test force | 2000kN； |
Test machine level | Level 1; |
Test force relative error | Within ±1%; |
Test force measurement range | 1%-100% FS (full scale is not divided) |
Host structure | Four-column frame |
Compressed space: | 320mm; |
Upper platen size | 240mm×240 mm； |
Lower platen size | 300mm×250 mm； |
Mainframe dimensions | 700×430×1350 mm； |
Control cabinet dimensions | 1100×550×900mm； |
Total power | 2.0kW |
Total Weight | About 1090kg; |
Product Highlights

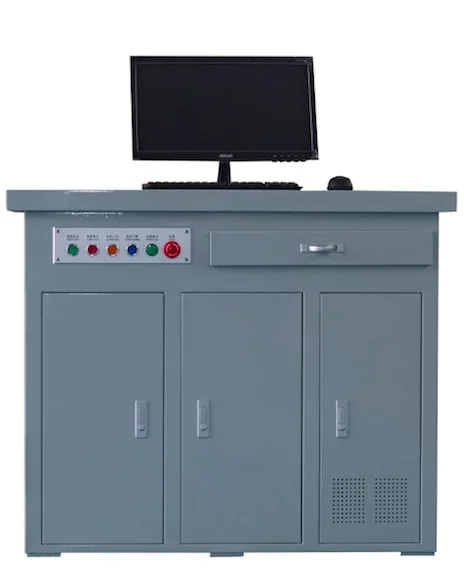

The integral oil source cabinet is composed of hydraulic pump station, oil source control, measurement and control system, computer, etc. The built-in axial piston pump has stable output, low noise, high integration of oil source cabinet, small floor space, and operation. Easy to observe.

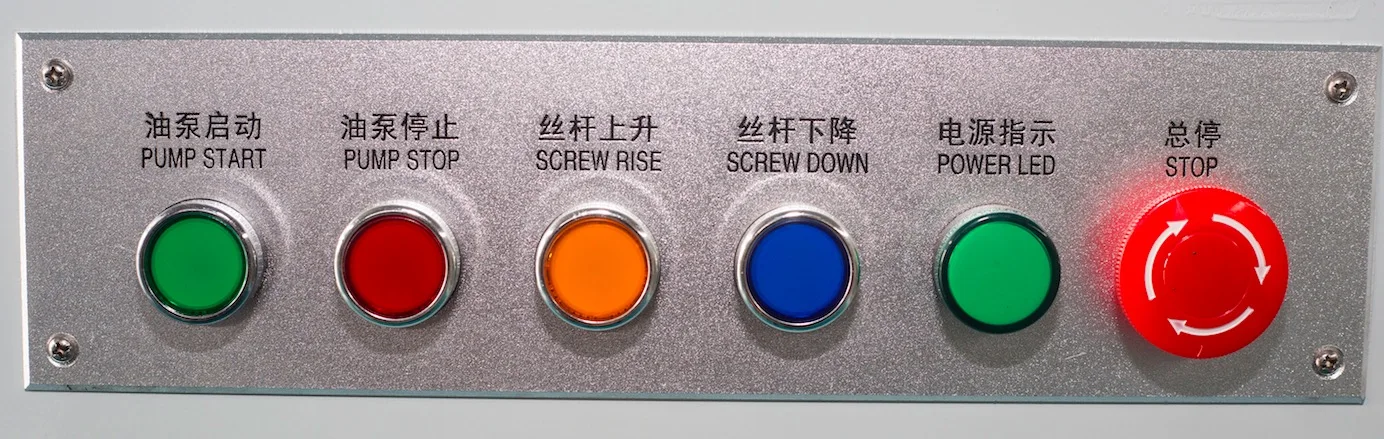

Quick operation buttons: start, stop, rise, fall, emergency stop, easy operation, high safety factor, intuitive and easy to understand

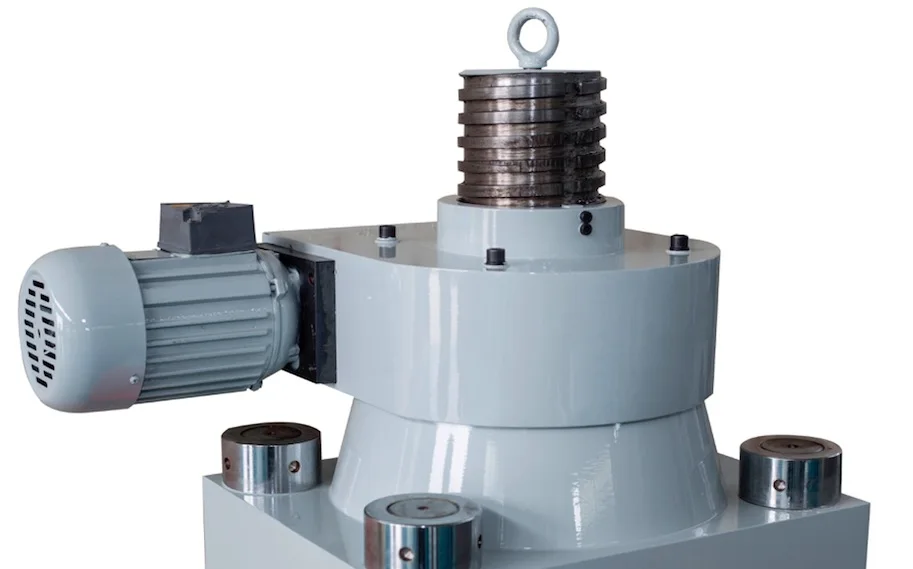

The electric screw rotates to adjust the compression space, which is convenient and quick to operate.

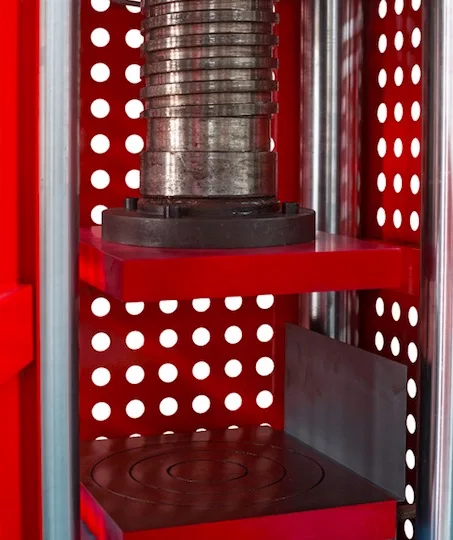

Use high hardness platen and wear safety net
Packing & Delivery
Fumigation-free plywood with fully enclosed wooden box with tray
Company Profile
Jinan Chuanbai Instrument Equipment Co., Ltd, located in Jinan city, Shandong province-the national test machine production base, is a collection of scientific research and development as one of the high-tech production enterprises. We have been producing professional UTM and various Since equipment, the have marketed instruments with a leading position with the hydraulic universal testing machine, electric universal testing Machine, compression testing machine, impact testing machine, fatigue testing machine, torsion series machine, horizontal tensile testing machine and other customized products. And we will always welcome to any enquiry about the equipment on our website , where you can better understand us here
FAQ
Q: Your company is a trading company or a factory?
A: Factory + trade (integration), 12 years of focus on the field of testing instruments. OEM is also acceptable for us.
Q: When will the order be delivered?
A: Usually about 10-28 days. If we have inventory, we can arrange the delivery within 3 days after the retest in the laboratory. Please note that our production delivery time depends on the specific equipment and the quantities.
Q: What about the warranty?
A: 12 months. In addition, we can help you feel free to fix your problem controller, even if it doesn't come from our factory. After the warranty, the professional after-sales service team will provide perfect technical support to help customers Solve the problems encountered when using our products, and deal with customers' problems and complaints in a professional and timely manner.
Q: How about the service and quality of the products?
A: Each equipment must be 100% inspected and tested during transportation and delivery. Product use training, we can send you the video for training to show you how to install and operate. We can arrange engineers to train the operation of the equipment for the You when necessary.We made an amazing reputation in the this field.
