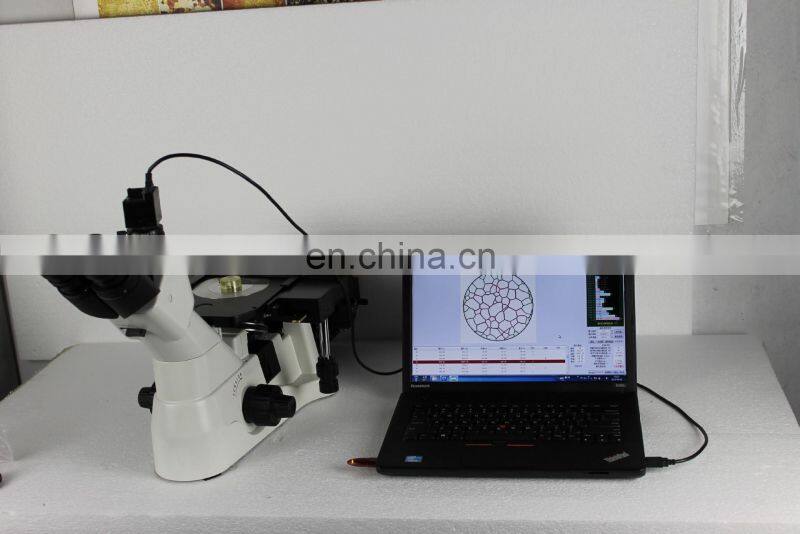

IMAGE3000 Microscope Image Analysis System Metallographic Microscope

System specification

The system is connected to the microscope / stereo microscope / microhardness tester by digital camera to realize high-resolution numerical image of the microscopic image. The photo enters the computer system for storage and printing. The metallographic analysis function is complete; the various parameters of the image are comprehensively measured. ,accurate.

hardware

1 . Digital CCD 3 million pixels, color , 1/2-inch                                                                                          1

2 . Dedicated interface  Connecting microscope / stereo microscope   CCD interface                              1

software

1 . The system is connected to various microscopes, stereo microscopes or microhardness testers through a dedicated optical interface. It is digital CCD- converted to provide high-resolution color metallographic images with a total pixel size of more than 3 megapixels to replace the heavy darkroom. jobs;

2 . The image is quickly transferred to the computer, and the image processing such as brightness and contrast of the image can be adjusted, and the image can be saved in a compressed format;

3 . Percentage measurement of phase content of two-phase or multi-phase structures;

4 . Dimensions and layer depth measurements of various phases;

5 . The ratings of commonly used metallographic organizations such as the grain size ratings of steel and copper can be found in the standard list;

6 . Customized according to various standard ratings proposed by users;

7 . Measurement of any length, arbitrary angle, and arc measurement;

8 . Add any text label on the picture, and attach the scale ruler to the picture. The magnification can always be determined.

9 . Achieve fixed-time printing or print at any magnification
