Fast Delivery High Configuration Total Station Survey Instrument

Hebei Better United Import And Export Co., Ltd.
Fast Delivery High Configuration Total Station Survey Instrument thumbnail-1
Fast Delivery High Configuration Total Station Survey Instrument thumbnail-2
Fast Delivery High Configuration Total Station Survey Instrument photo-1

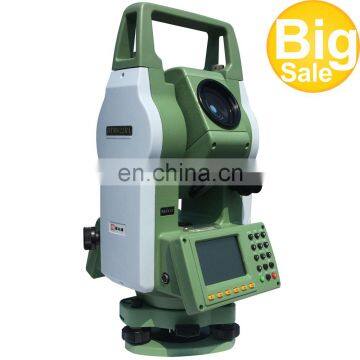

Fast Delivery High Configuration Total Station Survey Instrument photo-2
US$ 1,200 - 2,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
BT
Place of Origin:
Hebei, China
Model Number:
DTM622R4
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name BT
Place of Origin Hebei, China
Model Number DTM622R4

Fast Delivery high configuration total station survey instrument

 Reflectorless Total Station DTM622R

Distance measurement
Max distance (in good weather)Singles prism3.0 Km
Three prisms5.0Km
No-prism400m
  Digital displayMax:  99999999.9999 m    Min.: 0.1 mm
PrecisionNo-prism 5+3ppm,  have-prism 2+2ppm
Unitm/ft for selection
Time for measuringSingle fine measurement 2 sec. tracking 0.8 sec
Number of measurements1~ 99
Meteorologic correctionAutomatic correction of input parameter

Atmospheric refraction and

earth curvature correction

Automatic correction of input parameter, K=0.14
Prism constant correctionAutomatic correction of input parameter
Angle measurement
 Angle measurement methodAbsolute code
Grating disc dia. (horizontal, vertical)79mm
Min. reading displayed1″
Detection methodHorizontal circle: 2 sides
Vertical circle: 2 sides
Precision 2″
Telescope
ImagingRight reading
Barrel length170mm
Objective lens  effective aperture48mm
Magnification30×
Viewing angle1°30′
Resolution3.5″
Min. focus distance1.5m
Automatic vertical compensator
SystemSingle axis, double axis liquid electronic sensor compensation
Work range ±3′
Precision ±3 ″
Level
Plate level20″/2mm, 30″/2mm
Circular level8′/2mm
Optical plummet
ImagingRight reading
Magnification3×
  Focusing range0.5m~∝
 Viewing angle5°
Display
TypeTwo sides, graphically
Data transmission
InterfaceRS-232C
Battery
Power supplyRechargeable Ni-MH battery, rechargeable lithium battery
Volt.Lithium battery: DC7.6V; Ni-MH battery: DC7.2V
Continuous operation time8 hours
Size and weight
Size174×207×383mm
Weight6.8kg

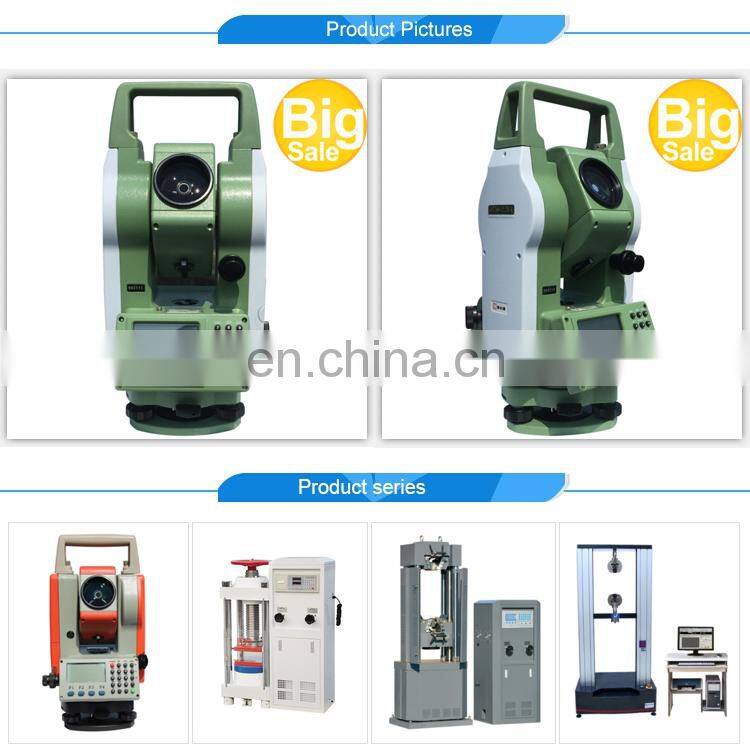

 Fast Delivery high configuration total station survey instrument

Fast Delivery high configuration total station survey instrumentFast Delivery high configuration total station survey instrumentFast Delivery high configuration total station survey instrument
